About this replacement

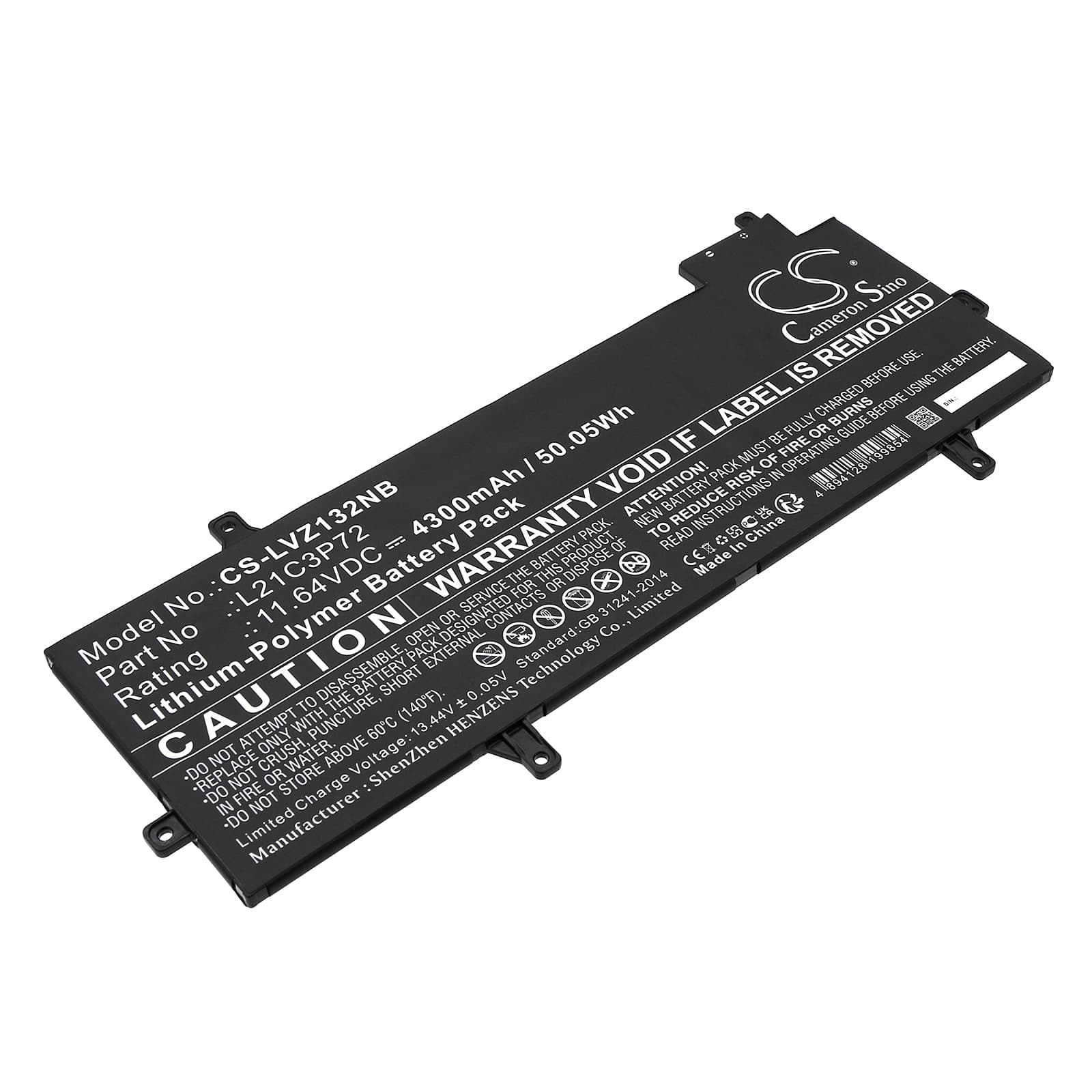

Lenovo ThinkPad Z13 Gen 1 — 11.64V Li-Polymer Replacement Battery (L21C3P72)
This is an 11.64V, 4300mAh (50.05Wh) Li-Polymer battery for the Lenovo ThinkPad Z13 Gen 1 series. It replaces OEM part numbers L21C3P72, L21B3P71, L21M3P72, and related variants. Compatible with over 160 ThinkPad Z13 Gen 1 configurations, including the 21D20023GP and 21D2003LVN.
- ThinkPad Z13 Gen 1 compatibility: All Z13 Gen 1 units share a common 11.64V three-cell architecture with the same connector pinout and BMS handshake protocol. The OEM part numbers L21C3P72, L21B3P71, and L21M3P72 are interchangeable across board revisions — Lenovo varied the suffix to track production runs, not electrical differences.
- Bench tested on actual hardware: We ran this cell on a Z13 Gen 1 board and confirmed the BMS completed full charge without tripping protection, BIOS detected the battery on first boot, and the fuel gauge IC initialised within two cycles.
- Post-install calibration on the ThinkPad Z13: After fitting this battery, run the system down to automatic hibernate-cutoff under normal load, then charge uninterrupted to 100%. This resets the BIOS battery learn cycle and clears the inaccurate health warning that appears after every cell swap.
BIOS reporting poor battery health immediately after replacement
When the Z13 Gen 1 reads a new cell for the first time, the embedded controller compares live charge data against stored EEPROM values from the previous battery. The old cell's degraded capacity figures are still in memory, so the health algorithm flags the mismatch as a fault rather than recognising a fresh cell. Running one complete discharge-to-hibernate followed by an uninterrupted charge to 100% forces the BIOS learn cycle to rewrite those EEPROM reference values. After two full cycles, the health status corrects itself and the warning clears.
ThinkPad Z13 shutting down at 20–30% charge shown
This happens when the cell voltage drops below the BMS cutoff threshold under combined CPU and display load before the fuel gauge reaches zero. An aged or uncalibrated cell hits a steep voltage cliff at higher reported percentages, and the board shuts down to protect the cell rather than continuing to draw current. The fuel gauge IC on the Z13 Gen 1 needs two to three full discharge-charge cycles against the new cell's actual chemistry before its estimates track accurately. After calibration cycles, the shutdown point should move back below 5% — if it does not, check that the BIOS charge threshold setting in Vantage is not artificially capping discharge at 20%.
