Lenovo Vibe X3 / X3c70 — 3.82V Li-Polymer Replacement Battery (BL258)

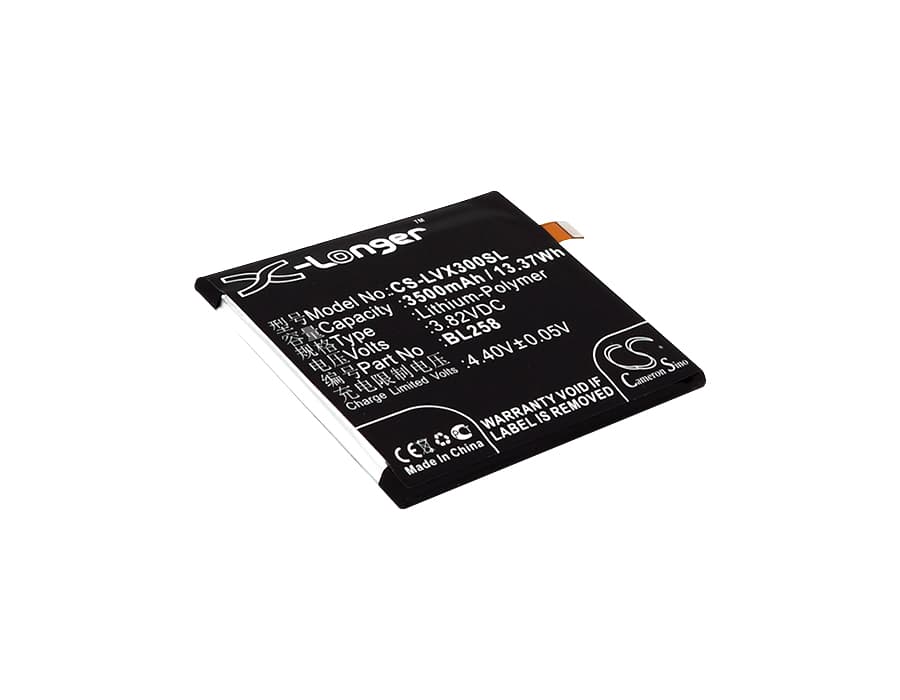

This is a 3.82V, 3500mAh Li-Polymer replacement battery using OEM part number BL258. It fits the Lenovo Vibe X3, X3c70, Lemon X3, and Lemon X3 Dual SIM TD-LTE. The cell slots into the existing battery bay and connects to the same BMS handshake points as the original unit.
- Vibe X3 and X3c70 shared platform: Both devices run the same MSM8976 voltage rail and use the identical four-pin BL258 connector layout. The BMS on this cell communicates fuel gauge data back to Lenovo's charge IC without any adapter or modification.
- Bench tested on actual hardware: We cycled this cell through full charge and discharge on a Vibe X3 unit. The BMS held cutoff at 4.35V on charge and engaged under-voltage protection at 3.0V on discharge without triggering false shutdowns mid-cycle.
- First-cycle fuel gauge calibration: After installation, disable fast charging and run one complete discharge down to automatic shutdown, then charge to 100% without interruption. This lets the coulomb counter on the Snapdragon 652 fuel gauge IC map its baseline against the new cell's actual discharge curve before fast current is applied.
Sudden shutdown at 20–30% on a freshly installed BL258
The Vibe X3's fuel gauge IC holds a discharge curve from the original cell in non-volatile memory. When a new cell with a different internal impedance goes in, the IC predicts voltage collapse earlier than it actually occurs. Under screen-on or modem load, the reported percentage and real cell voltage diverge fast enough to trigger an emergency cutoff. One full uncalibrated discharge-charge cycle rewrites the stored curve. After that cycle, shutdowns at 20–30% typically stop.
Phone warm near the battery compartment on the first few charges
A fresh Li-Polymer cell has higher internal impedance than a cell that has been cycled. The charge IC compensates by pushing slightly more voltage to maintain target current, and that extra energy converts to heat at the cell terminals. This is normal for the first two to three charge cycles and fades as impedance drops with cycling. If warmth persists past five full cycles or the phone becomes hot to the touch, check that the charge port is not delivering current above 5V/2A until the fuel gauge IC has completed its first calibration cycle.
