About this replacement

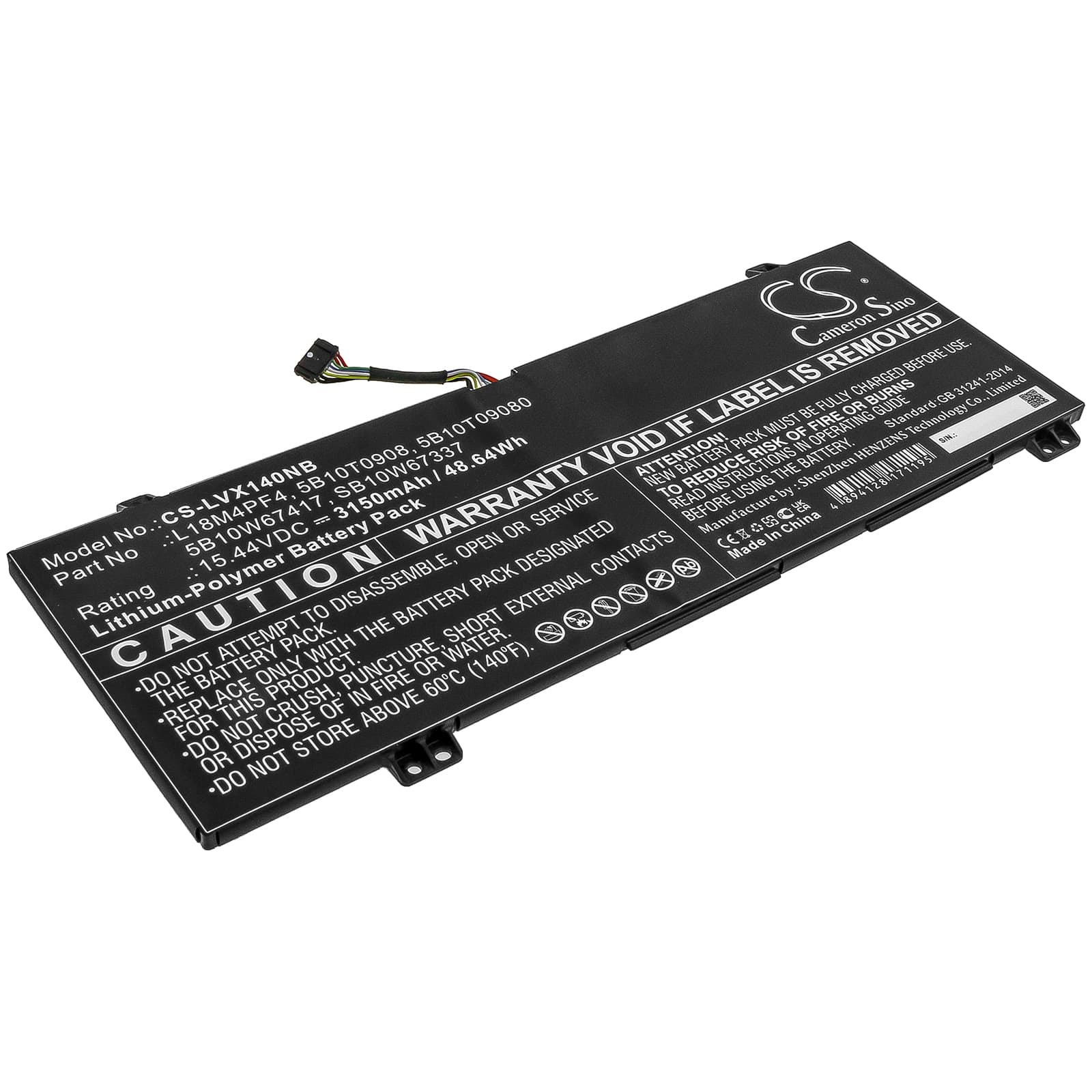

Lenovo Xiaoxin Air 14 2019 / IdeaPad S540-14 Series — 15.44V Li-Polymer Replacement Battery (L18M4PF4)
This is a 15.44V, 3150mAh (48.64Wh) lithium-polymer battery for the Lenovo Xiaoxin Air 14 2019, IdeaPad S540-14IWL, and IdeaPad S540-14API. It replaces OEM part numbers L18M4PF4, 5B10T09080, and SB10W67337, among others. It fits the same connector and BMS handshake as the original cell.
- Xiaoxin Air 14 and S540-14 compatibility: These models share the same 15.44V four-cell Li-polymer architecture, identical connector pinout, and the same BMS communication protocol over the SMBus line — which is why one cell part number covers the full group.
- Bench tested on actual hardware: We ran this cell on an IdeaPad S540-14IWL. The BMS handshook correctly on first connect, BIOS detected the battery without errors, and charge current stepped down normally at the 4.35V/cell threshold.
- First-cycle calibration on Lenovo firmware: After fitting this cell, run one full discharge until the laptop hibernates, then charge uninterrupted to 100%. This forces the BIOS battery learn cycle to reset against the new cell's actual capacity and clears the inaccurate health warning that appears after every cell swap.
Why the S540-14 shuts down at 20–30% remaining after a battery swap
The fuel gauge IC on the S540-14 board stores a learned discharge curve from the old, degraded cell. When a new cell with different internal resistance goes in, the IC's model no longer matches the actual voltage behaviour. At around 20–30% shown, the new cell's voltage drops faster than the stored curve predicts under combined CPU and display load, and the system interprets that as an imminent cutoff. Two or three full discharge-to-hibernate cycles recalibrate the IC against the new cell's real curve and resolve the premature shutdown.
BIOS reporting battery health as "poor" or "replace soon" after fitting a new cell
Lenovo's BIOS reads the EEPROM data embedded in the battery's BMS chip, which includes cycle count, design capacity, and a health flag. A new cell ships with factory EEPROM defaults that occasionally trigger the health warning on first boot — the BIOS compares rated Wh against what the fuel gauge IC has learned and flags a mismatch. This is not a fault with the cell. Run the Lenovo Vantage battery gauge reset, or complete one full discharge-to-hibernate cycle followed by an uninterrupted full charge to clear the flag.
