About this replacement

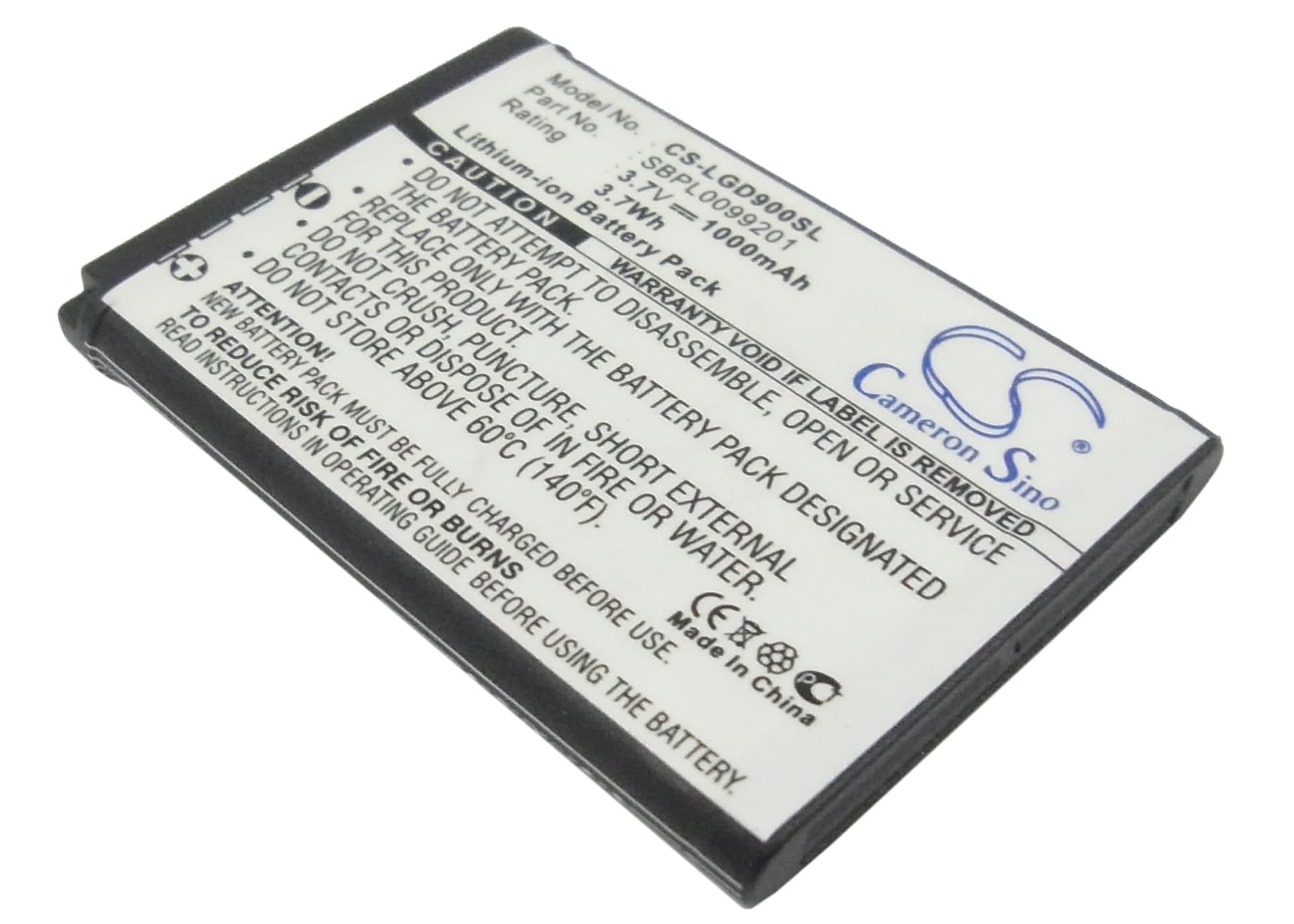

LG GD900 Crystal / BL40 Chocolate — 3.7V Li-ion Replacement Battery (LGIP-520N)
This is a 3.7V, 1000mAh Li-ion cell built to the LGIP-520N spec. It fits the LG GD900, GD900 Crystal, and BL40 Chocolate. Voltage, connector pitch, and BMS handshake all match the original LG specification.
- GD900, GD900 Crystal, BL40 Chocolate compatibility: All three models share the same 3.7V single-cell architecture, connector footprint, and charge IC protocol. One cell revision covers the full range without modification.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on the GD900 platform. The BMS accepted charge at the correct 4.2V termination voltage and the protection circuit tripped cleanly at the low-voltage cutoff threshold.
- Fuel gauge recalibration on first cycle: After fitting this cell, run one complete discharge to automatic shutdown, then charge uninterrupted to 100% before normal use. The GD900's fuel gauge IC was calibrated to the original cell's discharge curve — one full cycle resets that reference against the new cell so percentage readings stay accurate.
Sudden shutdown at 20–30% on the GD900 after a cell swap
The GD900's processor and modem pull current spikes that a degraded or uncalibrated cell cannot sustain. When cell voltage drops below roughly 3.5V under that load, the BMS cuts output to protect the cell — even if the fuel gauge still shows 20–30% remaining. This is a voltage sag issue, not a capacity issue. A new cell with low internal resistance handles the spike without the voltage cliff that triggers the cutoff.
Phone not powering on after the replacement cell sat in storage
Li-ion cells self-discharge during storage. If this cell drops below approximately 2.5V per cell, the BMS enters lockout mode and refuses to supply current — the phone appears completely dead. Connect the phone to a wall charger rather than a USB port, since wall chargers supply enough seed current to wake the BMS from lockout. Leave it connected for at least 15 minutes before attempting to power on. Once the cell recovers above 3.0V, the BMS releases and the phone boots normally.
