About this replacement

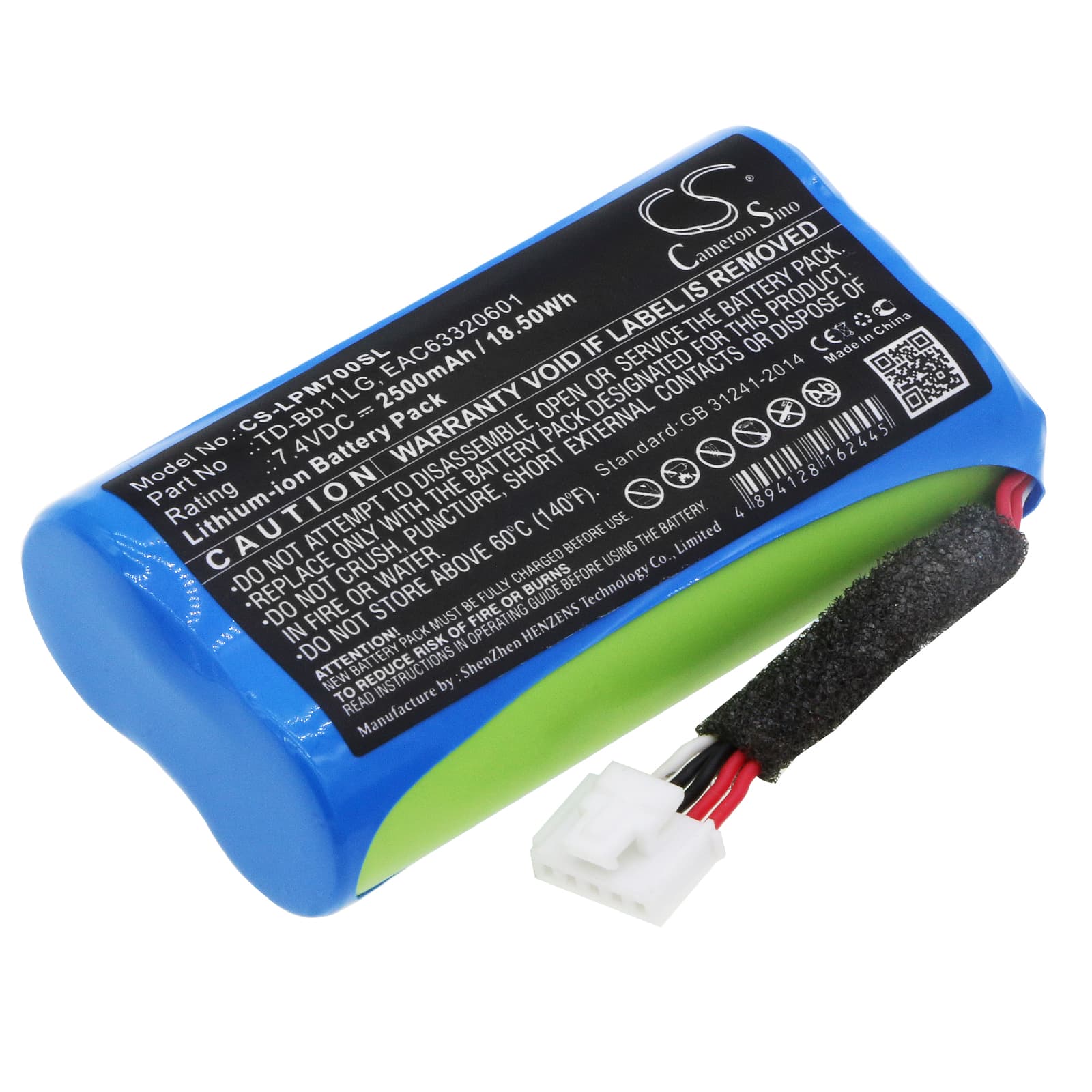

LG Music Flow P7 / NP7550 — 7.4V Li-ion Replacement Battery (TD-Bb11LG)
This is a 7.4V, 2500mAh (18.5Wh) Li-ion replacement battery for the LG Music Flow P7 portable Bluetooth speaker. It also fits the NP7550, PJ9, and PJS9W. It slots in when the original cell no longer holds charge or drops unexpectedly during playback.
- Music Flow P7, NP7550, PJ9 and PJS9W compatibility: These models share the same 7.4V cell format, connector pinout, and BMS communication protocol — the pack reports state-of-charge to the speaker's fuel gauge IC the same way the OEM unit does. OEM part numbers TD-Bb11LG, EAC63320601, and EAC63918901 all cross to this pack.
- Bench tested on actual hardware: We ran this pack through charge and discharge cycles on the P7 platform. The BMS handshake completed correctly, the fuel gauge tracked accurately from 100% down to the low-battery cutoff, and the protection circuit tripped cleanly at the expected undervoltage threshold.
- Monthly discharge cycle on the P7: Let the speaker run down below 20% at least once a month before recharging. The P7 is typically left docked or plugged in between uses — constant shallow top-off cycles cause fuel gauge drift and accelerate capacity fade in the Li-ion cell over time.
Capacity fade from keeping the P7 plugged in between sessions
The Music Flow P7 sees a lot of desk-top use where it stays connected to USB power for days at a time. Shallow cycling — charging from 70% back to 100% repeatedly — stresses the Li-ion cell and compresses the usable voltage window faster than full cycles do. Over several months, the cell's actual capacity drops while the fuel gauge still reads full. A monthly full discharge forces the gauge IC to recalibrate against the real cell state.
Audio cutting or distorting before the battery indicator reaches empty
At higher playback volumes, the amplifier and Bluetooth radio draw current simultaneously, causing a voltage sag across the cell. If the cell is aged or partially discharged, that sag can push the pack voltage below the amplifier's minimum rail — the speaker clips, crackles, or cuts out even though the indicator still shows charge remaining. Fitting a fresh cell with a full-capacity 2500mAh pack raises the voltage floor under that combined load. Charge the replacement fully before the first high-volume session and confirm the speaker holds steady output at above 7.0V under load.
