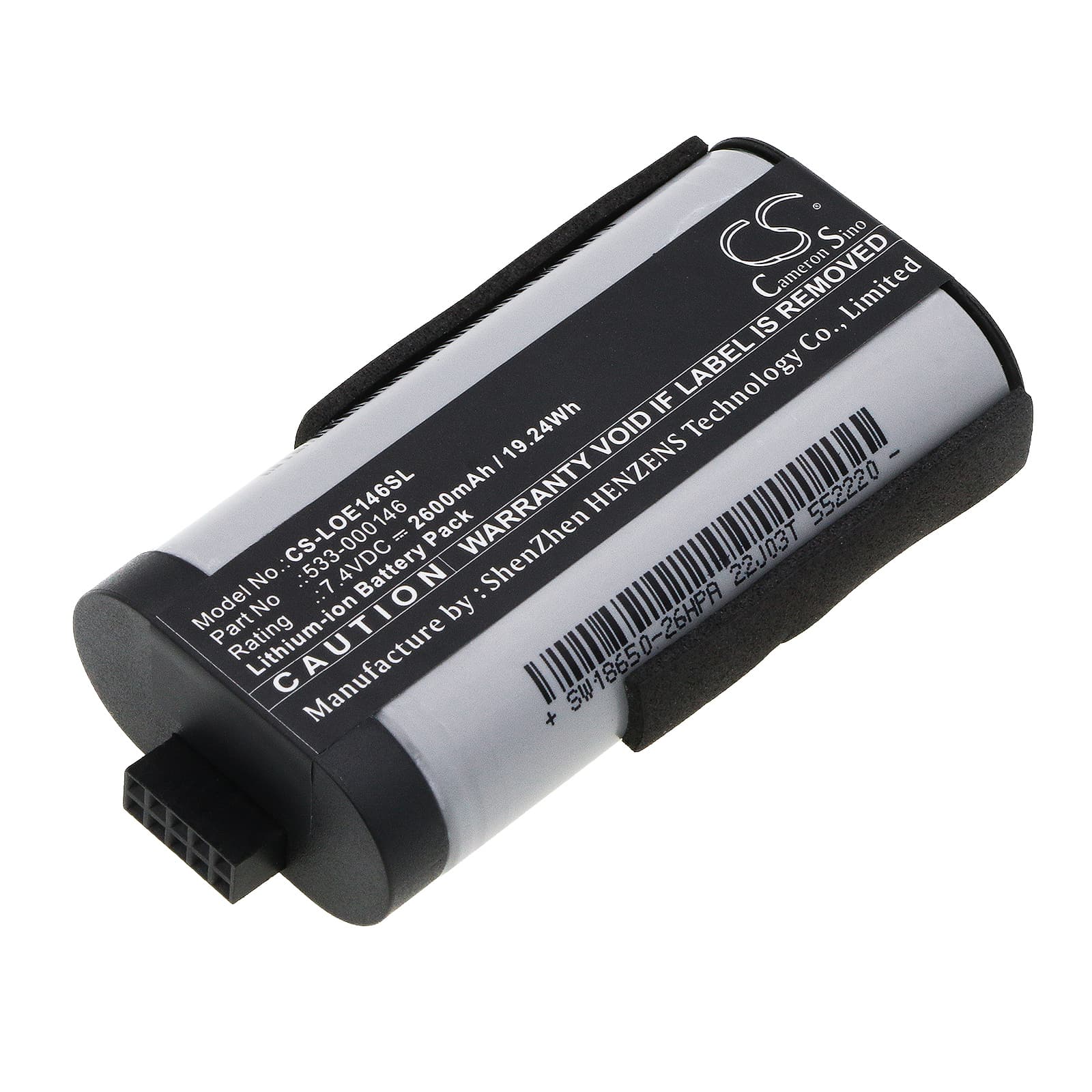

Logitech Ultimate Ears Megaboom 3 — 7.4V Li-ion Replacement Battery (533-000146)
This 7.4V, 2600mAh Li-ion battery replaces the original pack in the Logitech Ultimate Ears Megaboom 3 and compatible models including 984-001362 and 084-000845. It matches the OEM cell dimensions at 78.40 × 40.40 × 19.00mm and slots into the same battery cavity without modification. Voltage and capacity align directly with the original Logitech specification.
- Megaboom 3 platform fit: The Megaboom 3 and its variant SKUs share the same battery bay geometry, connector pinout, and BMS handshake protocol. One replacement cell covers the full compatible range listed above without adapter cables or firmware changes.
- Bench tested on actual hardware: We ran this pack through full charge and discharge cycles on the Megaboom 3. The BMS accepted the cell without fault codes, balanced the cells correctly, and the fuel gauge tracked accurately from 100% down to the low-battery cutoff.
- Monthly discharge discipline for Megaboom 3 users: If this speaker sits on your desk charging between sessions, let it drop below 20% at least once a month before plugging back in. Constant top-off charging without a full discharge cycle causes fuel gauge drift and accelerates capacity fade on the Li-ion cell inside.
Audio distorting before the battery indicator reaches empty
When a Li-ion cell ages, its internal resistance climbs. The Megaboom 3 amplifier pulls a sharp current spike at high volume, and a high-resistance cell cannot sustain the voltage rail under that load. The terminal voltage sags below the amplifier's clean-operating threshold before the fuel gauge reads zero — so you hear clipping and distortion while the indicator still shows charge remaining. Replacing the cell with a fresh 7.4V pack restores the voltage headroom the amplifier needs at peak draw.
Speaker won't wake from USB charge after sitting unused for weeks
A deeply discharged Li-ion pack can fall below the minimum acceptance voltage for USB-C PD negotiation — typically around 2.5V per cell. When that happens, the charger cannot initiate a handshake and the speaker appears completely dead on the cable. Try a different USB-C cable and adapter rated at 5V/1A minimum, hold the power button for 10 seconds while connected, and give it 30 minutes before checking for a charging indicator. If the cell has not self-discharged past the BMS recovery threshold, it will trickle-charge back up to a functional voltage.
