About this replacement

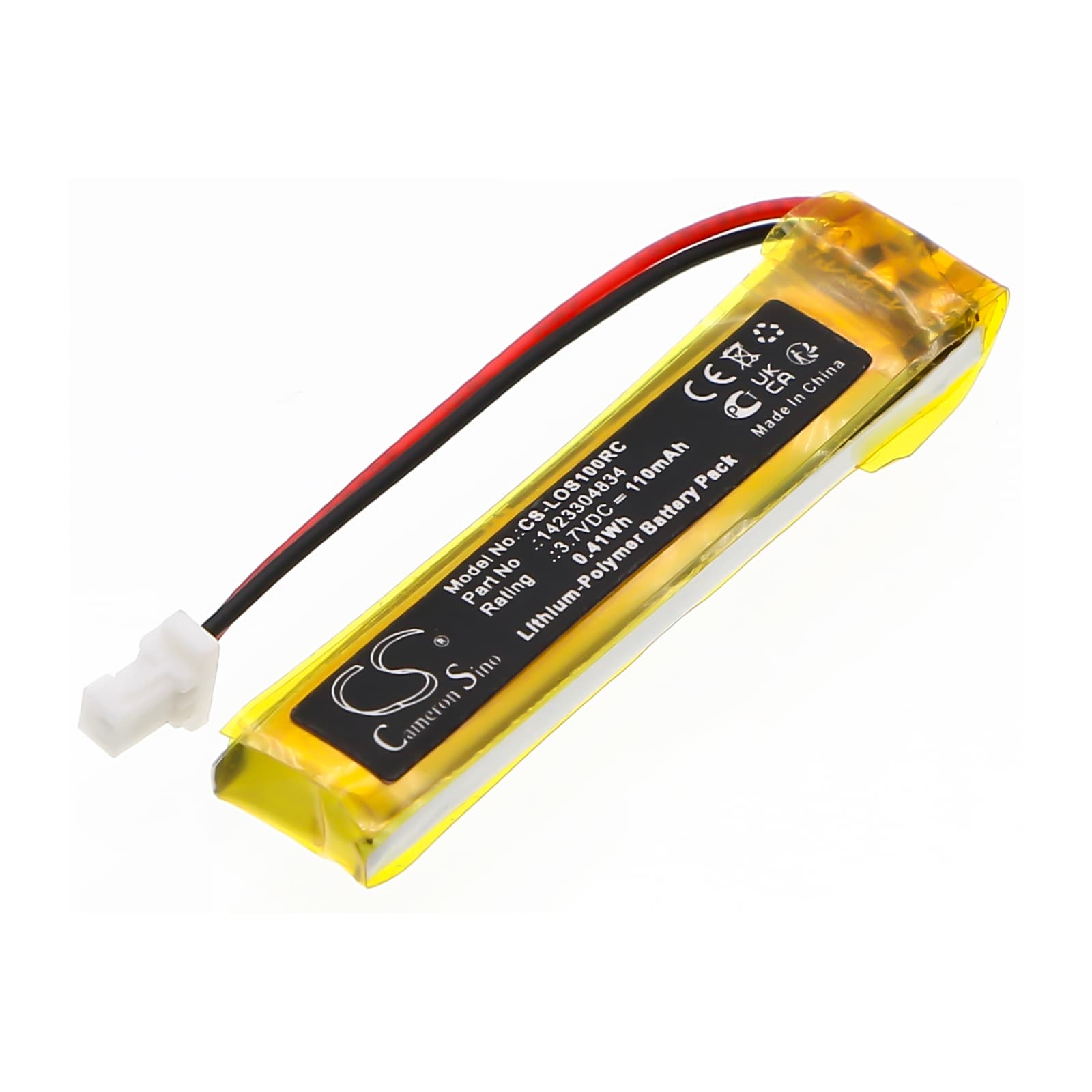

Logitech Spotlight Presentation Remote — 3.7V Li-Polymer Replacement Battery (1423304834)
This 3.7V, 110mAh Li-Polymer battery is a direct replacement for the Logitech Spotlight Presentation Remote. It fits the internal rechargeable cell that powers the remote's slide control, spotlight highlight, and timer functions. When the original cell degrades, charge cycles shorten and the remote may cut out mid-presentation.
- Spotlight Remote platform fit: The Spotlight uses a single compact Li-Polymer cell — part number 1423304834 — that integrates directly with the onboard charge circuit. The cell's 3.7V nominal voltage matches the USB-C charging path and the BLE radio draw without requiring a step-down stage.
- Bench tested on actual hardware: We ran this cell through the Spotlight's charge cycle via USB-C and confirmed the BMS accepted the cell without fault flags. The protection circuit responded correctly to both charge termination and low-voltage cutoff events.
- USB-C charge behaviour after cell swap: After replacing the internal cell, plug the remote into USB-C before first use. The charge controller needs to read the new cell's resting voltage to set its charge curve correctly — powering it on before that initial charge can cause the indicator to misreport battery level.
Why the Spotlight remote cuts out during a live presentation
The Spotlight's BLE radio draws a burst of current each time a button is pressed to transmit a command. As the internal Li-Polymer cell ages, its internal resistance rises — enough that a single button press can cause a voltage sag that trips the low-voltage protection circuit. The remote appears to power off or freeze mid-use, then recovers after a few seconds. This is a cell failure, not a pairing issue. A fresh 110mAh cell at full charge resolves the sag at source.
Battery percentage stuck at 100% or dropping suddenly to 0%
The Spotlight reports battery level to the Logitech Presentation software via BLE, but the reading is based on the charge controller's calibration data for the original cell. After a cell replacement, that calibration is out of sync. The remote may report full charge for days, then jump to empty without warning. To re-calibrate, fully charge the remote until the LED confirms charge complete, then run it down to automatic cutoff — one full discharge cycle resets the fuel gauge reference points to the new cell's actual capacity.
