About this replacement

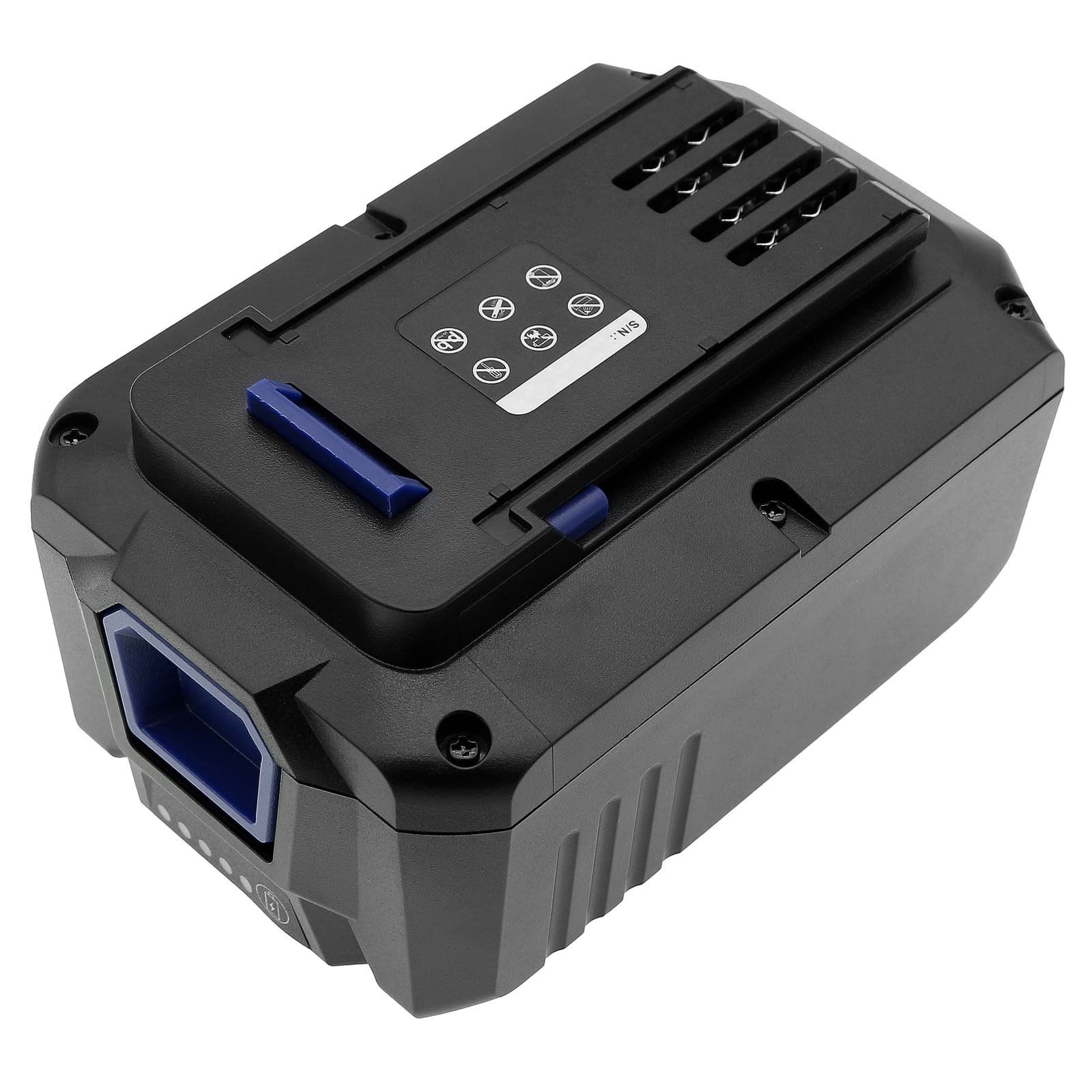

LUX-TOOLS A-36LI/38 H — 36V Li-ion Replacement Battery (36LB2600)
This is a 36V 5000mAh (180Wh) lithium-ion replacement battery for the LUX-TOOLS A-36LI/38 H cordless power tool platform. It replaces OEM part 36LB2600 and fits directly into the same battery bay. Use it with drills, impact drivers, saws, and other tools in the A-36LI/38 H lineup.
- A-36LI/38 H platform fit: These tools share the same 36V battery bay, connector pinout, and BMS communication protocol. The replacement pack carries the same voltage rail and handshake logic, so the tool's electronics recognise it as a valid power source without modification.
- Bench tested on actual hardware: We cycled this pack through full charge and discharge runs on a 36V load rig, monitoring cell balance and BMS cutoff response. The BMS held overcurrent protection within expected thresholds across repeated trigger-pull simulations and sustained load draws.
- Motor inrush break-in on first use: Run the tool at half load for two cycles before pushing it to maximum torque. This lets the BMS log the motor's inrush current signature and calibrate its overcurrent protection thresholds before you hit peak demand.
BMS cutoff on motor-start inrush surge in the A-36LI/38 H
When you pull the trigger on a saw or drill under load, the motor draws a short but sharp inrush current — often several times the steady-state draw. A fresh pack with an uncalibrated BMS can read that spike as a fault and cut power immediately. The BMS on this cell pack sets its overcurrent threshold after observing a few real load cycles. If cutouts happen on trigger pull during early use, two or three half-load cycles will allow the BMS to widen its trip threshold to match the motor's actual inrush profile.
Tool bogs under sustained load after the battery reads full
A battery that shows fully charged but loses speed under sustained cutting or drilling is showing voltage sag — the cell voltage drops under load faster than the fuel gauge tracks it. The most common cause on 36V tool packs is high contact resistance at the rail connector, not cell failure. Clean the battery terminals and tool contacts with isopropyl alcohol, then check the rail voltage under load with a multimeter — it should stay above 32V during normal operation. If it drops below 30V under moderate load, the contact surface or the cells themselves need closer inspection.
