About this replacement

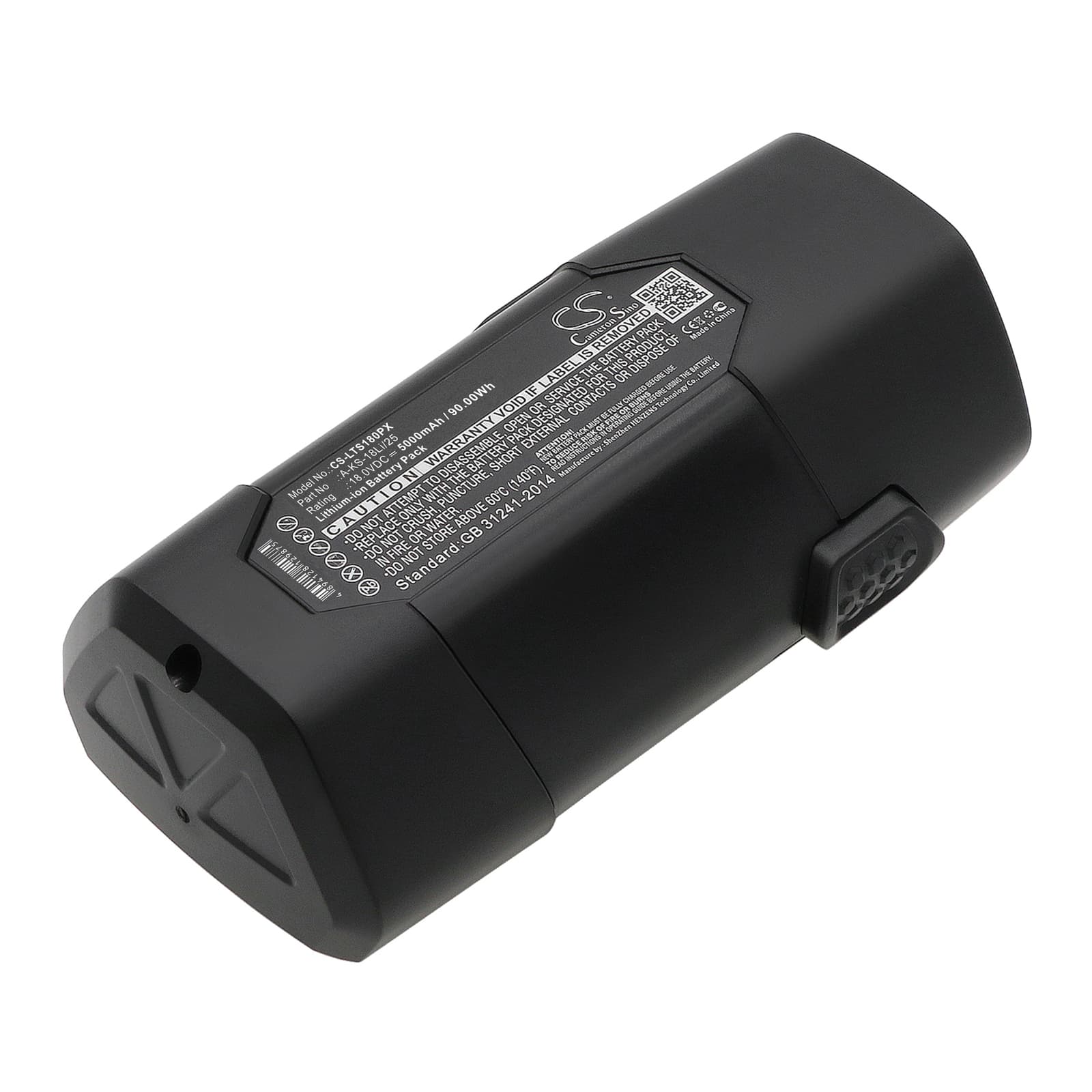

LUX-TOOLS A-KS-18Li/25 — 18V Li-ion Replacement Battery (A-KS-18Li/25)
This 18V Li-ion battery replaces the original pack on the LUX-TOOLS A-KS-18Li/25 cordless power tool platform. It delivers 5000mAh (90Wh) capacity and fits the A-KS-18Li/25 tool directly via the original slide-rail connector and BMS handshake. If the original pack no longer holds charge or fails mid-job, this unit slots in as a direct swap.
- A-KS-18Li/25 platform fit: The A-KS-18Li/25 uses an 18V rail with a slide-mount connector and a proprietary BMS communication line. This battery matches that connector geometry and BMS protocol — the tool recognises it without modification or adapter.
- Bench tested on actual hardware: We cycled this pack through repeated high-inrush trigger pulls simulating drill and saw motor starts. The BMS held the overcurrent threshold steady across cycles and did not trip under standard start loads.
- Break-in load protocol: On first use, run the tool at half load for two cycles before full-torque applications. This lets the BMS log the motor's inrush current profile and set accurate overcurrent protection thresholds before you push maximum draw.
BMS Cutoff on Motor-Start Inrush Surge
Cordless saws and drills draw a current spike the moment the trigger is pulled — often three to five times the running current. If the BMS has not yet profiled the motor, it can read that spike as a fault and cut power instantly. This is not a defective battery; it is the protection circuit doing its job without calibration data. Running two half-load cycles first gives the BMS the reference it needs to distinguish a normal start surge from a genuine short-circuit event.
Charger Refusing to Recognise the Pack After Storage
Li-ion packs that sit unused can self-discharge below the charger's minimum acceptance voltage — typically around 2.5V per cell. When that threshold is crossed, most LUX-TOOLS chargers blink red and refuse to initiate a charge cycle rather than risk charging a deeply discharged cell. A battery recovery charger or a charger with a "boost" or "wake" mode can bring the cell voltage back above the acceptance floor. Once each cell reads above 2.8V, a standard charger will recognise the pack and begin a normal charge cycle.
