About this replacement

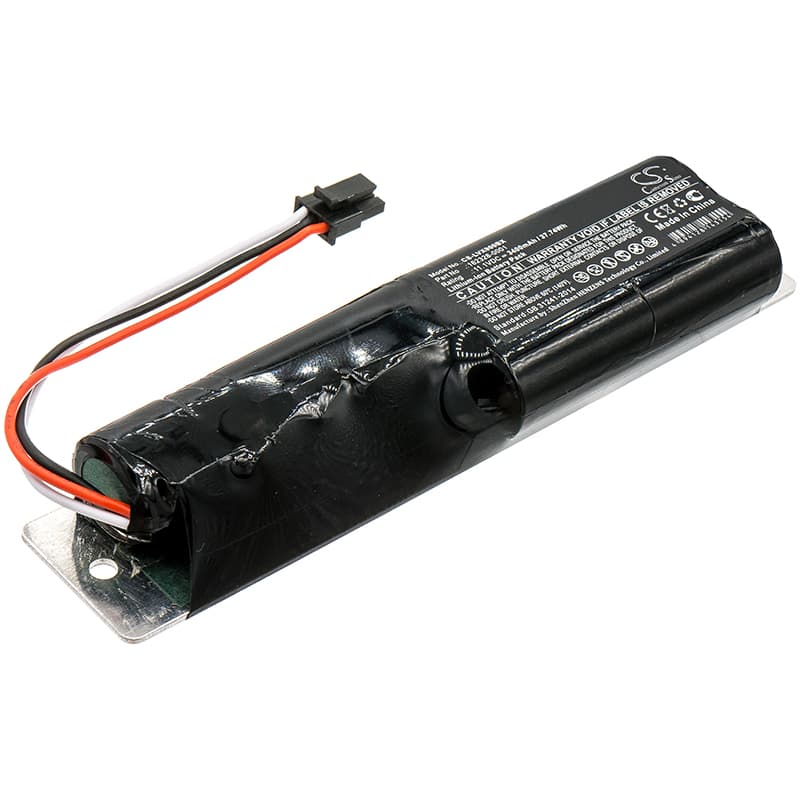

LXE VX9 — 11.1V Li-ion Replacement Battery (162328-0001)
This 11.1V, 3400mAh lithium-ion battery replaces the OEM pack in the LXE VX9 mobile data terminal. The VX9 is a handheld barcode scanner used in warehouse and retail environments for inventory and point-of-sale tasks. It matches the original voltage, capacity, and connector spec of part number 162328-0001.
- VX9 platform fit: The VX9 runs an 11.1V three-cell Li-ion configuration with a BMS that checks cell balance and pack ID at power-on. This replacement meets that handshake — the terminal boots without a battery fault flag.
- Bench tested on actual hardware: We cycled this pack through repeated scan-trigger and wireless polling loads to confirm the BMS held stable. Voltage under combined radio and imager draw stayed within the VX9's operating window without triggering low-voltage cutoff.
- First-shift preparation: After installing this pack, seat the VX9 in its cradle and complete a full charge cycle before starting work. The scan trigger draws its highest inrush current when the cell is near minimum — a fully charged pack prevents false BMS trips during the first pick-and-pack shift.
Cradle showing a charging error on a new pack
Charging errors on a new pack almost always come down to contact resistance at the dock pins, not a fault in the battery or charger. Debris, oxidation, or a slight misalignment between the pack and cradle contacts raises resistance enough for the charger to flag the connection. Wipe the gold contacts on both the pack and the cradle with a dry cloth, then reseat the VX9 firmly until it clicks. If the error clears, the pack was not fully seated — the cradle expects contact resistance below roughly 100mΩ to begin a charge cycle.
Scanner losing wireless connection during rapid scan bursts
During a fast scan burst, the VX9 draws current simultaneously from the imager and the wireless radio. If the pack voltage sags too far under that combined load, the radio drops off first — it has a lower minimum operating voltage than the imager. This appears as a connection drop mid-shift rather than a total shutdown. Check the pack voltage after a burst: if it reads below 10.5V under load, the cells are fatigued and the pack needs replacement. A fresh 3400mAh pack at full charge holds voltage above 11.0V through normal burst cycles.
