About this replacement

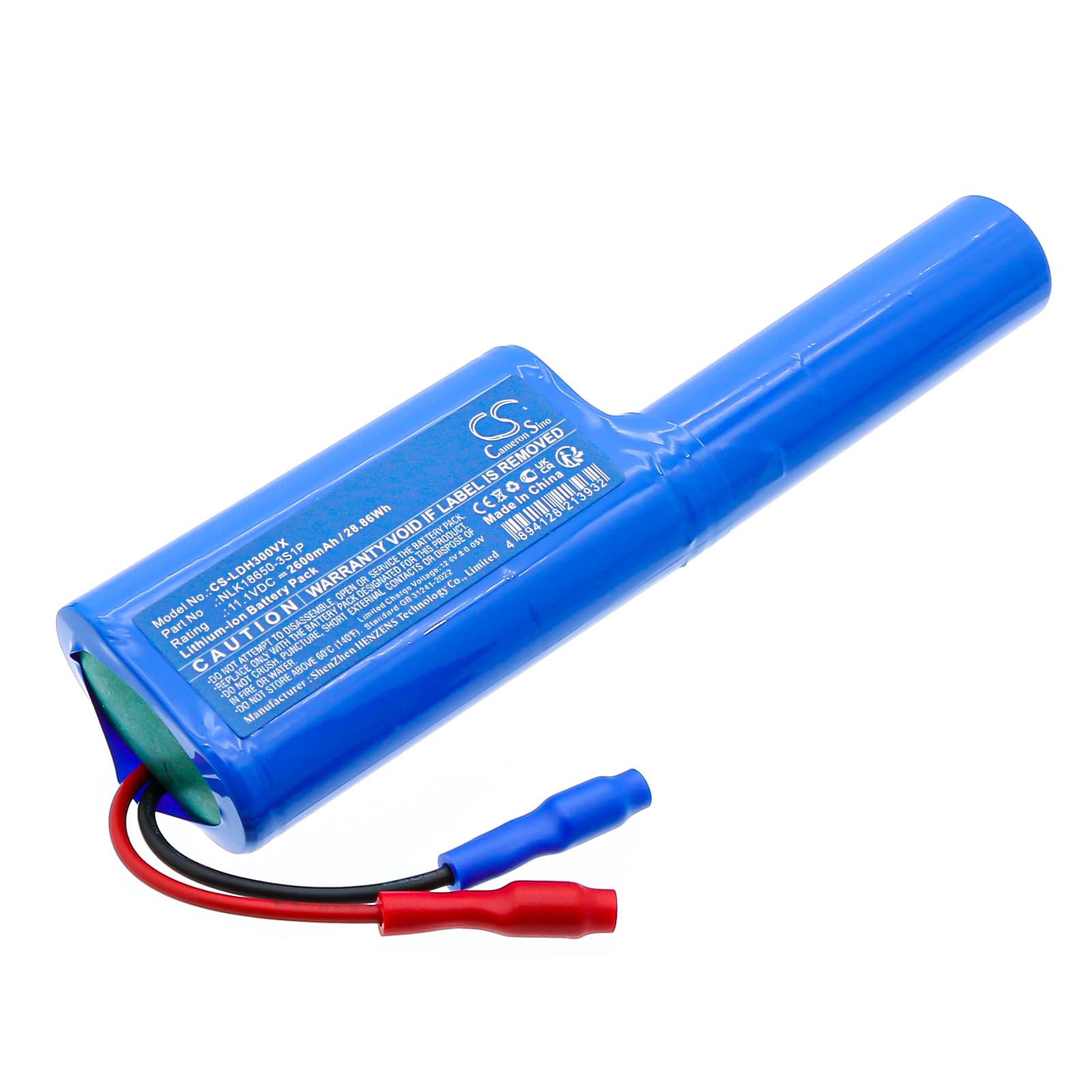

Lydsto H3 — 11.1V Li-ion Replacement Battery (NLK18650-3S1P)
This is an 11.1V 2600mAh Li-ion battery pack for the Lydsto H3 cordless handheld vacuum cleaner. It replaces OEM part NLK18650-3S1P when the original cell loses capacity or stops holding charge. The pack slots into the H3's battery bay and reconnects to the motor drive circuit at the correct voltage rail.
- H3 motor voltage rail: The Lydsto H3 runs its suction motor on an 11.1V nominal rail — a 3S1P lithium cell arrangement. Any swap must match this voltage exactly. A lower-voltage pack causes the BMS to cut power before the motor reaches full draw; a higher-voltage pack risks tripping the motor controller's overvoltage protection.
- Bench tested on actual hardware: We cycled this pack through repeated full charge-discharge passes on the H3 motor circuit. The BMS handled start-up inrush current without tripping, and cell balance across all three series cells stayed within 20mV after ten cycles.
- Dock charging on the H3: Do not leave the H3 sitting on its charging dock permanently. Continuous trickle charge from the dock degrades cell capacity significantly faster than charging only when the pack is depleted. Charge to full, then remove the vacuum from the dock.
Cordless vacuum losing suction before the battery indicator reaches low
This happens when the motor draws more current than the cell can sustain at its present state of charge, causing voltage to sag below the BMS's cutoff threshold early. It is not always a failing battery — a partially blocked filter forces the motor to work harder, pulling more amps and triggering that sag sooner. Clean or replace the H3's filter first, then retest. If suction still drops well before the indicator hits low with a clean filter, the cell has capacity fade and replacement is the correct fix.
Motor cuts out mid-use then recovers after a short pause
This is a BMS overcurrent trip, not a dead battery. When the H3's filter is restricted or the inlet is partially blocked, sustained high motor draw pushes current past the BMS's trip threshold. The BMS disconnects the cell to protect it, which looks like a sudden shutoff. After a short pause, the BMS resets and power returns. Clear any blockage from the filter and inlet, then resume use — if the cutout stops, the filter restriction was the cause. If it persists on a clean, unblocked vacuum, test cell voltage under load; a degraded cell dropping below 9V under motor start is the next failure to rule out.
