About this replacement

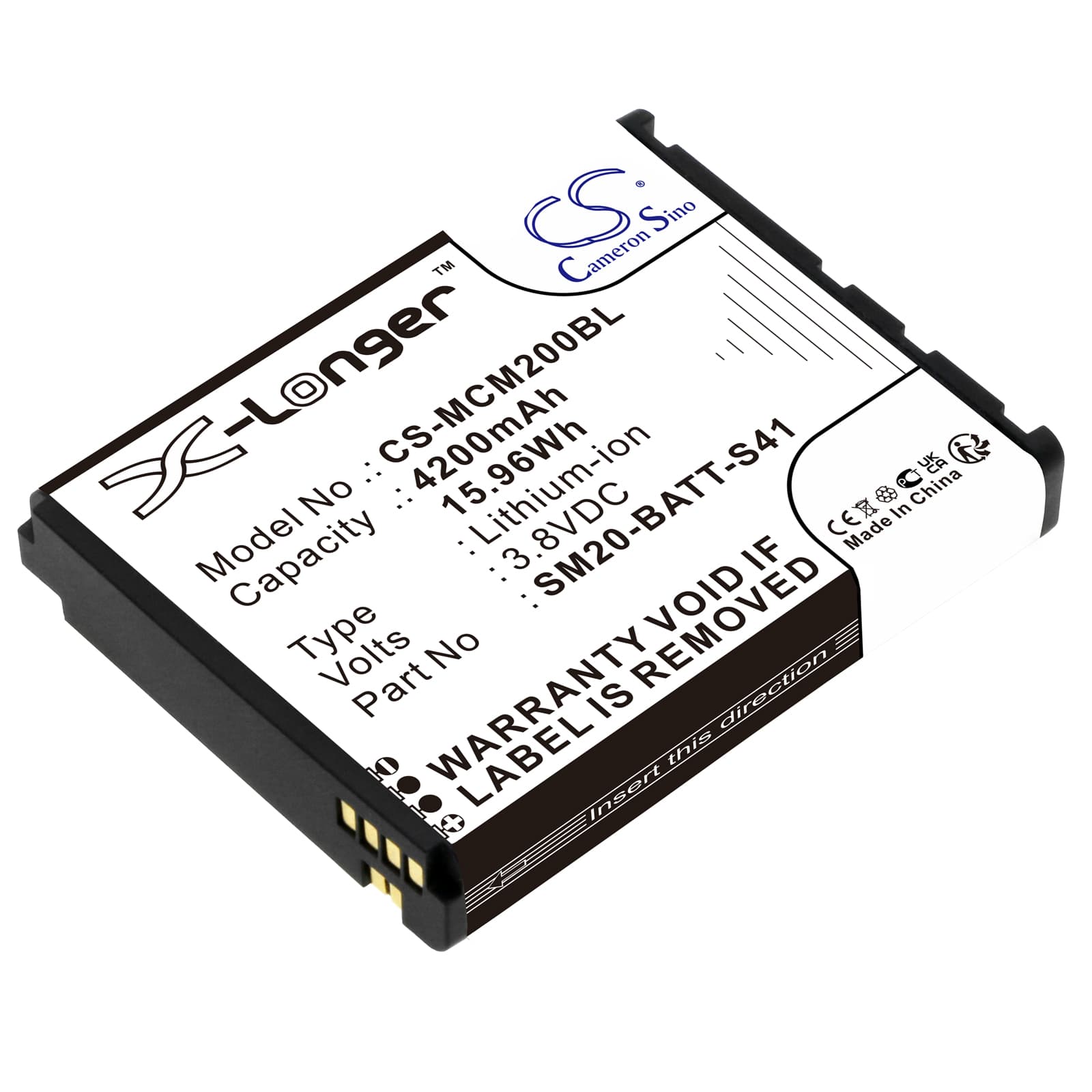

M3 Mobile SM20 / SM20 X — 3.8V Li-ion Replacement Battery (SM20-BATT-S41)
This is a 3.8V, 4200mAh Li-ion battery for the M3 Mobile SM20 and SM20 X rugged handheld computers. It replaces OEM part numbers SM20-BATT-S41 and 02-574-0037. These units are used in warehouse, retail, and logistics environments where continuous scanning through a full shift is critical.
- SM20 and SM20 X compatibility: Both models share the same 3.8V battery bay, connector pinout, and BMS communication protocol. One cell fits either unit without modification or firmware workaround.
- Bench tested on actual hardware: We ran the SM20 through repeated scan-and-transmit cycles. The BMS held charge acceptance steady across burst scanning and sustained Wi-Fi polling without tripping low-voltage cutoff prematurely.
- First shift prep — cradle charge before picking: After installing this pack, seat the scanner in its charging cradle for a full cycle before using it on the floor. Scan trigger inrush current peaks when the cell is near minimum, and a pre-charged pack prevents false BMS trips at the start of the first shift.
Cradle showing a charging error after fitting this pack
Charging docks on the SM20 series use spring-loaded pogo pins, and contact resistance at those pins is the most common trigger for a charge fault on a new pack. Dust, warehouse debris, or residue from the previous battery's contacts will cause the dock controller to reject the handshake. Wipe the gold contacts on the battery and the dock with a dry lint-free cloth, then reseat firmly. The charge indicator should switch to solid within 30 seconds of correct contact.
Scanner losing wireless connection during rapid scan bursts
The SM20 draws simultaneously from the 802.11 radio and the scan trigger during fast barcode reads — both loads spike at the same moment. If the cell voltage sags below the radio module's minimum threshold during that combined inrush, the Wi-Fi stack drops and the device re-associates with the access point. This is more likely with a degraded original battery but can appear on a new pack if installed at low charge. Charge the pack to full before the shift; a rested cell at 4.2V holds the combined load without sag.
