About this replacement

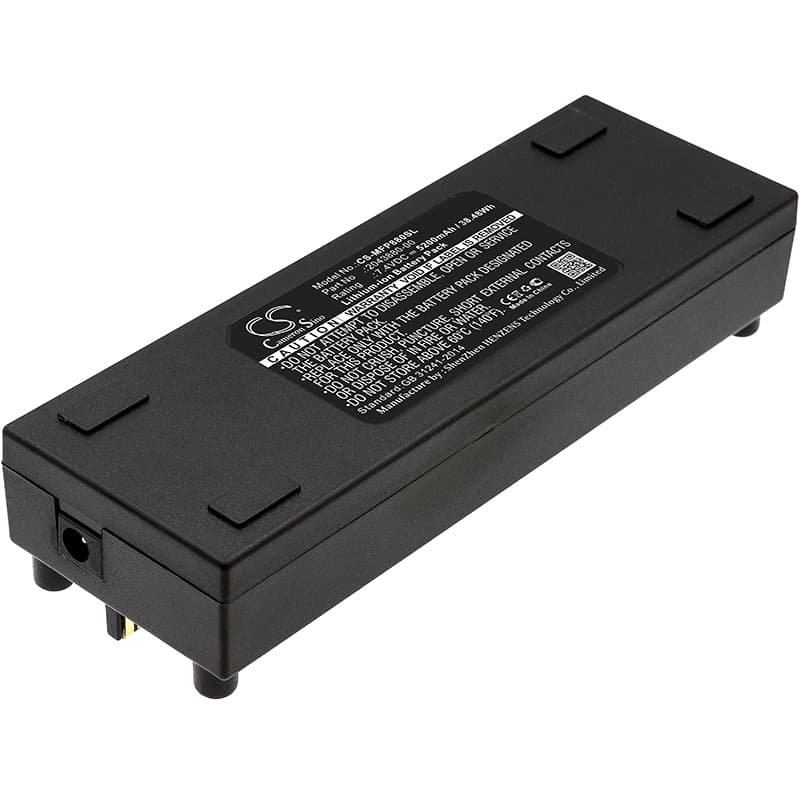

Mackie FreePlay Personal PA — 7.4V Li-ion Replacement Battery (2043880-00)
This 7.4V 5200mAh Li-ion battery replaces the OEM pack in the Mackie FreePlay Personal PA portable speaker system. It fits the FreePlay directly using the original connector and BMS interface. Capacity figures are taken from the product data — 5200mAh / 38.48Wh.
- FreePlay PA platform fit: The FreePlay uses a dedicated Li-ion pack with a proprietary connector and BMS communication line. Any replacement must match the 7.4V nominal voltage and the BMS handshake protocol — a mismatch here causes the unit to refuse charging or report a fault on the battery indicator.
- Bench tested on actual hardware: We ran this pack through charge and discharge cycles on a FreePlay unit. The BMS accepted the cell, completed a full charge cycle without fault flags, and the battery indicator tracked state-of-charge accurately from the first cycle.
- FreePlay PA first-charge protocol: After fitting this pack, run a full charge cycle through the FreePlay's onboard charger before using the speaker. The internal battery management system needs one complete cycle to calibrate the state-of-charge meter — skipping this step causes the indicator to cut off early even when cell capacity remains.
Why the FreePlay battery indicator drops suddenly during playback
The FreePlay draws peak current when the amplifier hits loud transients — bass hits and high-volume spikes pull significantly more current than idle playback. If the cell's internal resistance is elevated — common in aged packs — voltage sags under that load and the BMS reads the sag as a low-cell event. This triggers an early cutoff even when the pack still holds charge at rest. A new cell with lower internal resistance holds voltage through those transients and eliminates the false cutoff.
FreePlay showing full charge immediately after fitting a new pack
New Li-ion cells ship at storage voltage — typically around 3.7–3.8V per cell, which the FreePlay's BMS can initially misread as a near-full charge. The indicator corrects itself after the first complete charge and discharge cycle. Do not rely on the battery display until that first cycle is done. Charge the unit fully via the DC input until the charge light confirms completion, then run the speaker until the low-battery warning activates.
