About this replacement

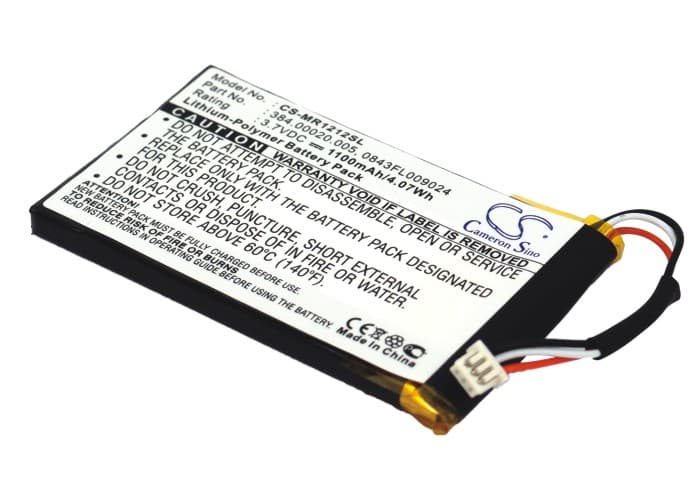

Magellan RoadMate 1212 / 1217 / 1220 / 1230 — 3.7V Li-Polymer Replacement Battery (384.00020.005)
This is a 3.7V, 1100mAh Li-Polymer cell for the Magellan RoadMate 1212, 1217, 1220, and 1230 GPS navigators. It replaces OEM part numbers 384.00020.005, 5390-B001-0780, and 0843FL009024. The battery powers the touchscreen display and GPS receiver during vehicle navigation.
- RoadMate 1212–1230 platform fit: These four models share the same battery bay dimensions, connector pinout, and 3.7V supply rail. The BMS handshake is identical across this generation, so one cell covers the full range without modification.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on the RoadMate platform. The BMS accepted the cell without fault flags, voltage regulation held steady under simultaneous GPS and display load, and the protection circuit tripped cleanly at the expected low-voltage cutoff.
- Cold-start satellite acquisition after fitting: After a full power removal the GPS chip loses its almanac cache and must perform a cold start. Power the unit on outdoors with a clear sky view and let it acquire a satellite fix before driving — first fix after a swap takes 5–10 minutes; subsequent warm starts drop back under a minute once the almanac is rebuilt.
GPS accuracy reduced at low battery on the RoadMate
The RoadMate's receiver draws more current during active satellite tracking than during standby. When cell voltage sags toward the low end — roughly below 3.5V under load — some units reduce receiver sensitivity to protect the voltage rail. This shows up as a wider position circle on the map or missed turn cues in dense urban canyons. Keeping the cell above that threshold, either through in-car charging or a fresh battery, keeps the receiver running at full sensitivity.
RoadMate shuts off without warning before the battery indicator hits empty
The on-screen battery gauge on these units is calibrated to the original cell's discharge curve. A new or significantly degraded cell has a slightly different voltage-to-capacity slope, so the indicator and the actual cutoff voltage fall out of sync. The device hits the hardware low-voltage shutoff at around 3.0V while the gauge still shows one bar. Run two or three full charge-and-use cycles to let the firmware recalibrate its state-of-charge estimate against the new cell.
