About this replacement

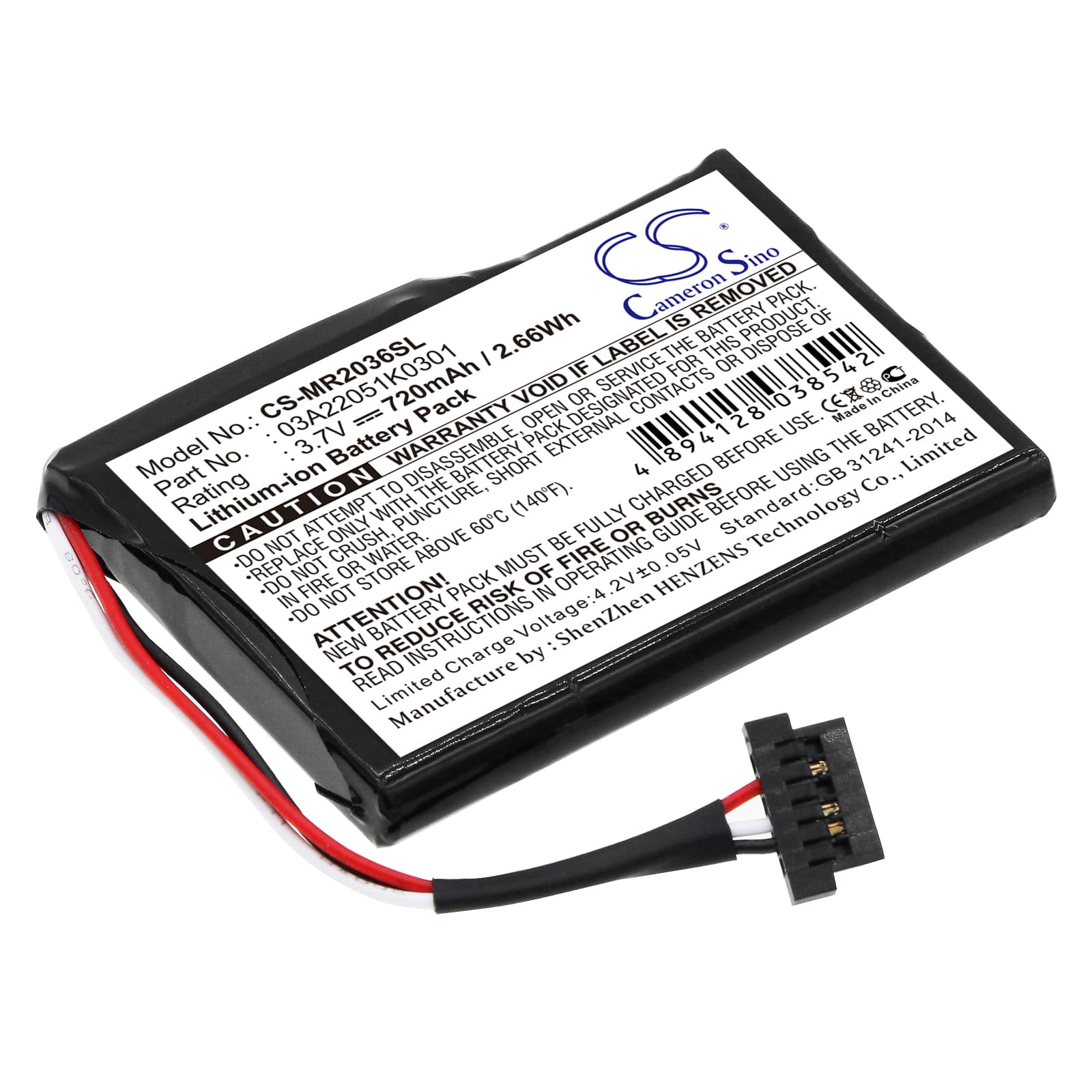

Magellan RoadMate 2035 / 2036 Series — 3.7V Li-ion Replacement Battery (03A22051K0301)
This is a 3.7V 720mAh Li-ion cell replacing OEM part 03A22051K0301. It fits the Magellan RoadMate 2035, RoadMate 2036, and RoadMate 2036-MU portable GPS navigators. Dimensions are 52 × 35 × 6mm — verify these against your existing cell before fitting.
- RoadMate 2035 / 2036 / 2036-MU fit: All three models share the same chassis dimensions, connector pinout, and BMS voltage profile. The 2036-MU adds a micro-USB port for map updates but draws from the same battery circuit, so one cell covers the full run of this hardware generation.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on the RoadMate platform. The BMS accepted the cell without error flags, held the 3.7V nominal rail cleanly under active GPS and display load, and the protection circuit tripped correctly at the low-voltage cutoff threshold.
- Cold-start satellite acquisition after swap: After fitting this cell, power the unit on outdoors with a clear sky view and let it run until it acquires a full satellite fix. A complete power interruption resets the GPS receiver to cold-start state — first fix can take 5 to 10 minutes. Subsequent power cycles warm-start in under a minute.
Why the RoadMate 2035 shuts off without a low-battery warning
The RoadMate reads battery state from a voltage curve calibrated to the original cell. When a new cell goes in, the device has no charge history for it, so the fuel gauge reads inaccurately until a full charge-discharge cycle resets the curve. During that first cycle, the unit can hit the hardware low-voltage cutoff — around 3.0V — before the on-screen warning has time to trigger. Run one complete charge-to-full, then use the device until it powers off on its own, then recharge fully. After that cycle, the warning and shutdown sequence will appear in the correct order.
GPS accuracy drops noticeably at the end of a long drive
Some GPS receivers in this class reduce radio sensitivity as battery voltage falls toward the low-voltage threshold — it is a firmware power-saving measure, not a fault. The effect shows up as wider position error or slower rerouting response during the last portion of a charge cycle. Keeping display brightness below maximum during navigation reduces the current draw competing with the GPS receiver, which keeps the voltage rail higher for longer. If accuracy is critical for a long route, charge the unit fully before departure rather than relying on in-car USB top-up, which may not fully offset active navigation draw.
