About this replacement

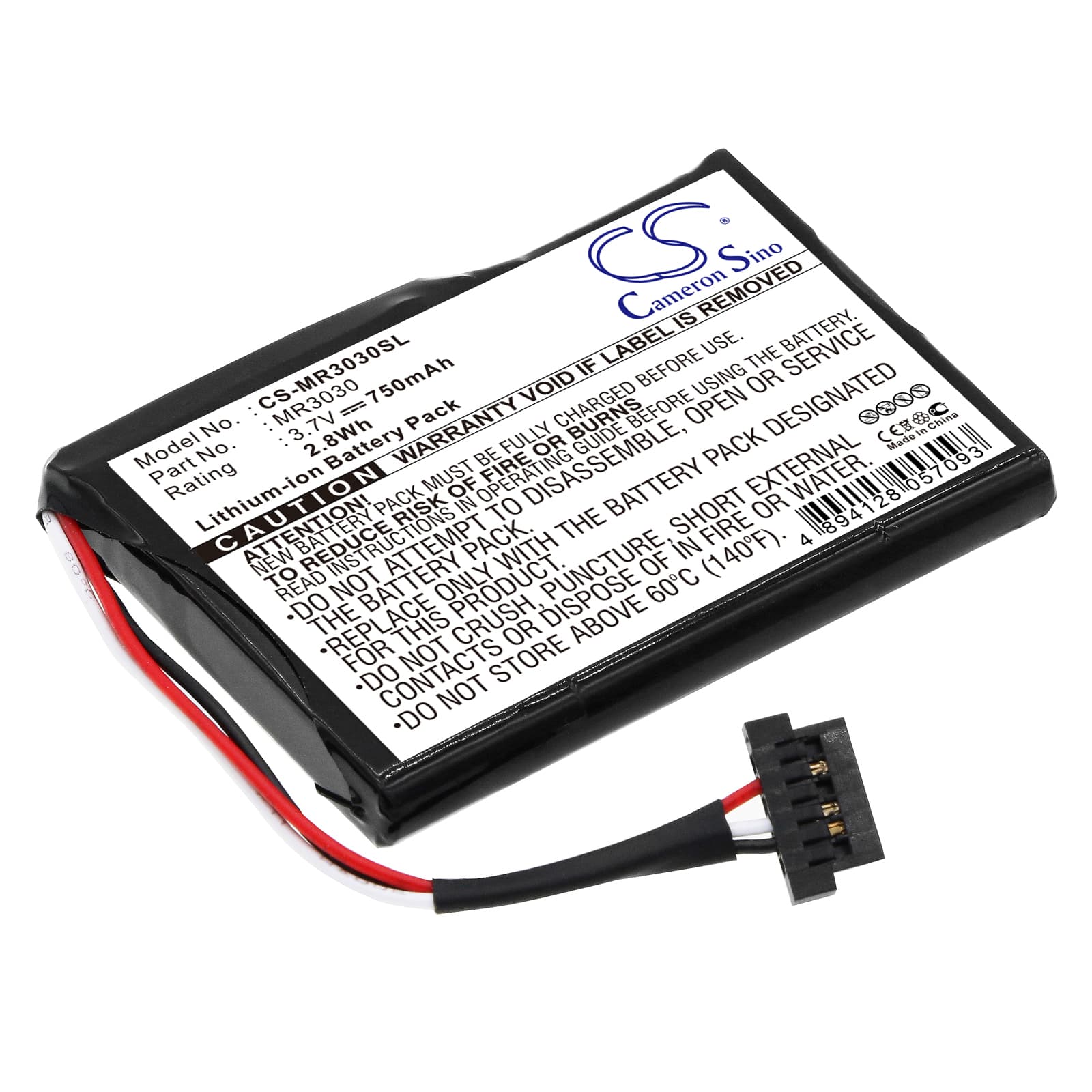

Magellan RoadMate 3030 — 3.7V Li-ion Replacement Battery (MR3030)
This 3.7V, 750mAh lithium-ion cell replaces the original battery in the Magellan RoadMate 3030 and RoadMate 3030-LM portable GPS navigators. It fits the same footprint at 50.60 × 35.69 × 6.08mm and connects directly to the device's internal battery circuit. Swap it in when the original cell no longer holds a usable charge between drives.
- RoadMate 3030 and 3030-LM compatibility: Both models run the same 3.7V single-cell architecture with an identical connector and physical envelope. One cell covers both variants — no wiring changes, no adapter required.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on the RoadMate platform. The BMS held the 3.7V nominal rail cleanly, accepted a full charge without triggering protection cutoff, and discharged at the low draw typical of a GPS receiver and LCD backlight.
- Cold-start satellite acquisition after fitting: After fitting this cell, power the unit on outdoors and leave it stationary. The RoadMate performs a cold start after any full power interruption — first satellite fix takes 5–10 minutes versus under a minute on subsequent warm starts. Let it complete that initial lock before driving.
GPS accuracy reduced when battery level drops below threshold
The RoadMate 3030 reduces GPS receiver sensitivity at low battery to extend remaining charge. This drops position accuracy — the unit may show your location drifting or jumping to the nearest road rather than tracking your actual path. It's a firmware-level power conservation behaviour, not a hardware fault. Keep the cell above 3.5V during active navigation to maintain full receiver sensitivity.
RoadMate shuts off mid-route without a low-battery warning
After a battery replacement, the RoadMate's charge indicator is uncalibrated to the new cell's discharge curve. The device reads remaining capacity inaccurately and hits its voltage cutoff threshold before the on-screen warning fires. Run two to three full charge and discharge cycles on the new cell. The indicator recalibrates progressively and the warning will appear at the correct point — typically when cell voltage reaches approximately 3.4V.
