About this replacement

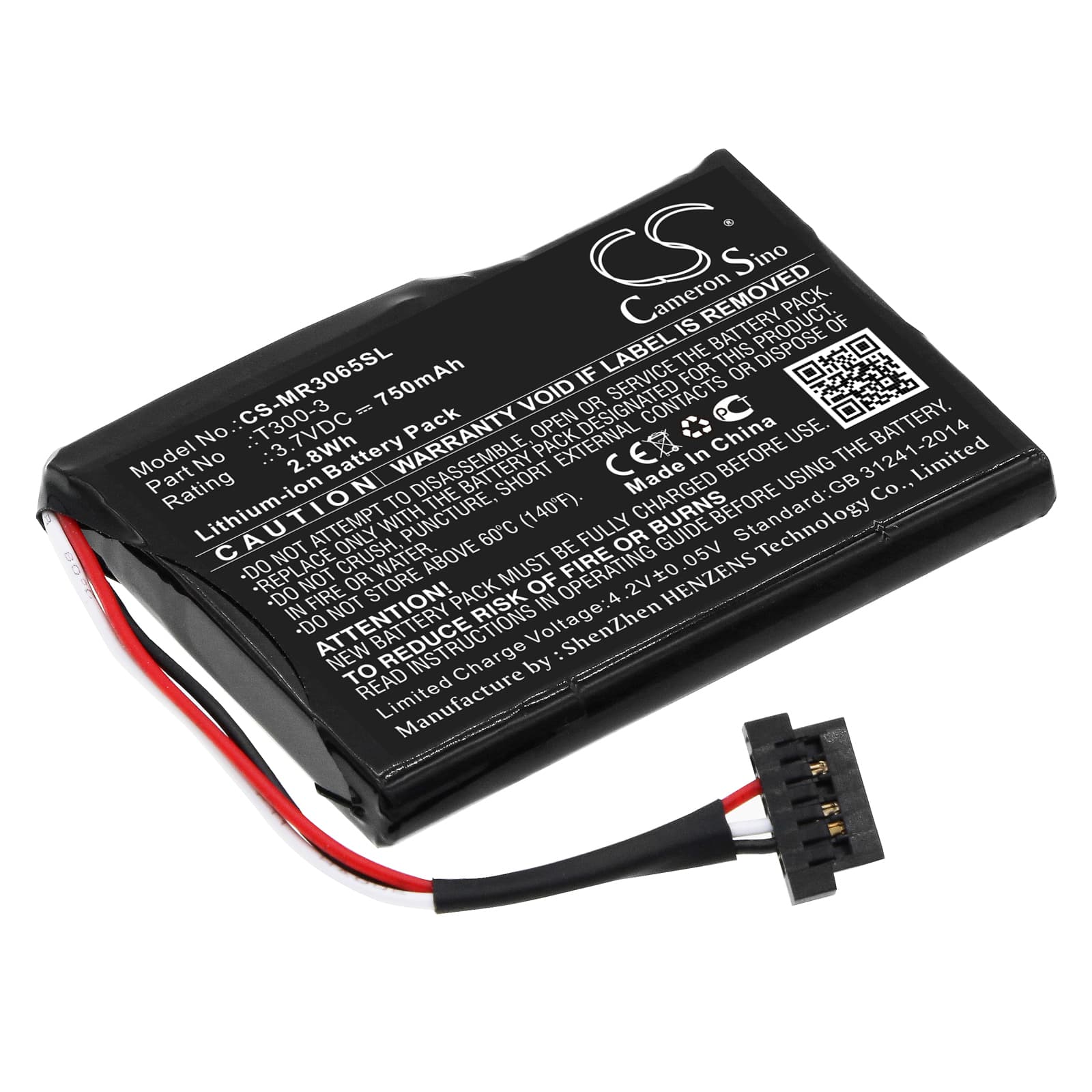

Magellan RoadMate 3065 Series — 3.7V Li-ion Replacement Battery (T300-3)
This is a 3.7V 750mAh Li-ion cell that replaces part number T300-3 in the Magellan RoadMate 3065, 3065T-LM, 3055, 3055-MU, and several related RoadMate models. It fits directly into the GPS navigator's battery bay with the original connector. Capacity matches the product data at 750mAh (2.78Wh) — the same spec as the factory cell.
- RoadMate 3055 and 3065 series fit: These models share the same battery bay dimensions, connector pin-out, and 3.7V supply rail. The T300-3 part number applies across both series — swapping between them does not require a different cell.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on the RoadMate platform. The BMS accepted the new cell without fault flags, and the charge controller stepped through its normal constant-current to constant-voltage transition cleanly.
- Cold-start satellite acquisition after swap: After fitting this cell, power the unit on outdoors before your first drive. A full power interruption clears the GPS receiver's ephemeris cache, triggering a cold start. First fix can take 5–10 minutes outdoors with a clear sky view — subsequent starts drop back to under a minute once the almanac is rebuilt.
RoadMate 3065 shutting off without warning at low battery
After a battery replacement, the RoadMate's battery indicator is uncalibrated against the new cell's discharge curve. The unit may show two bars remaining, then cut off immediately — no gradual warning. This happens because the voltage-threshold that triggers shutdown is hit before the visual indicator catches up. Run two or three full charge-discharge cycles on the new cell. The indicator recalibrates itself against actual cell behaviour and the warnings align with real remaining capacity.
Active navigation draining the RoadMate 3065 faster than standby
Running turn-by-turn navigation stacks the GPS receiver, display backlight, and traffic antenna — all drawing simultaneously. Standby pulls a fraction of that load because the receiver duty-cycles and the display dims. To extend charge between top-ups, drop display brightness below maximum and disable live traffic when you do not need it. At full navigation load, the 750mAh cell is working at the top of its draw range.
