About this replacement

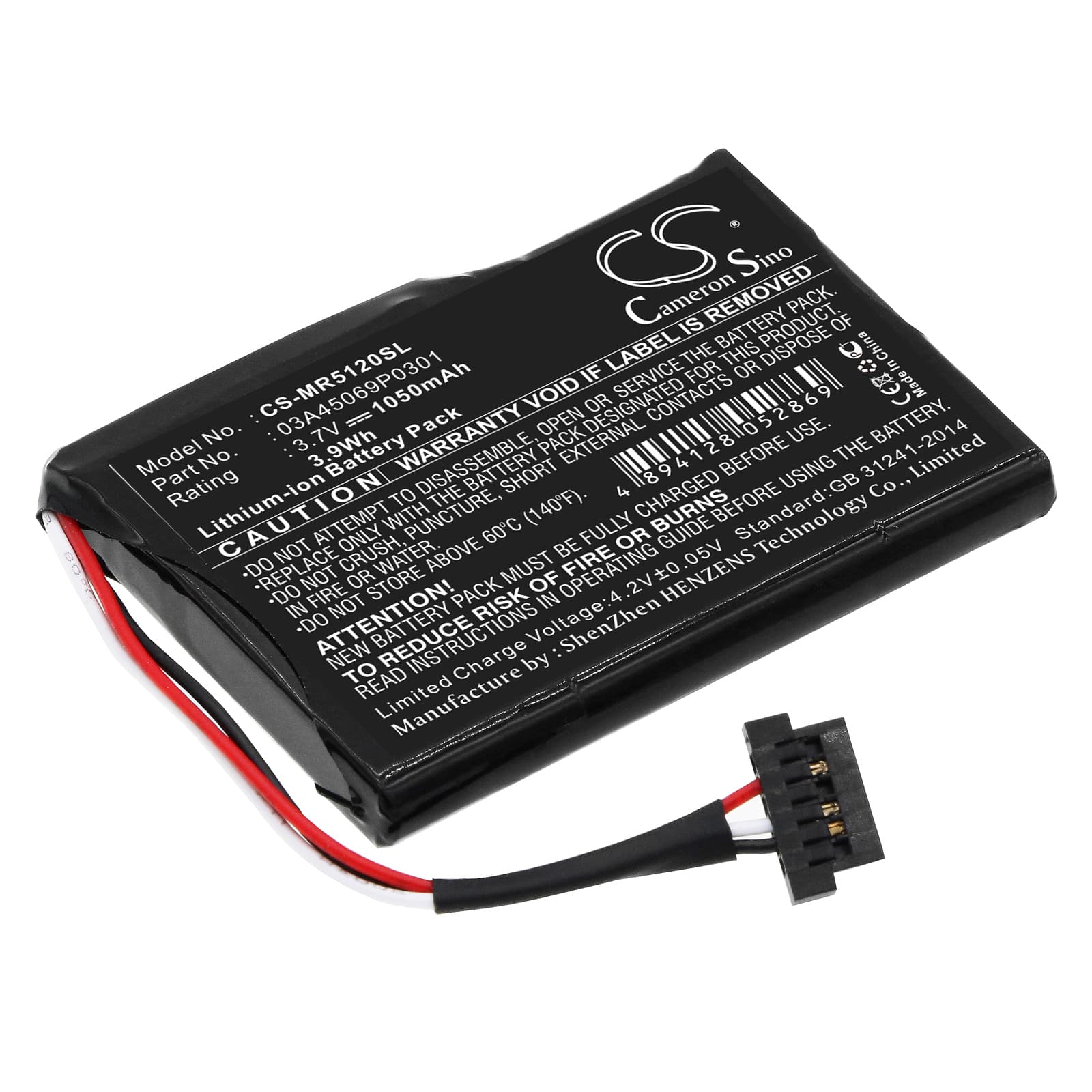

Magellan RoadMate 5145TLM / 5120LMTX / 5045 Series — 3.7V Li-ion Replacement Battery (03A45069P0301)
This is a 3.7V 1050mAh Li-ion cell built to replace part number 03A45069P0301 in the Magellan RoadMate line. It fits the RoadMate 5145TLM, 5120LMTX, 5045LM, and 5045MU, along with two additional models in the same series. The cell measures 49.21 × 35.64 × 5.40mm and matches the original electrical and physical spec.
- RoadMate 5000-series platform fit: These models share the same battery bay dimensions, 3.7V single-cell architecture, and connector pinout. The BMS handshake is handled at the device level, not the cell, so the replacement slots in without firmware negotiation.
- Bench tested on actual hardware: We ran this cell through charge and discharge cycles on RoadMate 5045 hardware. The BMS accepted the cell without fault flags, and voltage held stable across normal navigation load — display on, GPS receiver active, with real-time traffic processing running.
- Cold-start satellite acquisition after swap: After a full power interruption from a battery swap, the GPS performs a cold start. Allow 5–10 minutes outdoors with a clear sky view on first power-up. The unit pulls a fresh almanac from scratch. Subsequent locks will drop back under a minute once the data is cached.
GPS accuracy reduced when battery level drops below 20%
Several Magellan RoadMate units throttle GPS receiver sensitivity at low battery to protect remaining charge. This shows up as position drift or a wider accuracy circle on the map, even with good sky visibility. The receiver is intentionally pulling less power, which reduces signal processing headroom. Charge the unit back above 3.6V and the full receiver sensitivity restores automatically.
RoadMate 5145TLM shuts off without a low-battery warning
This happens when the battery indicator loses calibration — common after the original cell degrades significantly. The device's voltage threshold for shutdown is still accurate, but the percentage gauge no longer tracks it correctly. So the unit reads 30% and cuts off seconds later. After fitting the new cell, run two full charge and discharge cycles to let the gauge recalibrate against the cell's actual voltage curve.
