About this replacement

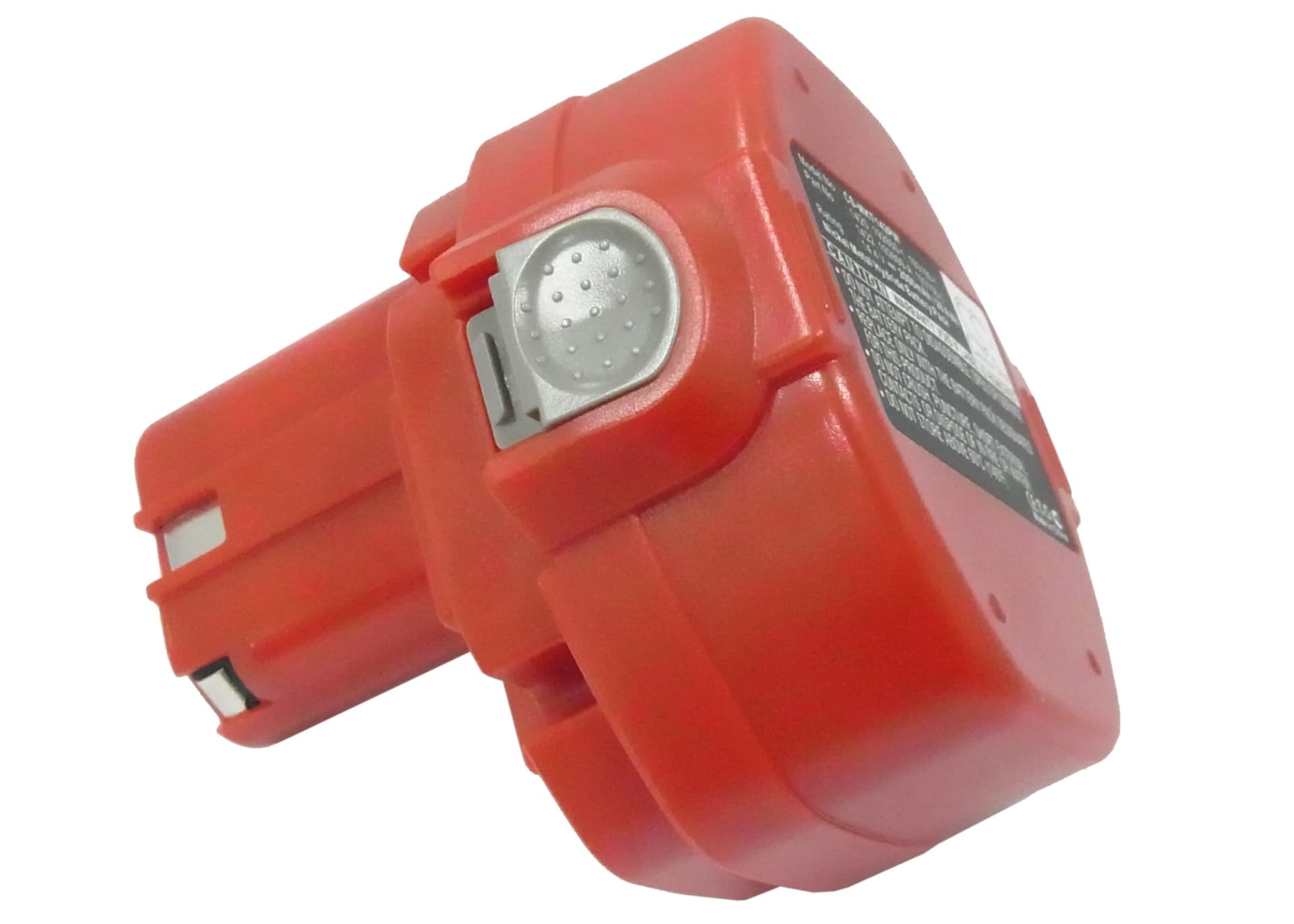

Makita 1051D Series — 14.4V Ni-MH Replacement Battery (1420)
This is a 14.4V 2000mAh Ni-MH replacement battery for the Makita 1051D cordless drill/driver and over 70 compatible models in the same platform. It slots into the same battery bay as the original pack and draws from the same cell chemistry. Capacity is 2000mAh (28.8Wh), sourced to match OEM specification.
- 1051D platform compatibility: The 1051D, 1051DWA, 1051DWAE, and 1051DWD all share the same 14.4V rail, slide-in connector, and BMS handshake protocol. Any pack carrying OEM part numbers 1420, 1422, or 192600-1 will communicate correctly with the onboard electronics without triggering a tool lockout.
- Bench tested on actual hardware: We cycled this pack through repeated trigger-pull events on a 1051D to confirm the BMS handled motor-start inrush current without tripping overcurrent protection. Cell temperature stayed within normal range across a full discharge cycle under intermittent drilling load.
- Break-in load cycling for the 1051D: On first use, run the drill at half load — light screwdriving, no hard boring — for two full cycles before moving to full-torque applications. This lets the BMS log the inrush draw of your specific motor before locking in its overcurrent thresholds.
BMS cutoff on the 1051D motor-start inrush surge
When you pull the trigger on a cordless drill, the motor draws a sharp current spike before it reaches running speed. On a new or cold Ni-MH pack, this inrush can briefly exceed the BMS overcurrent threshold — causing an immediate cutoff that looks like a dead battery. The BMS resets within seconds, so a short pause before re-triggering usually clears it. Running two break-in cycles at light load trains the BMS to expect that spike and sets a more accurate threshold.
1051D charger not responding to a new pack that sat in storage
Ni-MH cells that sit unused for several months can self-discharge below the voltage floor that Makita chargers use as an acceptance threshold. The charger sees a reading below roughly 10V across the pack and refuses to start a charge cycle, often showing no indicator light at all. A short "trickle prime" — if your charger supports it — or a brief boost from a compatible Ni-MH charger set to manual mode can bring the pack back above the acceptance threshold. Once cells read above 12V, the standard Makita charger will recognise the pack and begin a normal charge cycle.
