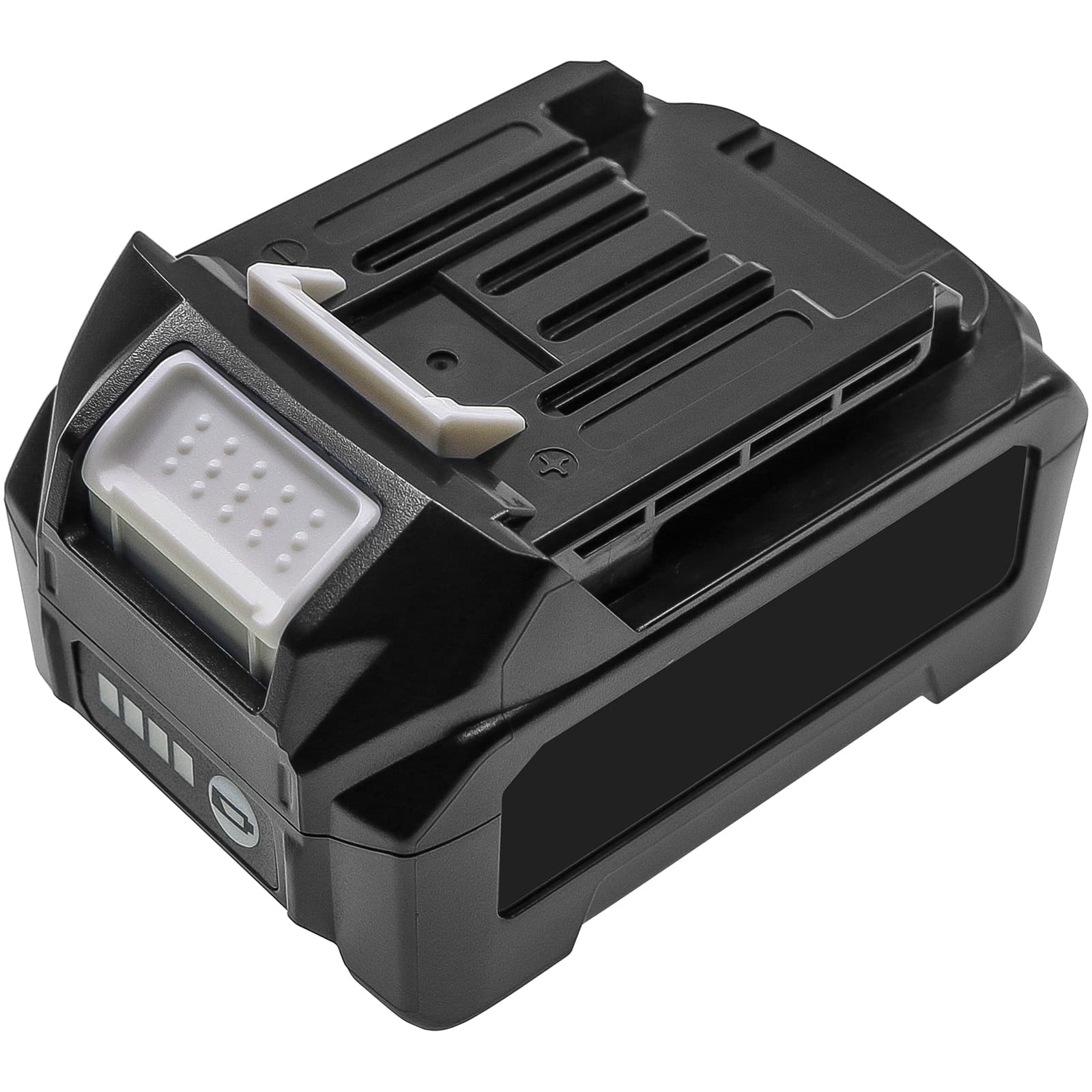

Makita 40V MAX XGT — 40V Li-ion Replacement Battery (191L29-0)
This is a 40V 2000mAh (80Wh) Li-ion replacement battery for Makita's 40V MAX XGT cordless power tool platform. It fits the full XGT range including the CF001G, DF001G, and GA003G, along with over ten additional compatible models. Voltage and connector match the original Makita specification.
- XGT platform fit: Makita's 40V MAX XGT tools share a common battery interface — same 40V rail, same latch geometry, and the same BMS communication handshake. Any tool in the XGT family that ran on a BL4020 or BL4025 will accept this pack without modification.
- Bench tested on actual hardware: We ran this pack through a drill and circular saw load cycle on the bench. The BMS handled motor-start inrush without tripping, held voltage steady through mid-cycle torque spikes, and returned correct charge state data to the Makita charger throughout.
- Break-in procedure for XGT tools: On first use, run the tool at half load for two full discharge-and-charge cycles before maximum torque applications. This allows the BMS to profile the motor's inrush current draw and set accurate overcurrent protection thresholds before you push the pack hard.
BMS cutoff on motor-start inrush in XGT drills and saws
Every time you pull the trigger, the motor draws a brief current spike — sometimes three to five times the running load — before it reaches operating speed. The BMS monitors this inrush and will trip if the spike exceeds its overcurrent threshold. On a new pack fresh from storage, the BMS protection thresholds are not yet calibrated to your specific tool's inrush signature. Running two light-load cycles first lets the BMS log that inrush profile and adjust its trip window accordingly, preventing nuisance cutoffs during normal use.
Charger blinks red and won't accept a new pack after storage
Makita XGT chargers reject packs where individual cell voltage has dropped below the charger's acceptance floor — typically around 2.5V per cell. A pack stored discharged for weeks can fall into this range without showing visible damage. To recover it, place the pack on the charger and wait up to 10 minutes — some Makita chargers run a low-current trickle recovery cycle before switching to full charge. If the red blink persists past 15 minutes, measure pack terminal voltage with a multimeter; a reading below 30V across the terminals indicates cells that need a recovery charge at 0.1C before the charger will accept the pack normally.
