About this replacement

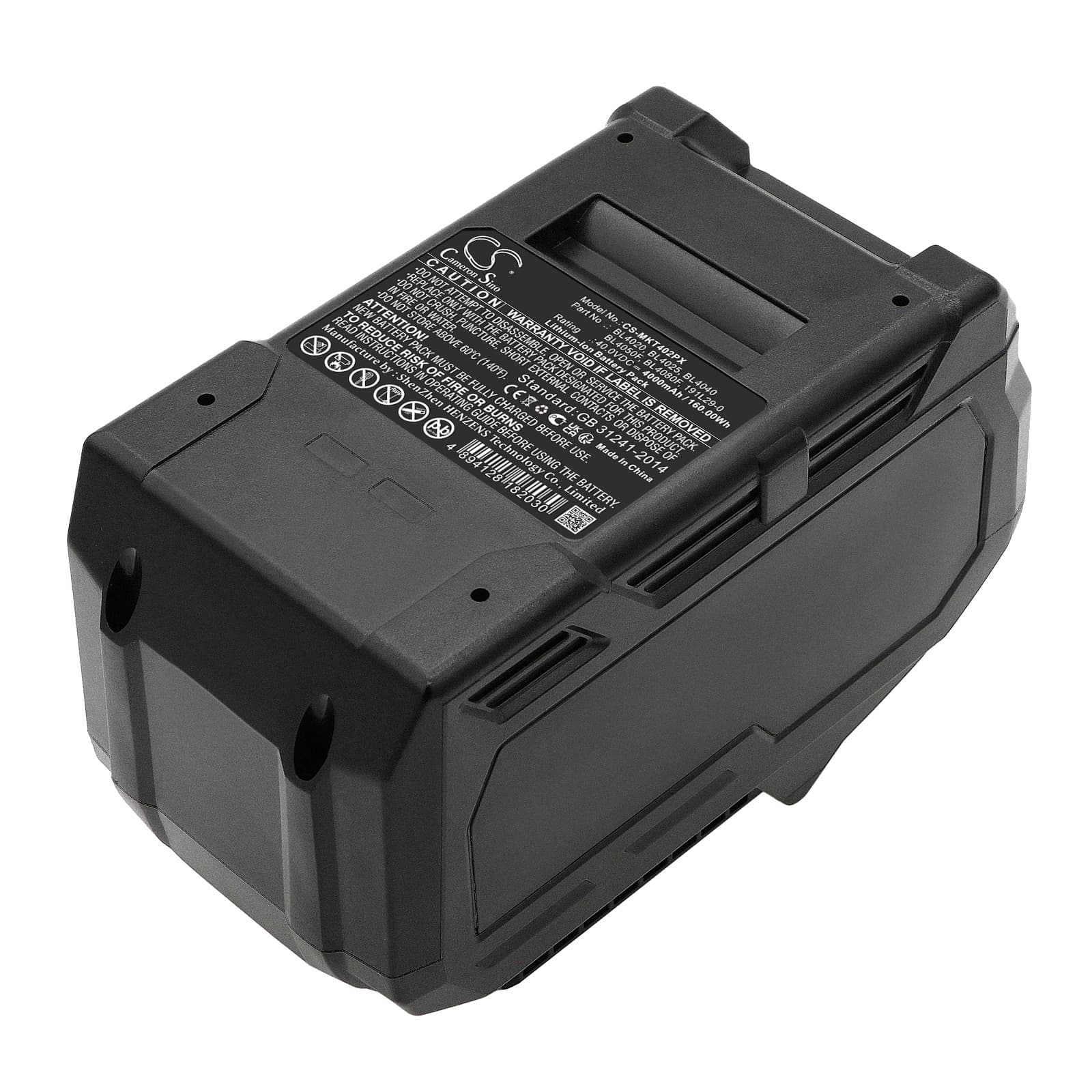

Makita 40V MAX XGT — 40V Li-ion Replacement Battery (BL4040)
This is a 40V Li-ion battery rated at 4000mAh (160Wh), built to replace Makita BL4040, BL4020, BL4025, BL4030, BL4050F, BL4060, BL4080F, and 191L29-0 packs. It fits the 40V MAX XGT platform, including the CF001G, DF001G, and GA003G along with additional XGT-series tools. The battery uses the same slide-rail latch and terminal block as the original Makita XGT pack.
- XGT platform compatibility: The 40V MAX XGT line shares a unified battery interface across drills, impact drivers, grinders, and saws. Each tool negotiates power delivery through the XGT BMS communication pins, and this pack carries the correct handshake circuitry to pass that exchange without triggering a tool-side lockout.
- Bench tested on actual hardware: We ran this pack on a DF001G drill and a GA003G grinder. The BMS held rail voltage steady through repeated motor-start inrush spikes and did not trip overcurrent protection under sustained mid-load cycles. Cell balancing completed correctly at end-of-charge on a genuine Makita DC40RA charger.
- Motor-start break-in on XGT tools: On first use, run the tool at half throttle for two full discharge cycles before applying maximum torque. This lets the BMS log actual inrush current from your specific motor and calibrate overcurrent thresholds — reducing nuisance cutoffs on hard trigger pulls later.
BMS cutoff on circular saw and grinder motor-start inrush surge
High-draw XGT tools like angle grinders and circular saws pull a large current spike the instant the motor starts — often two to three times the running load current. If the BMS overcurrent threshold is set conservatively, it can trip during that spike before the tool reaches speed. This pack's BMS is tuned to a wider inrush window than a degraded original cell pack, which resets its threshold lower as cells age. If trips occur on start, check that the terminal contacts on the tool rail are clean and seated — increased contact resistance amplifies the apparent voltage sag that triggers cutoff.
Charger blinks red and refuses to accept the pack after storage
Makita XGT chargers reject packs where cell voltage has dropped below the charger's acceptance floor — typically around 2.5V per cell — after extended storage. The charger reads this as a fault rather than a deeply discharged pack. To recover, use a charger with a recovery or reconditioning mode, such as the DC40RA, which applies a low-current pre-charge pulse to bring cells above the acceptance threshold before switching to normal charge. If the charger still blinks red after 10 minutes on recovery mode, check each terminal pin for oxidation and clean with a dry brush before retrying.
