About this replacement

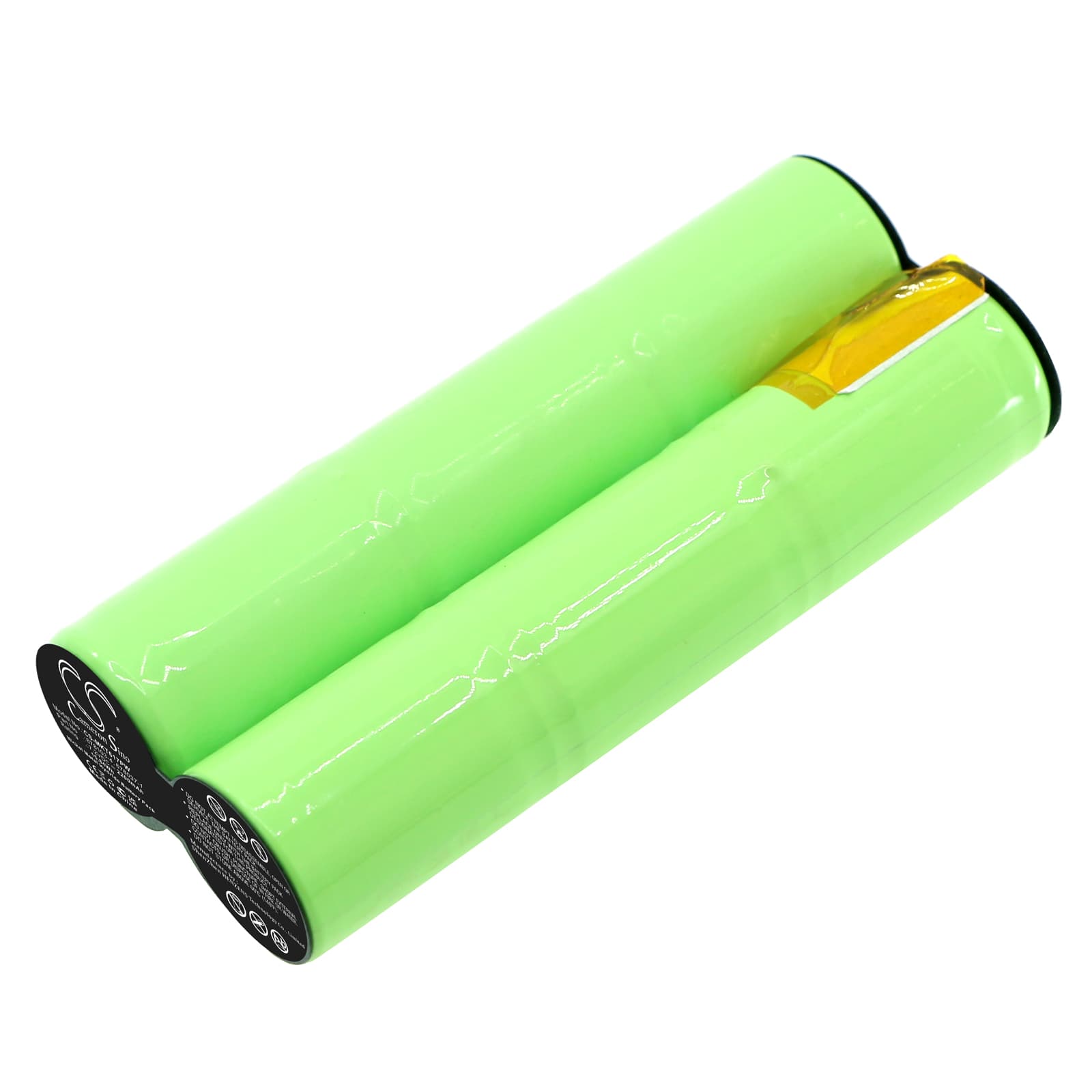

Makita 6176D Series — 7.2V Ni-MH Replacement Battery (678103-4)
This is a 7.2V, 2200mAh Ni-MH battery for the Makita 6176D, 6176DW, 6176DWF, 6076DW, and compatible models. It replaces OEM part numbers 678103-4 and 678037-1. The battery slots into the base of the drill using the original slide-lock mechanism and connects to the same contact rail.
- 6176 series compatibility: These models share the same 7.2V contact rail, slide-lock housing, and BMS communication handshake. A battery pulled from a 6176DW will seat and fire on a 6176DWF without adapter or modification — the connector geometry and pin arrangement are identical across the series.
- Bench tested on actual hardware: We ran this pack through charge and discharge cycles on a 6176D body. The BMS correctly signalled end-of-charge to a Makita DC1414 charger and held stable voltage across low-torque drilling and screw-driving passes. No false cutoffs were triggered during inrush at trigger pull.
- Ni-MH cycling on a drill body: Avoid leaving this pack seated in the drill between jobs for extended periods. The 6176D body draws a small standby current through the contact rail even when the trigger is not pressed. That trickle drain over days can pull cell voltage below the BMS reinitialisation threshold and cause a charger refusal on the next cycle.
BMS cutoff on trigger-pull inrush in the 6176D
The 6176D motor draws a current spike at the moment the trigger closes — often three to five times the steady running current. On a fresh pack or a pack sitting unused, the BMS overcurrent threshold can interpret this inrush as a fault and cut the output rail before the motor reaches speed. This is not a defective battery. The BMS recalibrates its overcurrent window after two or three trigger cycles as it profiles the motor's actual inrush curve. If cutouts continue after three pulls, check that the contact rail on the drill body is clean and making full surface contact with both battery terminals.
Charger won't accept the pack after the drill sat unused
Ni-MH cells self-discharge during storage. If the pack has been sitting for several weeks, cell voltage may have dropped below the 4.8V minimum the Makita charger uses as its acceptance threshold. The charger sees a voltage it classifies as a damaged cell and refuses to begin the charge cycle. Remove the pack from the charger, wait 60 seconds, and reinsert it firmly — some Makita chargers retry the acceptance check on reconnect. If the charger still refuses, a brief trickle charge at 100mA from a bench supply until the pack reaches 5.4V will bring it back into the acceptance window.
