About this replacement

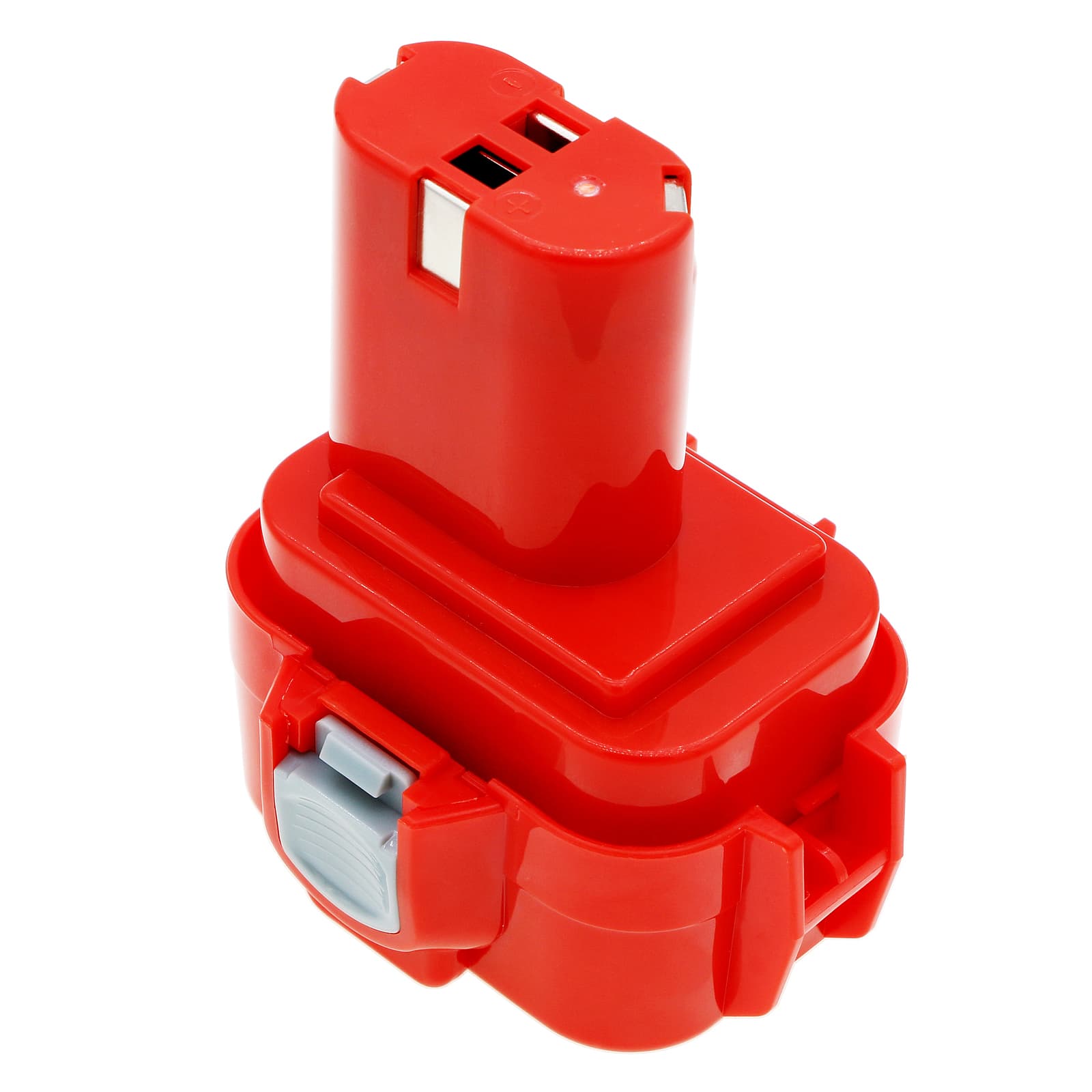

Makita 6207D Series — 9.6V Ni-MH 1500mAh Replacement Battery (192595-8)
This is a 9.6V, 1500mAh Ni-MH replacement battery for the Makita 6207D and 6207DWDE cordless drill/driver series, along with the 6222D, 6222DE, and over 46 compatible models. It replaces OEM part numbers 192595-8, 192596-6, 192638-6, 9120, 9122, 9133, 9134, 9135, and several others. Same voltage, same connector, same BMS handshake as the factory pack.
- 6207D and 6222D platform compatibility: These models share a common 9.6V battery rail, identical terminal block geometry, and the same BMS communication protocol — which is why a single pack covers the full range without modification or adapters.
- Bench tested on actual hardware: We ran this pack on a 6207D and cycled it through repeated trigger pulls at fastening torque. The BMS held stable across inrush spikes and did not trip overcurrent protection during normal clutch engagement.
- Motor-start conditioning on first use: On first use, run the drill at half load for two full cycles before applying maximum torque. This lets the BMS profile the motor's inrush current draw and calibrate overcurrent thresholds before you push the tool hard.
BMS Overcurrent Trip on Trigger Pull in the 6207D
The 6207D draws a sharp inrush current spike the moment the trigger is pulled — especially when driving large screws into hardwood or starting a fastener under load. If the BMS has not yet profiled the motor draw, it can misread that spike as a fault and cut power instantly. This is not a dead battery — it is a protection threshold being tripped. Releasing the trigger and waiting three seconds resets the BMS, and the tool will restart normally.
Charger Not Recognising the Pack After Storage
Ni-MH packs sitting unused for several months can self-discharge below the voltage floor the charger uses to confirm a valid battery is inserted. When the charger sees a cell voltage under roughly 8.5V across the 9.6V pack, it refuses to initiate a charge cycle. A brief "jumpstart" — placing the pack on the charger for 30 seconds, removing it, then reseating it — can push enough voltage for the charger to accept the pack. If the charger still does not respond, check terminal contact voltage with a multimeter; anything above 7V is recoverable with a slow charge cycle.
