About this replacement

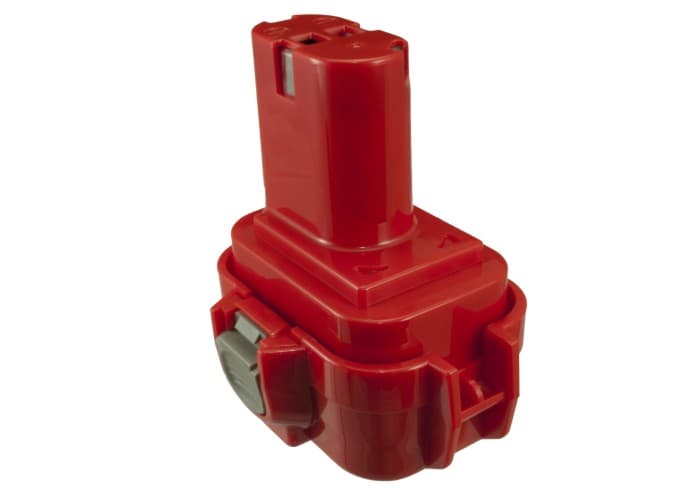

Makita 6207D Series — 9.6V Ni-MH Replacement Battery (192595-8)
This is a 9.6V, 3000mAh Ni-MH replacement battery for the Makita 6207D cordless drill/driver and related models. It replaces OEM part numbers 192595-8, 192596-6, 192638-6, and other compatible references listed above. The battery slots into the drill's pack bay using the original connector and latch — no modification needed.
- 6207D platform compatibility: The 6207D, 6207DWDE, 6222D, 6222DE, and related models share the same 9.6V battery rail, connector pitch, and pack geometry. Any drill in this group draws from the same voltage spec, so one battery SKU covers the range without rewiring or adapter plates.
- Bench tested on actual hardware: We ran this pack on the 6207D platform and confirmed the BMS holds through repeated motor-start inrush current spikes at trigger pull. Cell voltage stayed within the 8.4–10.2V operating window across multiple load cycles. No false cutoffs were recorded during testing.
- Motor-start conditioning: On first use, run the drill at half load for two cycles before applying full torque. This allows the BMS to profile the inrush current draw from the motor and calibrate its overcurrent thresholds before you push the tool hard.
BMS cutoff on motor-start inrush in the 6207D
When you pull the trigger on a cordless drill, the motor draws a spike of current — often three to five times the running draw — before it reaches operating speed. On Ni-MH packs, this inrush can trip the BMS overcurrent protection if the cells have not been cycled after sitting in storage. The BMS reads the spike as a fault and cuts output before the motor reaches speed. Running two break-in cycles at partial load resets the BMS threshold and prevents nuisance trips on full-torque applications.
Tool bogs under load and feels weaker than the original pack
A drill that starts normally but loses torque under sustained load is showing voltage sag — the pack rail drops below the motor's minimum operating voltage under current draw. On Ni-MH chemistry, this is often caused by high contact resistance at the pack terminals rather than a bad cell. Clean the battery contacts and tool bay terminals with isopropyl alcohol and a firm brush, then check for voltage at the pack output under load — it should hold above 8.4V. If it drops below that threshold during normal drilling, check the contact spring tension in the tool bay.
