About this replacement

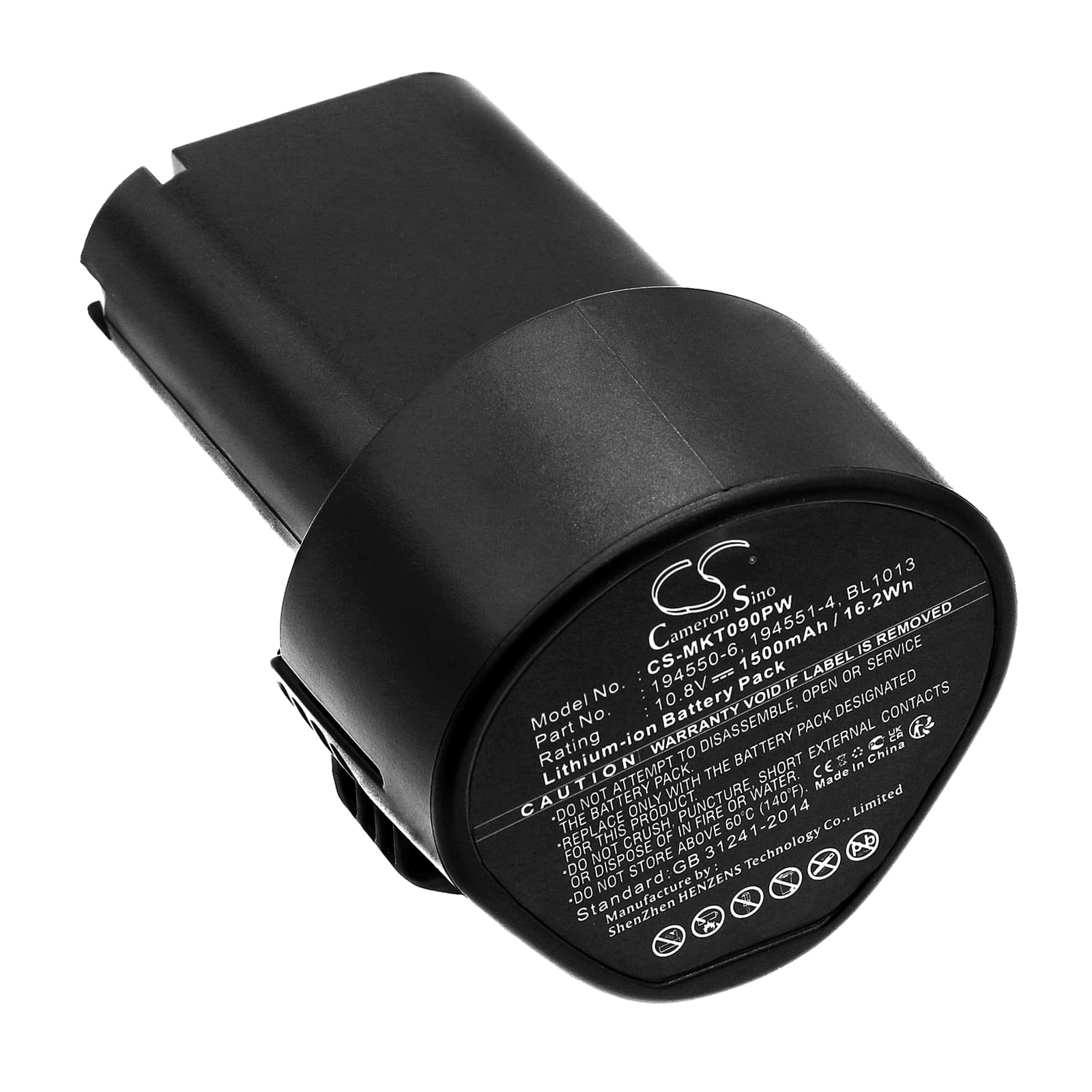

Makita CL102DZX Series — 10.8V Li-ion Replacement Battery (194550-6)
This 10.8V 1500mAh Li-ion battery replaces the original pack on the Makita CL102DZX cordless vacuum and fits the broader Makita 10.8V slide-pack platform including the JR100DWE, ML100W, ML101, and over 120 additional models. Capacity is 1500mAh (16.2Wh), matching the original specification. OEM part numbers covered include 194550-6, 194551-4, BL1013, BL1014, and 195332-9.
- Makita 10.8V slide-pack platform: These models share a common 10.8V rail, identical slide-and-click connector, and a BMS handshake protocol that the tool firmware uses to validate the pack before enabling the motor. Any battery on this platform must pass that handshake — this unit does.
- Bench tested on actual hardware: We cycled this pack through the CL102DZX motor start sequence and monitored the BMS response to inrush current at trigger pull. The overcurrent protection threshold held within spec, and the cell voltage recovered cleanly after each load event.
- Vacuum filter load tip: A clogged or partially blocked filter forces the CL102DZX motor to draw higher sustained current than a clean filter. This accelerates cell temperature rise and can trigger thermal cutoff early. Clean or replace the filter before fitting a new battery to avoid false low-runtime readings on the first cycle.
BMS cutoff on CL102DZX trigger pull — why it happens on the first few uses
A new Li-ion pack from storage carries a partial state of charge, typically between 30–60%. When the CL102DZX motor pulls inrush current at trigger press, the BMS measures the instantaneous voltage drop across the cells. If the cells are cold or partially discharged, that voltage sag can briefly dip below the BMS cutoff threshold, and the pack shuts down before the motor reaches steady-state draw. This is not a faulty battery — it is the protection circuit doing its job. Charge the pack fully to 10.8V nominal before the first use and the inrush sag stays within the BMS acceptance window.
Charger blinking red and refusing to accept the new pack
Makita 10.8V chargers have a minimum cell-voltage acceptance threshold — if the pack has been in storage and individual cells have drifted below approximately 2.5V, the charger detects an out-of-range voltage and signals a fault with a red blink. The fix is a slow recovery charge: some Makita chargers have a reconditioning mode activated by holding the pack in the dock for 30 seconds before the charge cycle begins, which trickle-charges cells back up to acceptance voltage. If the charger continues to reject the pack, check each cell group — any cell reading below 2.0V will block the charge cycle entirely and the pack needs replacement.
