About this replacement

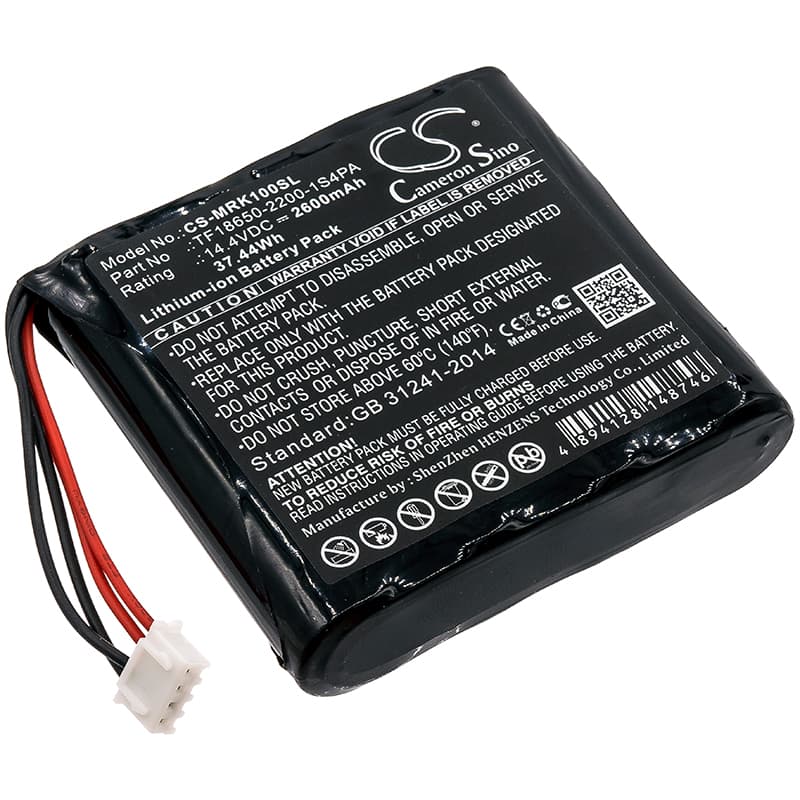

Marshall Kilburn — 14.4V Li-ion Replacement Battery (TF18650-2200-1S4PA)
This is a 14.4V, 2600mAh Li-ion replacement battery for the Marshall Kilburn portable Bluetooth speaker. It fits the original battery slot and matches the OEM part number TF18650-2200-1S4PA. If your Kilburn no longer holds charge or powers on from battery, this is the direct swap.
- Kilburn-specific fit: The Kilburn uses a 4-cell series Li-ion pack at 14.4V nominal to drive both the Class D amplifier board and the Bluetooth radio simultaneously. Both draw from the same pack — any voltage deviation affects audio and connectivity together, not independently.
- Bench tested on actual hardware: We ran this pack through charge and discharge cycles on the Kilburn platform. The BMS handled both amplifier current spikes at high volume and the lower radio draw at idle without tripping cutoff prematurely.
- Fuel gauge reset after install: After fitting this battery, run the Kilburn down to the low-battery indicator before recharging fully. The Kilburn's onboard fuel gauge needs one full discharge-to-recharge cycle to calibrate correctly — skipping this causes the indicator to misread remaining capacity from the first week of use.
Why the Kilburn audio drops at high volume even on a fresh charge
At maximum volume, the Kilburn's amplifier pulls a sharp current spike that combines with the Bluetooth radio draw. If the battery's internal resistance has risen — through age or a degraded cell — pack voltage sags under that combined load. The BMS reads this sag as a low-voltage condition and throttles output before the fuel gauge shows anything unusual. Replacing the pack restores low internal resistance, so the voltage rail stays stable when both the amp and radio are drawing hard.
Kilburn won't accept a charge after sitting unused for several months
A Kilburn left discharged for extended periods can drop its cell voltage below the USB charger's minimum acceptance threshold — typically around 2.5V per cell, or roughly 10V across the full 4S pack. At that point the charger sees the pack as a fault condition and refuses to initiate a charge cycle. Connect the Kilburn to a USB source rated at 5V/2A and leave it for 20–30 minutes without expecting any indicator response — the BMS trickle-recovery circuit needs time to bring each cell back above the acceptance floor before normal charging begins.
