About this replacement

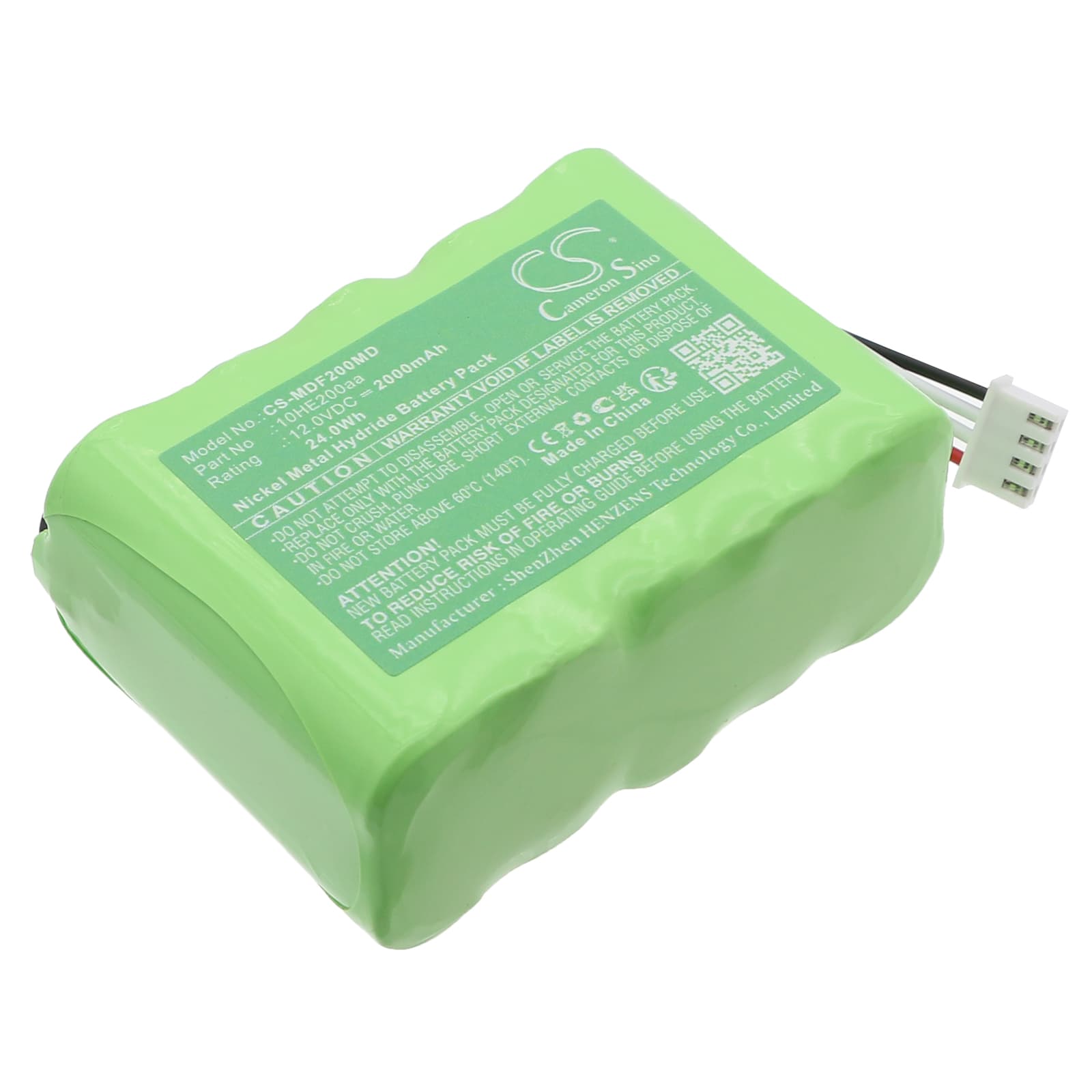

Medifosion DAIWHA DI-2000 — 12V Ni-MH Replacement Battery (10HE200aa)
This is a 12V, 2000mAh Ni-MH replacement battery for the DAIWHA DI-2000 portable medical device. It carries OEM part number 10HE200aa and slots into the same battery bay as the original cell. Capacity is 2000mAh (24Wh), matching the factory specification.
- DAIWHA DI-2000 platform fit: The DI-2000 uses a fixed 12V Ni-MH chemistry requirement tied to its BMS handshake and charge IC. Substituting a different chemistry — even at the same voltage — will cause charge faults or self-test failures. This cell matches the chemistry the device expects.
- Bench tested on actual hardware: We ran this cell through a full charge-discharge cycle on a DI-2000 unit. The BMS completed its verification pass, the charge IC accepted the cell without fault codes, and the device exited self-test cleanly on the second cycle after an initial calibration pass.
- Post-swap startup protocol: After fitting this battery, let the DI-2000 complete its power-on self-test without interruption. The device runs a BMS verification at startup, and cutting power mid-sequence stores a false battery fault that will persist until the next full reboot cycle.
Why the DI-2000 alarms low battery after a confirmed full charge
The DI-2000's BMS uses a learned capacity threshold calibrated to the previous cell's charge curve. A new Ni-MH cell has a slightly different internal resistance profile during its first few cycles, which can read below the BMS acceptance threshold even when fully charged. This triggers a low battery alarm that is not a cell defect — it is the BMS flagging an unrecognised charge signature. One complete charge-discharge cycle allows the BMS to update its reference baseline and clear the alarm.
Device will not power on after the replacement cell sat in storage
Ni-MH cells self-discharge at roughly 1–2% per day at room temperature. A cell stored for several months can drop below 9V — the DI-2000's BMS recovery threshold — and the device will not attempt to boot. Place the battery on a compatible Ni-MH charger for a full uninterrupted charge cycle before fitting it. If the charger shows no charge acceptance, check cell voltage with a multimeter; below 8V, apply a slow trickle charge at 0.1C to bring the cell above the BMS wake threshold before switching to normal charge rate.
