About this replacement

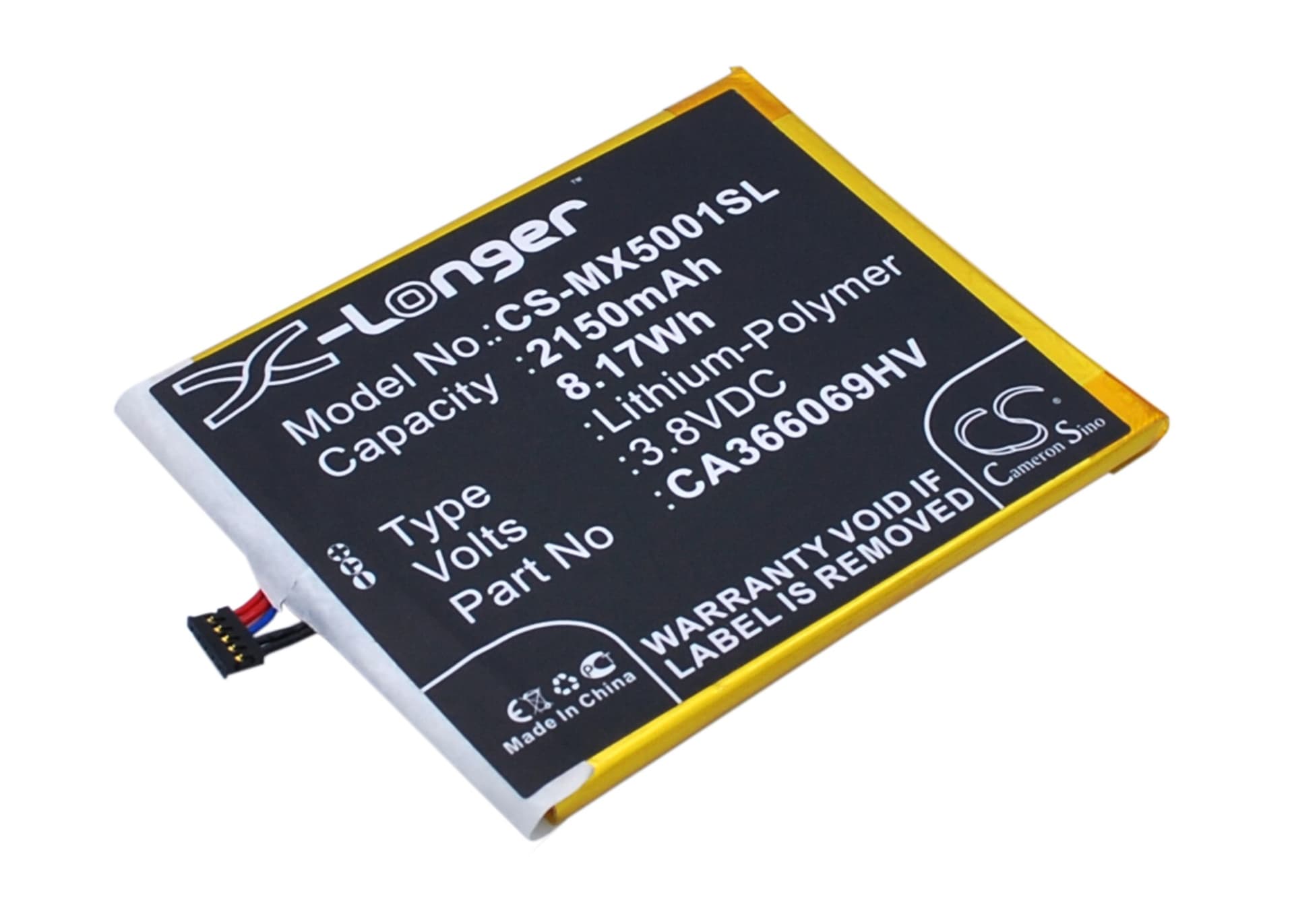

Medion Life X5001 — 3.8V Li-Polymer Replacement Battery (CA366069HV)
This is a 3.8V, 2150mAh Li-Polymer battery for the Medion Life X5001 Android smartphone. It replaces part number CA366069HV directly. Swap it in when the original cell can no longer hold a usable charge through a normal day of calls, messaging, and apps.
- Life X5001 fit: Both "Life X5001" and "X5001" listings refer to the same hardware revision. The battery connector, BMS handshake voltage, and cell dimensions — 70.10 × 58.87 × 3.70 mm — match the OEM tray without modification.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on the X5001 board. The BMS accepted the cell on first connect, charge IC ramped to full current without fault codes, and the fuel gauge IC tracked state-of-charge without dropout.
- First-cycle calibration on the X5001: After installation, disable fast charging for one complete discharge-charge cycle. The fuel gauge IC is still calibrated to the old cell's discharge curve. Running one slow cycle first lets the coulomb counter reset against the new cell before fast charging pushes higher current into an uncalibrated state.
Sudden shutdown at 20–30% on the Life X5001 after a cell swap
This happens because the fuel gauge IC is still reading the old cell's voltage-to-capacity curve. When the new cell hits a steeper voltage drop under modem or screen load, the phone sees voltage fall below its shutdown threshold before the displayed percentage reaches zero. The OS shuts down to protect the board even though the gauge still shows charge remaining. One full slow discharge-charge cycle — without fast charging — resets the coulomb counter and maps the new cell's actual curve, stopping the premature cutoffs.
Battery percentage jumping erratically after fitting the CA366069HV
Erratic percentage readings after a cell swap are a fuel gauge IC recalibration issue, not a fault with the new cell. The coulomb counter accumulated error data from the degraded original battery over hundreds of cycles, and it carries that error forward to the new cell immediately. The fix is straightforward: let the phone discharge to automatic shutdown, then charge uninterrupted to 100% at standard speed with the screen off. After that single full cycle the gauge stabilises and percentage jumps stop.
