About this replacement

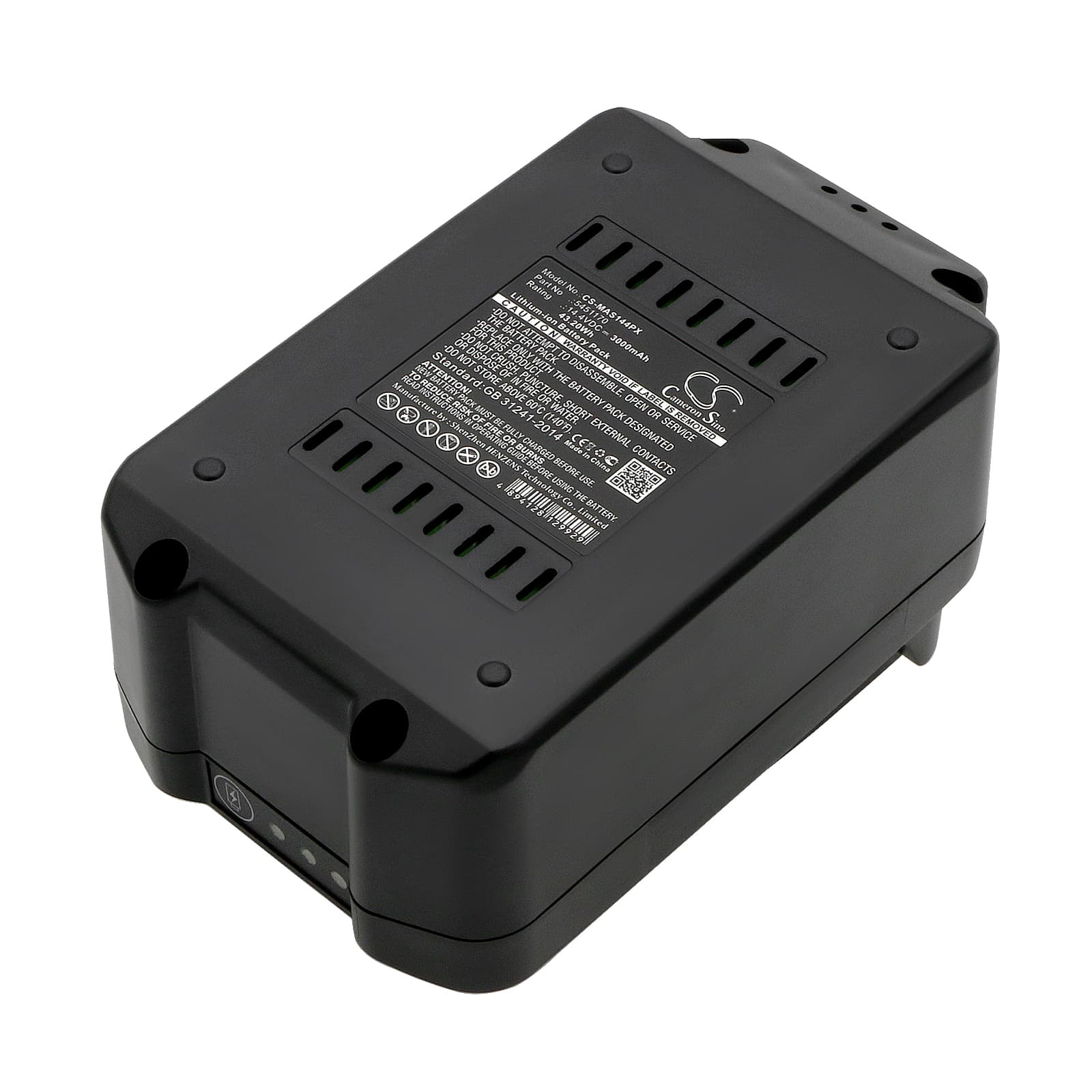

Meister Craft MAS144 / MAS144VL — 14.4V Li-ion Replacement Battery (5451170)
This is a 14.4V 3000mAh Li-ion battery for Meister Craft cordless tools — specifically the MAS144, MAS144VL, and 5450880 models. It slots into the same port as the original pack and communicates with the same BMS handshake the charger expects. Capacity is 3000mAh (43.2Wh), matching the original specification.
- MAS144 and MAS144VL compatibility: Both models run on the same 14.4V rail and share the same connector pinout and BMS communication protocol. The 5450880 part number is the OEM battery these tools shipped with — this pack is built to the same electrical spec.
- Bench tested on actual hardware: We cycled this pack through motor-start inrush loads on a 14.4V drill platform. The BMS handled repeated trigger-pull current spikes without tripping into overcurrent cutoff, and cell voltage recovery between draws stayed within the expected window.
- First-use load conditioning: On first use, run the tool at half load for two cycles before any maximum-torque applications. This lets the BMS profile the motor's inrush current draw and calibrate overcurrent protection thresholds before you push it hard.
BMS cutoff on drill motor-start inrush surge
When you pull the trigger on a drill or impact driver, current spikes sharply in the first milliseconds before the motor reaches speed. A new pack — especially one coming out of storage — can have a stiff BMS that interprets this inrush as an overcurrent fault and shuts the pack down immediately. The fix is to run two or three short, low-load cycles first so the BMS accumulates inrush data and widens its fault threshold. After conditioning, the pack should sustain full trigger pulls without cutting out.
Charger not recognising the pack after extended storage
Li-ion packs stored for several months can drop below 2.5V per cell — the minimum voltage most chargers need to begin a charge cycle. If the charger blinks red or shows no activity, the pack has likely self-discharged past the charger's acceptance threshold. Some Meister Craft chargers have a recovery or "boost" mode — check the charger manual for a reset sequence, usually a long press or a specific light pattern. If cell voltage has dropped below 2.0V per cell, recovery is not possible and the pack should be replaced.
