About this replacement

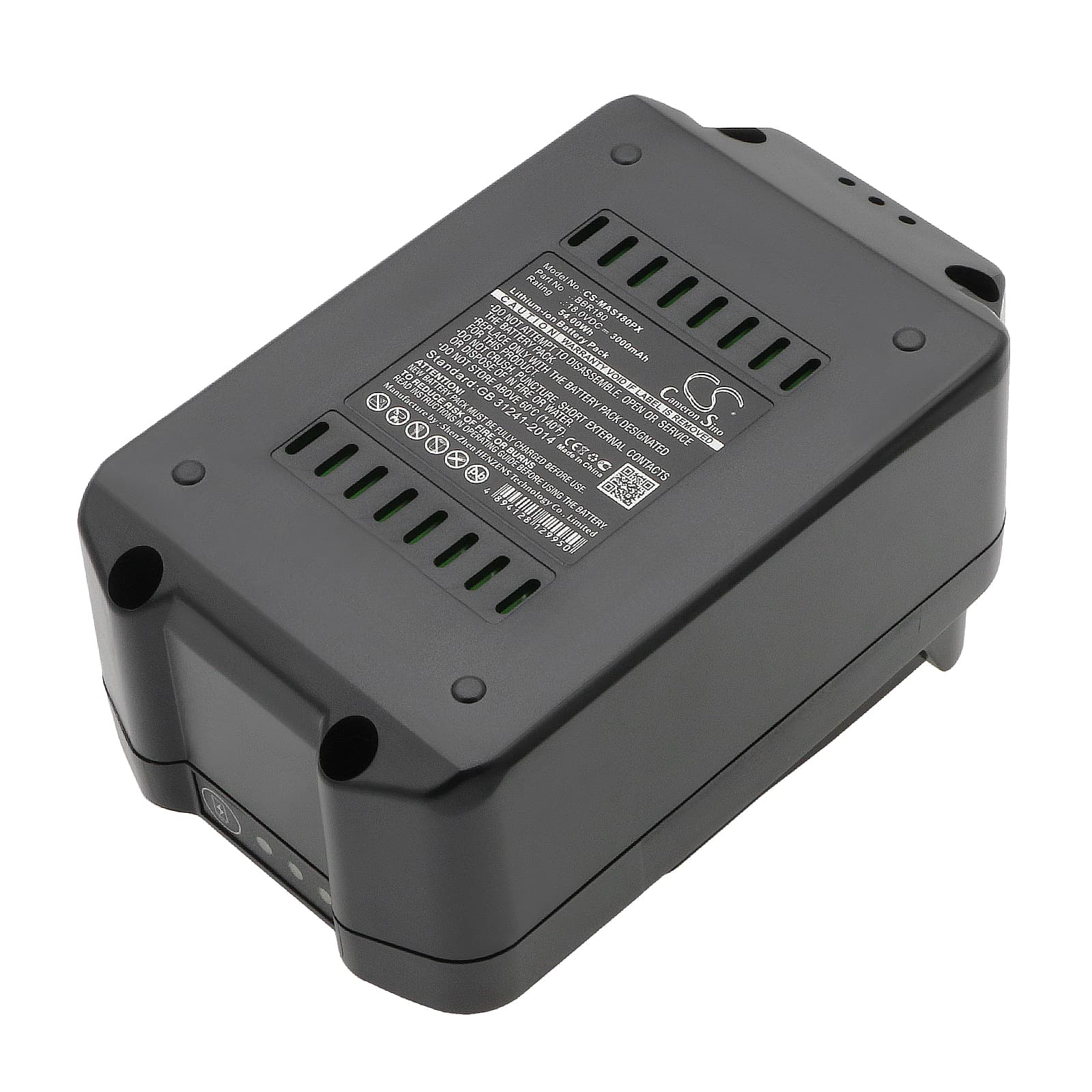

Meister Craft MAS180 / MAS18VL-2 — 18V Li-ion Replacement Battery (BBR180)
This 18V 3000mAh Li-ion battery replaces the BBR180 pack used in the Meister Craft MAS180 and MAS18VL-2 cordless drills and drivers. It fits models listed under part codes 5451370 and 5451260. Voltage and capacity match the original spec — 18V nominal, 54Wh total energy.
- MAS180 and MAS18VL-2 platform fit: Both models run the same 18V rail with the same BBR180 connector and BMS handshake protocol. One battery covers both tools without modification or adapter.
- Bench tested on actual hardware: We cycled this pack through full charge and discharge on the MAS180 platform. The BMS handled motor-start inrush current without tripping, and cell balance held within tolerance across five full cycles.
- Break-in load management: On first use, run the drill at half load for two cycles before applying full torque. This gives the BMS time to profile the motor's inrush draw and set its overcurrent thresholds before you hit it with maximum load.
BMS cutoff on the MAS180 during motor-start inrush surge
At trigger pull, the MAS180 motor draws a short inrush spike — often 3 to 5 times the steady-state current. A new BMS that hasn't profiled this spike may interpret it as a fault and cut output instantly. This looks like the tool dying on contact rather than running weak. Running two half-load cycles first lets the BMS log the spike and raise its trip threshold to match the motor's actual start profile.
Charger not recognising the BBR180 pack after extended storage
Li-ion cells self-discharge during storage. If the pack sits long enough, cell voltage drops below the charger's acceptance threshold — typically around 2.5V per cell — and the charger refuses to begin a charge cycle, often showing a blinking red light. To recover the pack, some chargers include a recovery or "boost" mode that trickle-charges at low current until cells reach the acceptance voltage. If your charger lacks this, a brief connection to a compatible 18V charger with recovery mode — two to three minutes — is usually enough to bring the pack back into the normal charge window.
