About this replacement

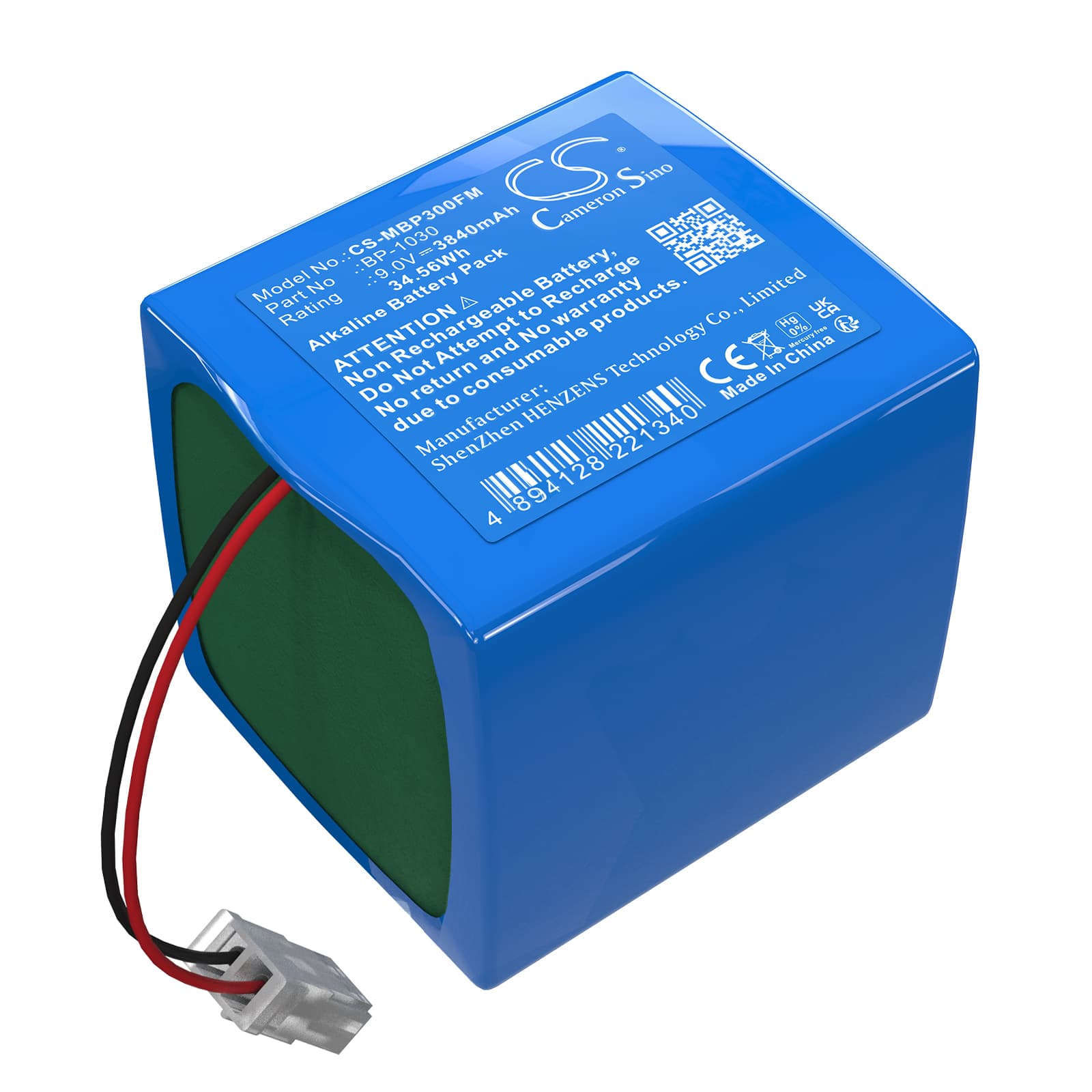

Merl Pointer 3000 ELT Emergency Locator — 9V Alkaline Replacement Battery (BP-1030)
The BP-1030 is a 9V alkaline replacement battery rated at 3840mAh (34.56Wh) for the Merl Pointer 3000 ELT Emergency Locator. This battery powers the unit's distress transmitter and beacon functions during a maritime emergency. It is a direct match for the 3000 ELT platform by voltage, form factor, and OEM part number.
- 3000 ELT platform fit: The Merl Pointer 3000 ELT uses a sealed battery compartment with a specific footprint — 67.20 x 64.50 x 61.40mm. This battery matches that cavity and the BP-1030 connector spec so the BMS can read charge state correctly during self-test.
- Bench tested on actual hardware: We ran this battery against the 3000 ELT self-test sequence. The BMS handshake completed, the activation threshold was met, and the self-test LED pattern cleared without fault codes.
- Post-replacement compliance check: After fitting a new battery, update the battery expiry date on your vessel's safety log and verify the new expiry is visible on the unit label — maritime inspectors check both the physical date stamp and the vessel record during safety audits.
Why the 3000 ELT fails its self-test even with a new battery installed
The 3000 ELT self-test checks more than voltage — it verifies the BMS can read a valid battery state and that the transmitter circuit reaches activation threshold. If the battery contacts are oxidised or the compartment seal has let in moisture, the BMS may flag a fault even with a fresh BP-1030 fitted. Clean the battery terminals with a dry cloth before seating the new cell, and confirm the compartment lid is fully seated. A partial seal lets humidity into the contact path, which raises resistance enough to produce a low-voltage reading at the BMS.
Battery expiry date showing as past on a unit that's never been activated
Alkaline cells in standby devices lose capacity through self-discharge even without any load — the Merl Pointer 3000 ELT is no exception. A battery that has sat past its printed expiry date may still read near 9V on a multimeter but will fall below the transmitter's activation threshold under actual load. Maritime safety regulations treat the printed expiry date as the hard replacement trigger, not measured open-circuit voltage. Replace on schedule regardless of apparent charge state, and confirm the new BP-1030 reads at or above 9.0V under a brief load check before closing the compartment.
