About this replacement

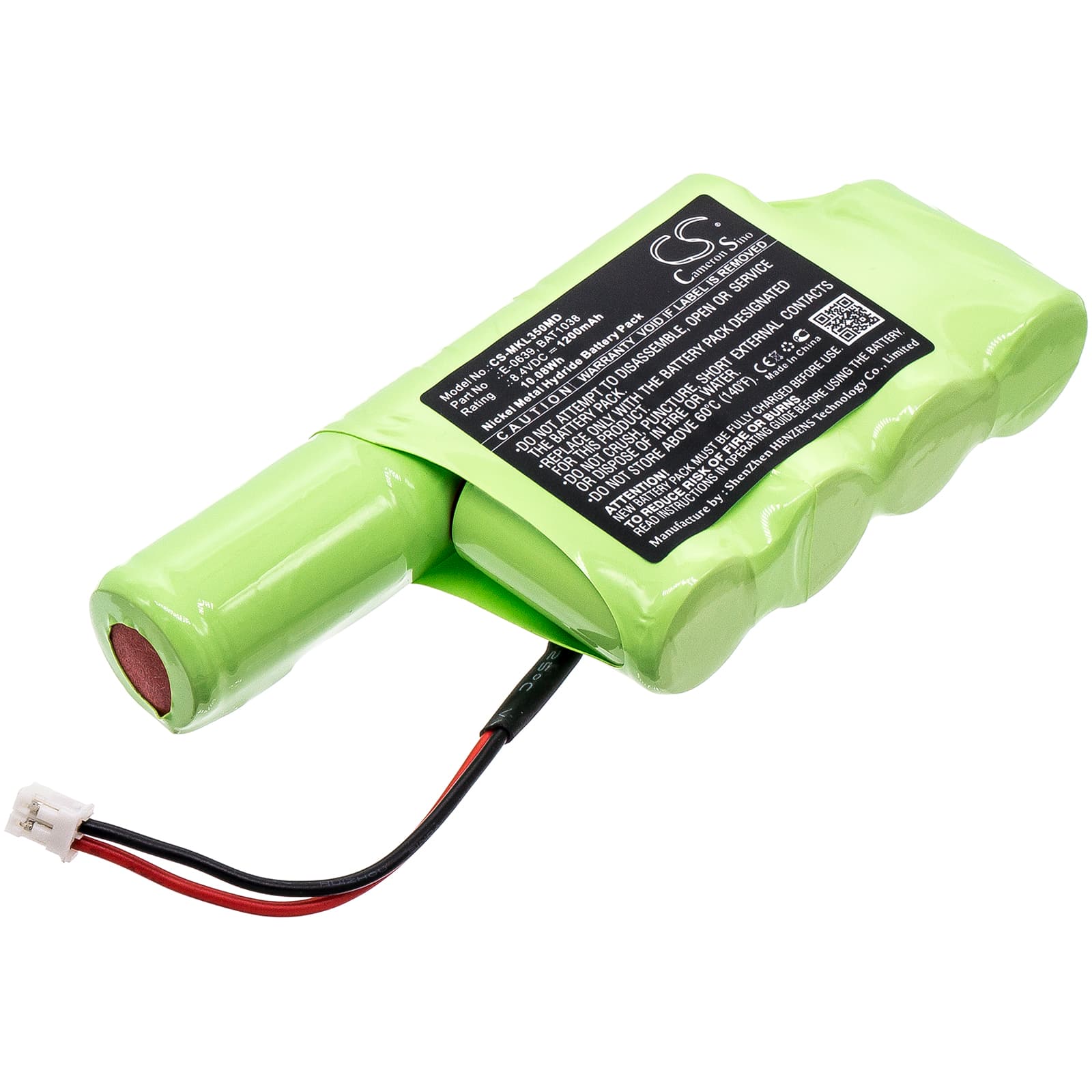

Micro Medical MicroLab MK8 / ML3500 — 8.4V Ni-MH Replacement Battery (E-0639)
This 8.4V 1200mAh Ni-MH battery replaces part number E-0639 (also listed as 292099 and BAT1038) in the Micro Medical MicroLab MK8 spirometer, ML3500, and MicroLab MKB. These are portable pulmonary function testing devices used in clinical settings to measure lung capacity and airflow. Voltage and capacity match the original cell exactly.
- MK8 / ML3500 / MKB platform fit: All three models share the same battery bay geometry, connector pinout, and 8.4V operating rail. The BMS in each unit reads cell chemistry the same way, so one part number — E-0639 — covers the entire range without modification.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on the MK8 platform. The BMS completed its handshake, accepted the full charge without tripping a fault, and held voltage through the load profile the spirometer applies during an active test session.
- Post-installation self-test protocol: After fitting this battery, let the MicroLab complete its full power-on self-test sequence without interruption. The device runs a BMS verification routine at startup — cutting power mid-sequence logs a battery fault that will persist until the next clean reboot.
Low battery alarm triggering immediately after a confirmed full charge
The MicroLab's BMS uses a voltage threshold calibrated to a conditioned Ni-MH cell. A new replacement cell has not yet established its resting voltage profile, so the BMS can read it as low even when fully charged. Run one complete charge-discharge cycle before using the device clinically. After that conditioning cycle, the resting voltage stabilises above the alarm threshold and the warning clears. Do not dismiss this as a faulty battery until at least one full cycle is completed.
Device will not power on after the replacement cell has been in storage
Ni-MH cells self-discharge at roughly 1–2% per day. A cell that has been warehoused for several months can drop below the MicroLab's BMS recovery threshold — typically around 6.0V for an 8.4V pack — at which point the BMS will not allow startup. Place the battery in a compatible Ni-MH charger and apply a slow trickle charge for 30–60 minutes before reinserting it. Once the pack voltage clears 7.0V, the BMS will accept it and the device will boot normally.
