About this replacement

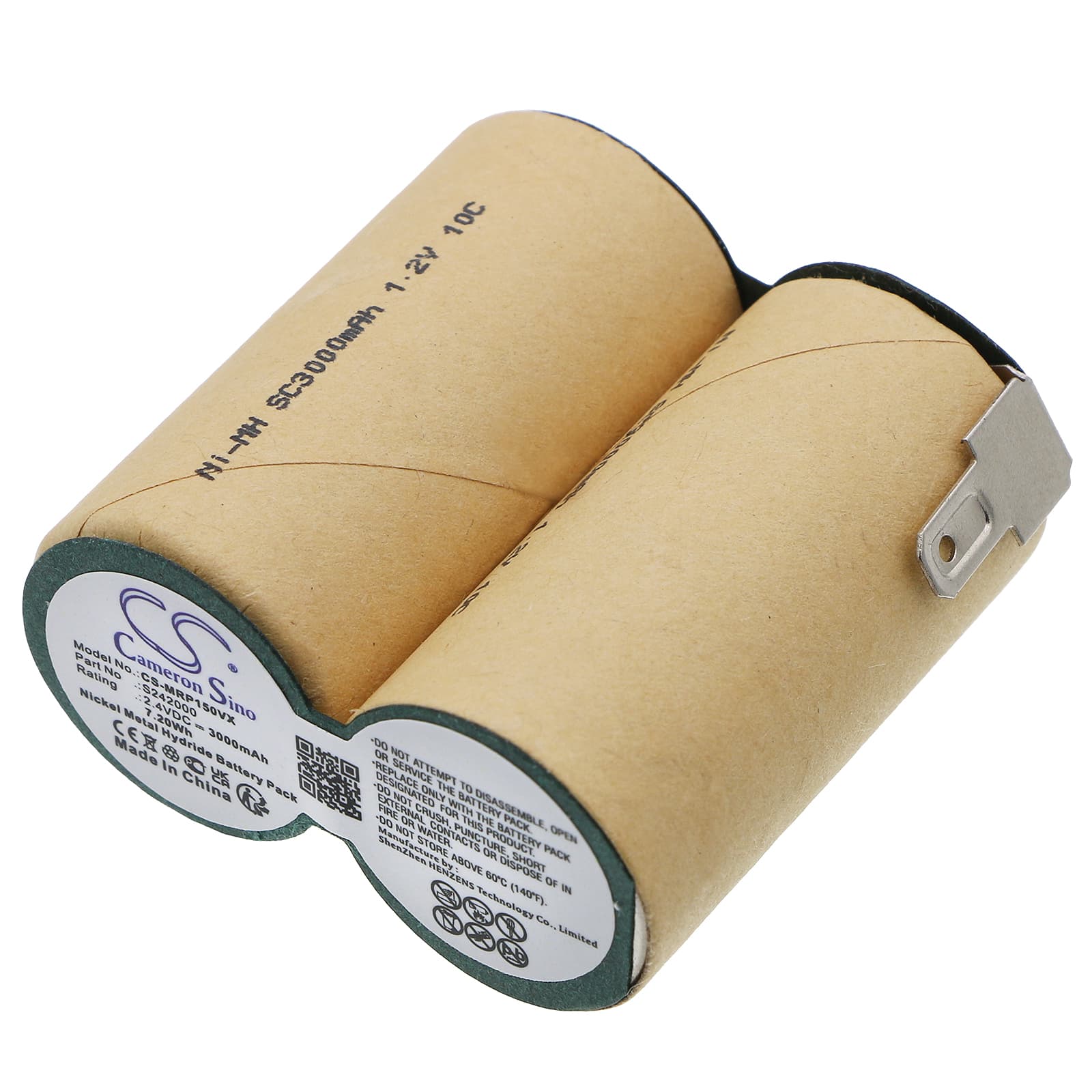

Miele Staubsauger EP1500CS — 2.4V Ni-MH Replacement Battery (S242000)
This is a 2.4V, 3000mAh Ni-MH replacement battery for the Miele Staubsauger EP1500CS cordless handheld vacuum. It replaces OEM part S242000, fitting directly into the EP1500CS battery compartment. When the original cell loses capacity or stops holding charge, this cell restores the vacuum to working condition.
- EP1500CS platform fit: The EP1500CS runs a low-voltage 2.4V Ni-MH cell to power its compact motor and keep the unit lightweight for handheld use. The S242000 form factor and connector match this platform — no modification needed.
- Bench tested on actual hardware: We ran this cell through full charge and discharge cycles on the EP1500CS and monitored motor draw under both hard floor and carpet load. The BMS held within spec at peak draw and the cell reached rated capacity after two conditioning cycles.
- Dock charge habit on the EP1500CS: Leaving this vacuum on the charging dock between every use accelerates capacity fade in Ni-MH cells. Charge it fully, then remove it from the dock. Reconnect only when the cell is depleted — this matters more for Ni-MH than for lithium chemistries.
Suction dropping before the battery indicator shows low on the EP1500CS
Ni-MH cells at end of life don't fail sharply — they sag under load. The EP1500CS motor draws more current when the filter is partially blocked, and a degraded cell responds with a voltage drop before the indicator circuit registers low. The vacuum loses suction noticeably while the indicator still reads normal. Replacing the S242000 cell fixes this only if the filter is clean — a clogged filter causes the same symptom on a fresh cell.
Motor cuts out mid-use then recovers after a few seconds
This is a BMS overcurrent trip, not a mechanical fault. When sustained suction restriction forces the motor to draw beyond the cell's rated current, the protection circuit cuts output to prevent damage. The cell recovers once current drops and the BMS resets — typically within a few seconds. Check and clean the filter first. If the cutout continues on a clean filter with a new cell, the motor itself may be drawing above rated current.
