About this replacement

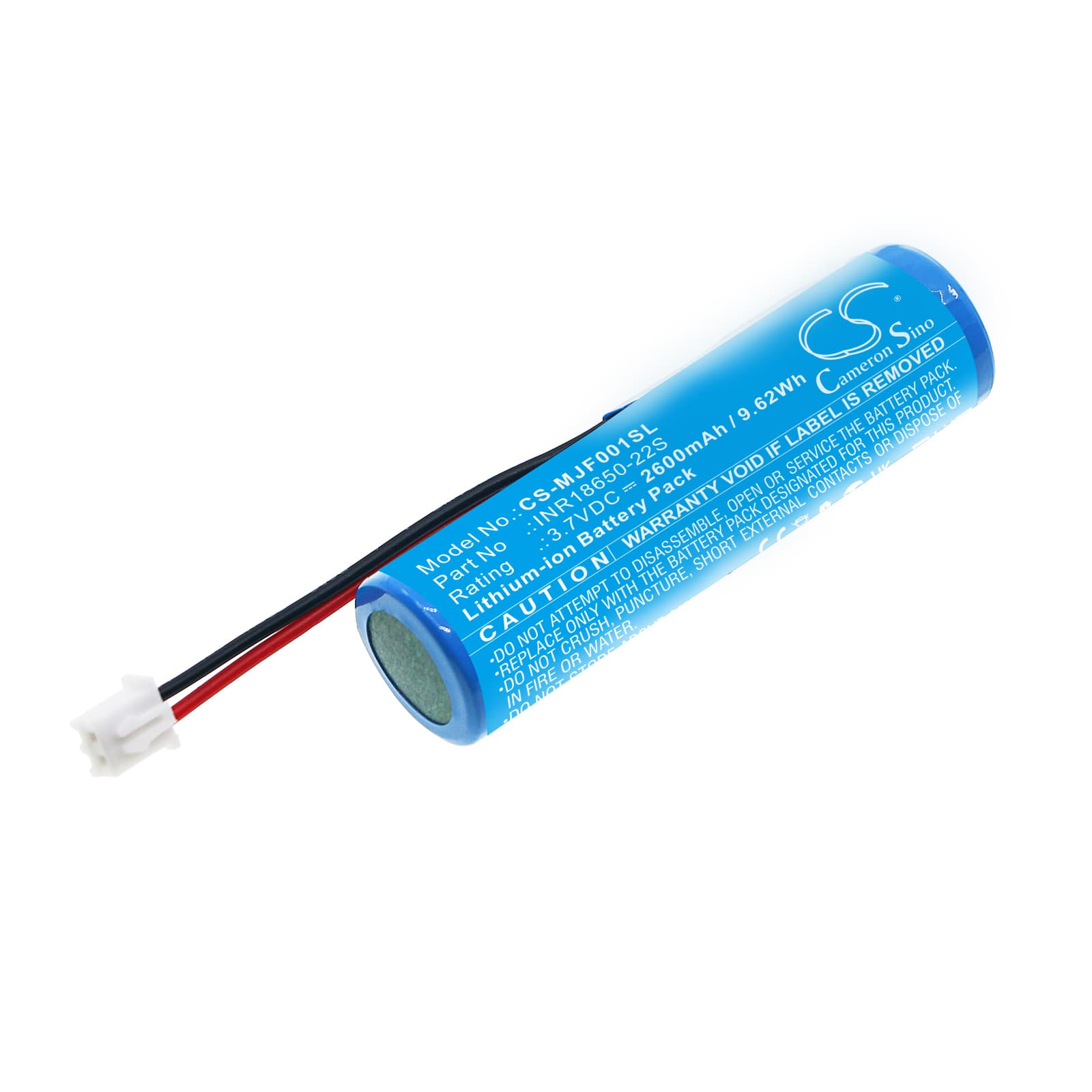

MIJA Automatic Fragrance MJXFJ01XW — 3.7V Li-ion Replacement Battery (INR18650-22S)
This is a 3.7V, 2600mAh Li-ion 18650-format replacement battery for the MIJA Automatic Fragrance dispenser (MJXFJ01XW). It powers the timed spray motor and electronic control board. Capacity figure is sourced from the product specification — 9.62Wh total energy.
- MJXFJ01XW compatibility: The MJXFJ01XW uses a single 18650 cell on a 3.7V rail. The BMS on this cell handles the low-current motor pulse load and the standby draw of the timer circuit without tripping into protection mode.
- Bench tested on actual hardware: We cycled this cell through repeated timed spray sequences and monitored BMS response under motor-start current spikes. The protection circuit held stable across charge and discharge cycles without false cutoff.
- Port dry-out before charging: If the dispenser has been mounted near a sink or diffuser mist, dry the USB charging port for at least 30 minutes before connecting power. Moisture bridging the contacts can trigger a BMS protection fault that reads as a completely dead battery rather than a charging error.
Why the MJXFJ01XW spray motor weakens before the battery indicator drops
The spray motor draws a short, sharp current spike each time the dispenser fires. As a Li-ion cell ages and internal resistance climbs, that spike causes a momentary voltage sag. The BMS sees a brief undervoltage event and may throttle output before the resting voltage has dropped enough to trigger the low-battery indicator. The result is a weak or incomplete spray while the indicator still shows charge. Replacing the cell resets internal resistance and restores full motor drive voltage.
Battery gauge drift from daily top-up charging
Plugging the MJXFJ01XW in for short top-offs without ever fully discharging causes the fuel gauge to lose track of true capacity over time. The BMS calibration drifts, so the device reports full charge at a lower actual voltage than intended. This shows up as the dispenser cutting out sooner than expected between charges. Run the battery down to the low-battery warning, then charge to full in one uninterrupted session to re-anchor the gauge — 4.2V at the cell terminals confirms a complete charge.
