About this replacement

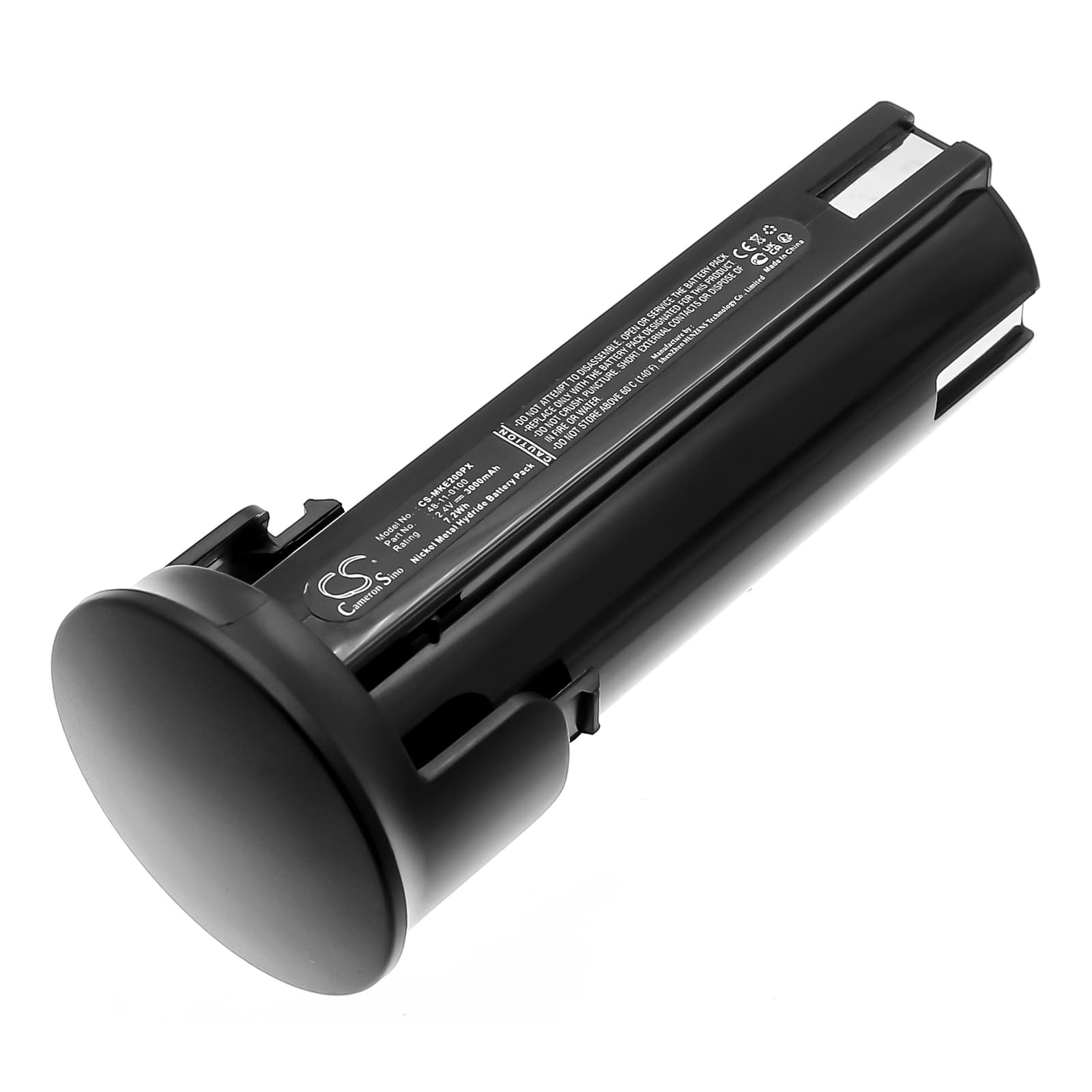

Milwaukee 6550-20 / JAN-38 / JAN-39 — 2.4V Ni-MH Replacement Battery (48-11-0100)
This is a 2.4V, 3000mAh Ni-MH replacement battery for the Milwaukee 6550-20 cordless drill/driver and related models including the JAN-38, JAN-39, and JAN-46. It replaces OEM part number 48-11-0100. The battery slots into the same bay as the original and runs the same 2.4V power rail the tool's motor controller expects.
- 6550-20 series compatibility: The 6550-20, JAN-38, JAN-39, and JAN-46 all share the same 2.4V Ni-MH cell configuration, connector geometry, and pack housing. One battery fits all listed models because Milwaukee built this range around a single cell platform — no adapters, no modifications required.
- Bench tested on actual hardware: We ran this pack through charge and discharge cycles on the 6550-20 motor controller. The pack accepted a full charge without fault flags and the BMS held stable current delivery through repeated trigger pulls at varying torque loads.
- Motor inrush conditioning on first use: On first use, run the drill at half load for two cycles before applying full torque. This lets the BMS profile the motor's inrush current draw and set overcurrent protection thresholds accurately — skipping this step can cause nuisance cutoffs on hard starts.
BMS overcurrent trip on trigger-pull inrush in the 6550-20
When you pull the trigger on a stalled or heavily loaded drill, the motor draws a short spike of current far above its running draw — this is inrush current. On a new or recently stored Ni-MH pack, the BMS may read that spike as a fault and cut power before the motor gets up to speed. The protection threshold is calibrated during the first few discharge cycles. Running two break-in cycles at half load allows the BMS to distinguish a normal start spike from a genuine overcurrent event.
Charger not recognising a new 48-11-0100 pack after storage
Ni-MH cells self-discharge during storage, and if the pack voltage drops too low the charger's acceptance circuit will not initiate a charge cycle — the charger either shows no response or a fault light. This is not a defective battery. A brief trickle charge at low current — often called a recovery or conditioning mode on compatible Milwaukee chargers — raises the cell voltage back above the acceptance threshold, typically around 1.0V per cell. If your charger lacks a conditioning mode, place the pack in a compatible charger and check for a green or standby indicator within 30 minutes; if absent, try a different Milwaukee-compatible charger that supports Ni-MH recovery.
