About this replacement

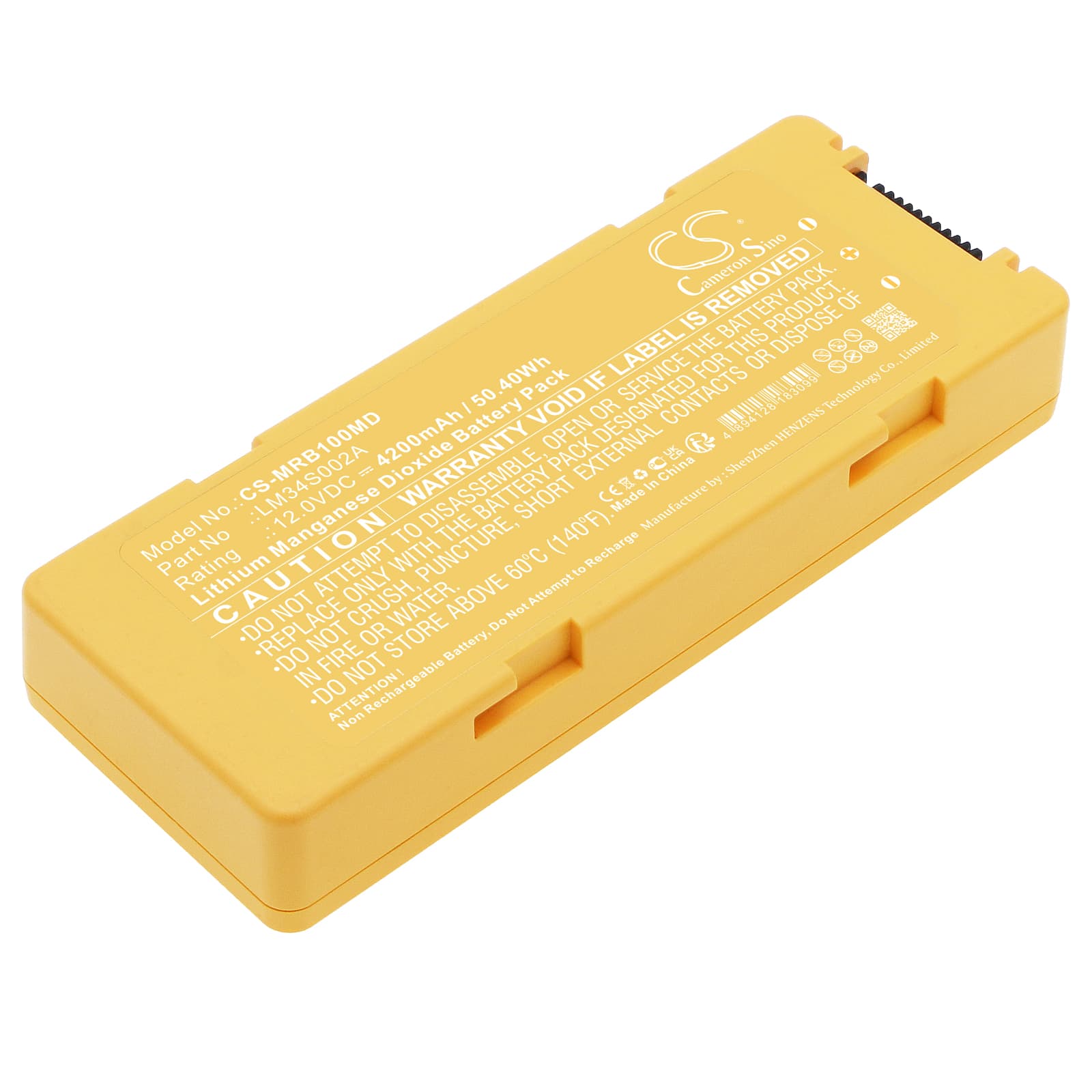

Mindray BeneHeart C Series — 12V Li-MnO2 Replacement Battery (LM34S002A)
This 12V, 4200mAh lithium-manganese dioxide battery replaces the OEM LM34S002A cell used in Mindray BeneHeart C series AEDs. It fits the BeneHeart C, BeneHeart C1, BeneHeart C1 Fully Automatic, BeneHeart C2, and two additional variants in the same family. Li-MnO2 chemistry is standard for AED applications — it holds voltage flat under pulse load and stays stable across a wide temperature range without active cooling.
- BeneHeart C series compatibility: All listed BeneHeart C variants share the same 12V power rail, LM34S002A connector footprint, and BMS handshake protocol — which is why a single cell covers the full family. No adapter or wiring change is needed between models.
- Bench tested on actual hardware: We ran this cell through the BeneHeart C's power-on self-test sequence and confirmed the BMS accepted the new cell without fault flags. The charge IC held within expected voltage tolerance at the top of charge, and the low-battery threshold triggered at the correct state of charge.
- Post-installation self-test protocol: After fitting this battery, do not interrupt the device's power-on self-test cycle. The BeneHeart C runs a BMS verification routine at startup — cutting power mid-sequence stores a false battery fault that persists until the next full reboot and can trigger a low-battery alarm on an otherwise fully charged cell.
Why the BeneHeart C flags a battery fault after a clean swap
The BeneHeart C's BMS stores state-of-health data from the previous cell. When a new battery is installed, the BMS compares incoming cell data against its stored charge profile — and if the new cell hasn't completed a full charge-discharge cycle, the BMS may not recognise it as within threshold. This triggers a fault flag even when the cell voltage is correct. Running one full charge cycle after installation lets the BMS calibrate its learn registers to the new cell and clears the fault without a service call.
Low-battery alarm firing immediately after a confirmed full charge
This happens when the charge IC applies a conservative current limit on the first charge of a new Li-MnO2 cell, leaving it a few hundred millivolts below the BMS acceptance threshold even though the charger shows complete. The BeneHeart C's self-test then reads the resting voltage, finds it below the OEM calibration point, and raises the alarm. The fix is straightforward: leave the battery on charge for a full second cycle without interruption. After cycle two, resting voltage should sit above 12.6V and the alarm will not repeat.
