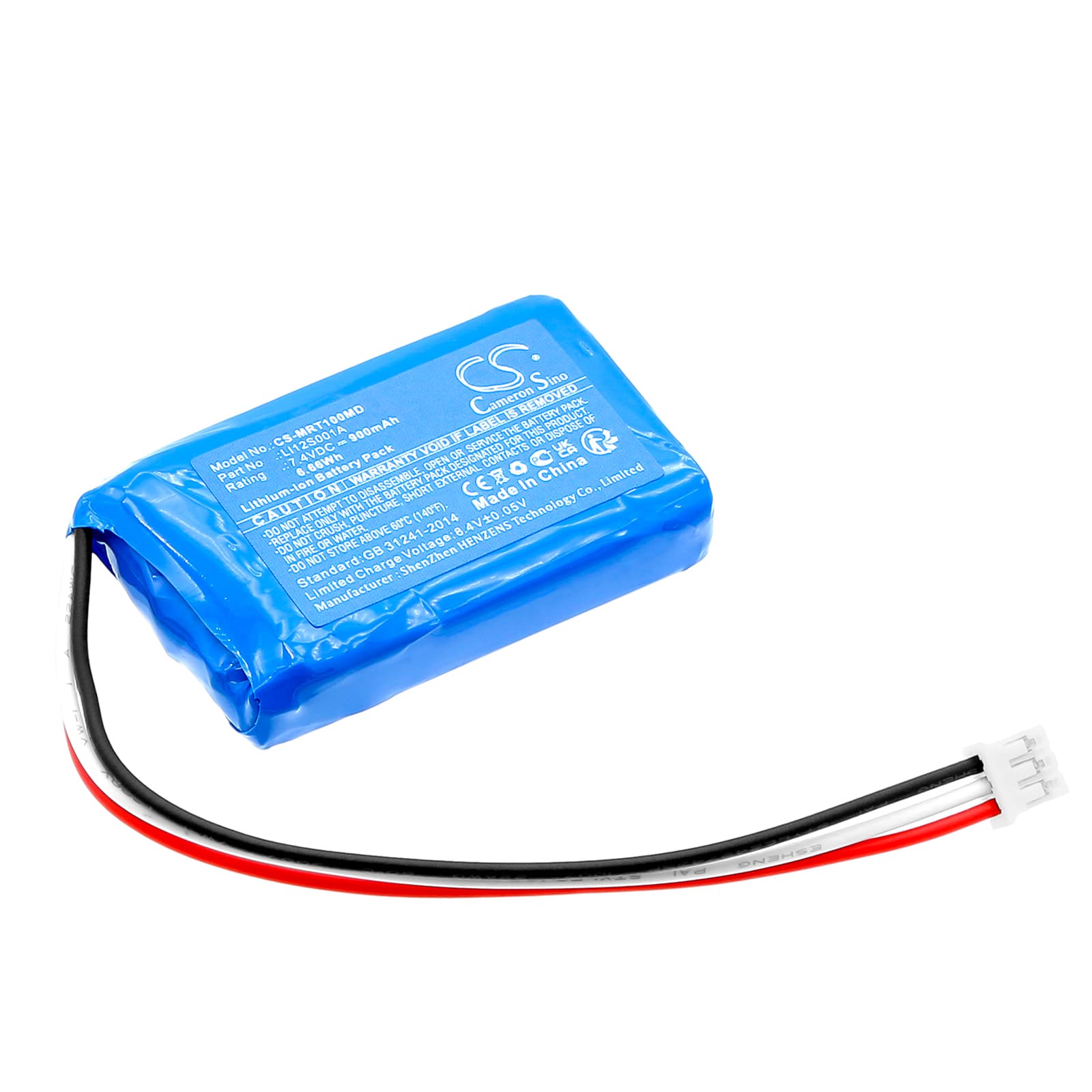

Mindray Beneview T1 Patient Monitor — 7.4V Li-ion Replacement Battery (801-92-81-000-25)
This 7.4V 900mAh Li-ion battery is a direct replacement for the Mindray Beneview T1 portable patient monitor. It powers continuous vital signs monitoring — heart rate, SpO2, blood pressure, and temperature — during transport and when AC power is unavailable. Replaces OEM part numbers 801-92-81-000-25, LI12S001A, 022-000157-00, and 801-9281-00025-00.
- Beneview T1 compatibility: The T1 platform runs a single-cell 7.4V nominal Li-ion pack with a proprietary BMS handshake. This replacement matches the cell voltage, connector pinout, and BMS communication protocol — the monitor reads state-of-charge correctly without throwing a battery fault code.
- Bench tested on actual hardware: We cycled this battery through the Beneview T1 power-on self-test sequence. The BMS reported accurate charge status from the first cycle, and the protection circuit responded correctly to load draw consistent with active monitoring conditions.
- Post-installation self-test protocol: After fitting this battery, allow the Beneview T1 to complete its full power-on self-test without interruption. Medical device BMS verification runs at startup — cutting power during this sequence logs a false battery fault that persists until the next clean reboot.
Why the Beneview T1 shows a battery fault after a confirmed full charge
The T1's BMS applies an OEM-calibrated charge acceptance threshold. A new replacement cell has a slightly different internal resistance profile than a conditioned pack, so the BMS can flag a fault even when the cell is fully charged. This is a learn-cycle issue, not a defective battery. Run one complete charge-discharge cycle before clinical deployment. After that cycle, the BMS recalibrates its threshold to the new cell's chemistry and the fault clears.
Beneview T1 won't power on after the replacement battery sat in storage
Li-ion cells self-discharge during storage. If the cell voltage drops below approximately 2.5V per cell — the BMS deep-discharge lockout threshold — the monitor will not power on at all. The fix is to connect the battery to the Beneview T1 while the unit is on AC mains power and leave it charging for at least two hours before attempting a battery-only boot. The charge IC applies a trickle recovery current below the lockout threshold, and once the cell climbs back above 3.0V per cell, the BMS re-enables discharge and the monitor will start normally.
