About this replacement

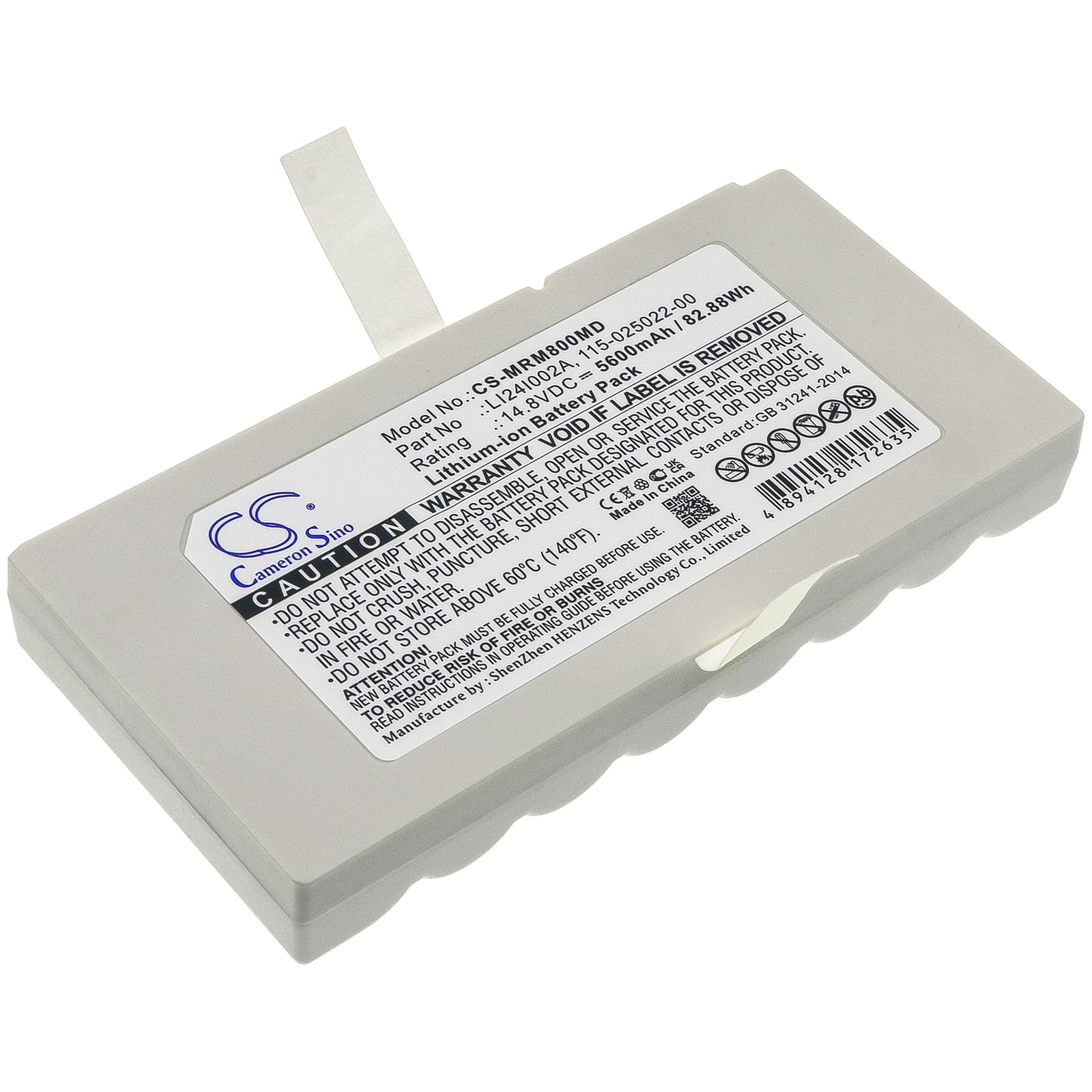

Mindray Consona N9 / M8 / M9 / ME7 Series — 14.8V Li-ion Replacement Battery (115-025022-00)
This 14.8V, 5600mAh Li-ion battery replaces OEM part numbers 115-025022-00 and LI24I002A in Mindray patient monitors. It fits the Consona N9, M8, M9, and ME7 platforms, along with four additional compatible models in the same series. These monitors are used for continuous vital signs observation in clinical environments where power continuity matters.
- Multi-model platform fit: The N9, M8, M9, and ME7 share the same 14.8V four-cell Li-ion architecture, battery bay connector, and BMS handshake protocol. One replacement SKU covers the full monitor family without electrical compromise.
- Bench tested on actual hardware: We ran this battery through full charge-discharge cycles on the N9 platform. The BMS completed handshake without fault codes, charge acceptance reached rated capacity by cycle two, and protection thresholds responded correctly to simulated load drop.
- First-use self-test protocol: After installation, allow the device to complete its full power-on self-test cycle without interruption. The monitor's BMS runs a verification sequence at startup — breaking power during this window creates a persistent false battery fault that will not clear until the next complete reboot.
Charge indicator stalling below 100% on the first charge cycle
Mindray monitors use a conservative charge IC profile that applies a reduced current ceiling on cells it hasn't profiled yet. A fresh replacement cell will often stall at 85–95% on the first charge while the IC gathers impedance data. This is not a fault — it resolves automatically after one complete charge-discharge cycle. Run the battery down to the low-battery alert threshold, then charge uninterrupted to completion before returning it to clinical rotation.
Device will not power on after battery sat in storage
Li-ion cells self-discharge over storage time. If the cell voltage drops below the BMS recovery threshold — typically around 2.5V per cell, or approximately 10V pack voltage — the monitor's protection circuit blocks startup entirely. The device will show no response, not even a charge indicator flash. Connect the charger and leave it undisturbed for 20–30 minutes to allow the charge IC to trickle-charge the pack above the recovery floor before the BMS will permit normal operation.
