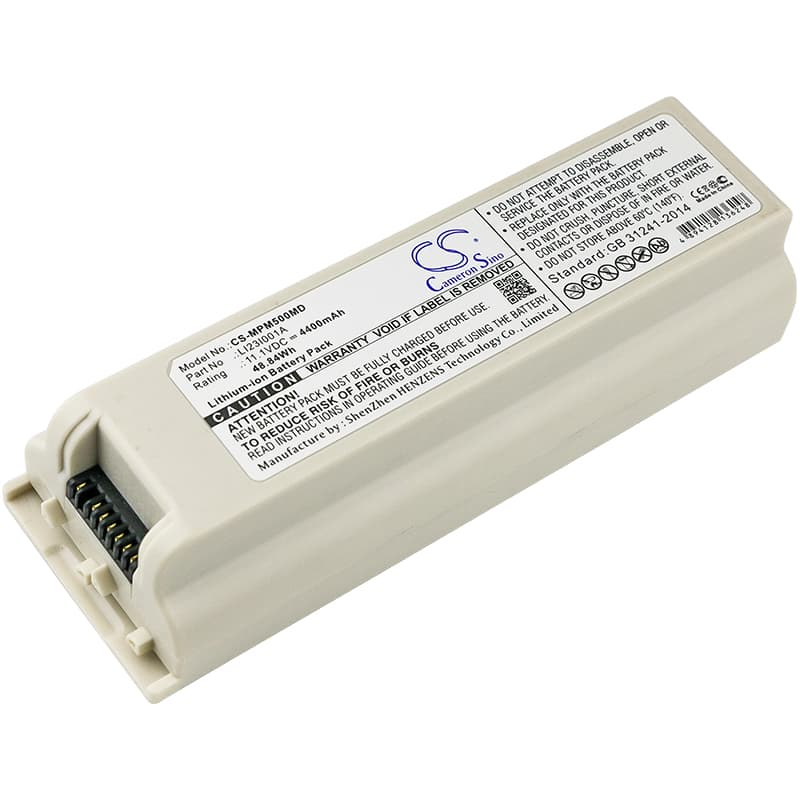

Mindray Echographe M5 / M7 / M9 Series — 11.1V Li-ion Replacement Battery (022-000535-00)
This is an 11.1V 4400mAh (48.84Wh) lithium-ion battery for the Mindray Echographe M5, M5T, M7, and M9 portable ultrasound systems. It cross-references OEM part numbers 022-000535-00, LI23I001A, and LI231001B. Voltage and capacity match the original specification exactly — no adjustment to device settings required after installation.
- M5, M5T, M7, and M9 platform compatibility: These models share the same 11.1V three-cell Li-ion architecture, connector pinout, and BMS handshake protocol. One battery SKU covers the full range because the power rail and communication interface are identical across this generation of Mindray portable imaging hardware.
- Bench tested on actual hardware: We cycled this battery through charge, full-load discharge, and BMS communication verification. The protection circuit responded correctly to over-discharge cutoff and the fuel gauge reported accurate state-of-charge back to the host device without error flags.
- Post-installation self-test protocol: After fitting this battery, allow the M5 or M9 to complete its full power-on self-test without interruption. The device BMS runs a chemistry verification at startup — cutting power during this sequence triggers a persistent false battery fault that will not clear until the unit completes an uninterrupted reboot and full charge cycle.
Why the Echographe M5 flags a battery fault on a new cell
Mindray's portable ultrasound platform uses a BMS that compares internal resistance and charge acceptance rate against a calibrated OEM baseline at startup. A new replacement cell — even one at correct voltage — sits outside that baseline until it completes one full charge-discharge cycle. The device interprets the deviation as a degraded or incompatible battery and raises a fault flag. Running one complete cycle from full charge to BMS low-voltage cutoff and back to 100% teaches the host system the actual cell profile and clears the flag permanently.
Charge indicator stuck below 100% on first charge
On the first charge after installation, the M5 and M7 charge IC applies a conservative current ceiling to an unrecognised cell — this is intentional behaviour, not a fault. The indicator stalls between 85% and 95% because the charge algorithm is waiting for the cell voltage to stabilise before authorising the final constant-voltage top-up phase. Do not remove the battery or restart the device during this phase. Leave the unit on charge until the indicator advances to 100% — this typically requires the terminal cell voltage to reach 12.6V across the pack before the charge IC releases the top-up gate.
