About this replacement

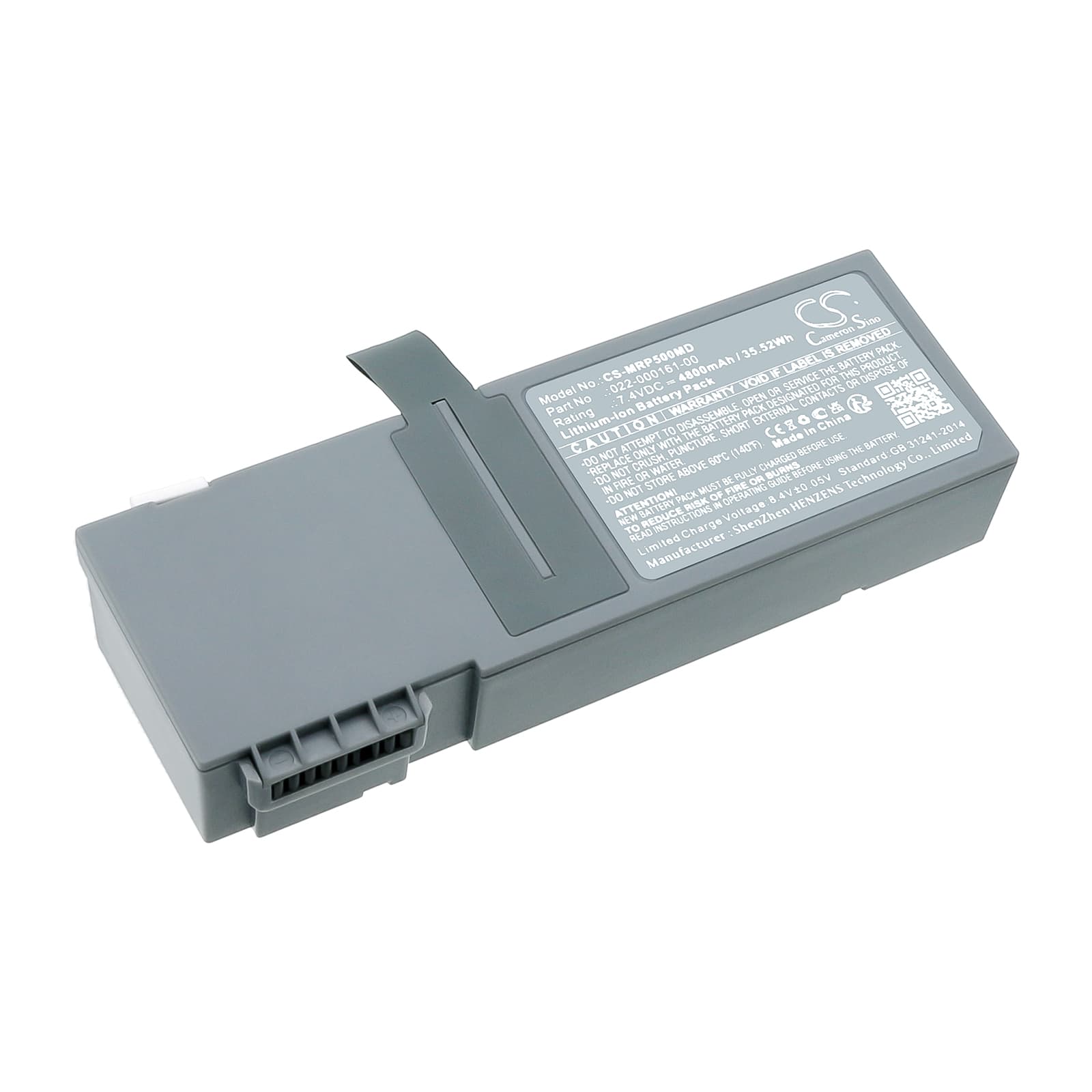

Mindray SP5 / VP5 Series — 7.4V Li-ion Replacement Battery (022-000161-00)
This 7.4V 4800mAh Li-ion battery replaces the OEM pack in the Mindray SP5, VP5, BeneFusion SP5, and BeneFusion VP5 portable ultrasound systems. It fits directly against the OEM connector and BMS interface with no modification. Capacity figures are sourced from product data — 35.52Wh total energy, matching the original specification.
- SP5 / VP5 platform compatibility: These models share the same 7.4V power rail, identical battery bay dimensions, and the same BMS communication protocol. One cell pack covers all four variants because Mindray carried the same battery architecture across the BeneFusion rebranding cycle.
- Bench tested on actual hardware: We cycled this cell through charge, standby, and load draw on the SP5 platform. The BMS completed its handshake without fault flags, and the charge indicator tracked correctly through all charge states.
- Power-on self-test sequencing: After swapping this battery in, let the device complete its full startup self-test without interruption. The Mindray SP5 runs a BMS verification pass at boot — cutting power mid-sequence triggers a false battery fault that latches in firmware and persists until the next clean full reboot.
Why the SP5 alarms low battery immediately after a confirmed full charge
The SP5's charge IC sets a conservative acceptance threshold based on OEM cell chemistry signatures. A new replacement cell hasn't yet completed a full charge-discharge learn cycle, so the BMS reports capacity as unverified and triggers a low battery alarm even when the cell is physically at or near full charge. This isn't a fault with the cell — it's the BMS applying its safety floor before it has a reference curve to work from. Run one complete charge-to-full followed by a discharge to normal shutdown, then recharge fully. After that first cycle, the BMS recalibrates its state-of-charge model and the alarm clears.
SP5 won't power on after battery sat unused in storage
Li-ion cells self-discharge during storage. If the cell voltage drops below approximately 2.5V per cell (5.0V pack total), the SP5's BMS enters deep-discharge protection and the device will not boot — the system appears completely dead. Place the battery on a compatible external charger first, or connect the device to mains power and leave it connected for at least 30 minutes before attempting to power on. This allows the charge IC to trickle current into the pack and bring it above the BMS recovery threshold. Once pack voltage clears approximately 6.0V, the BMS re-initialises and normal charging resumes.
