About this replacement

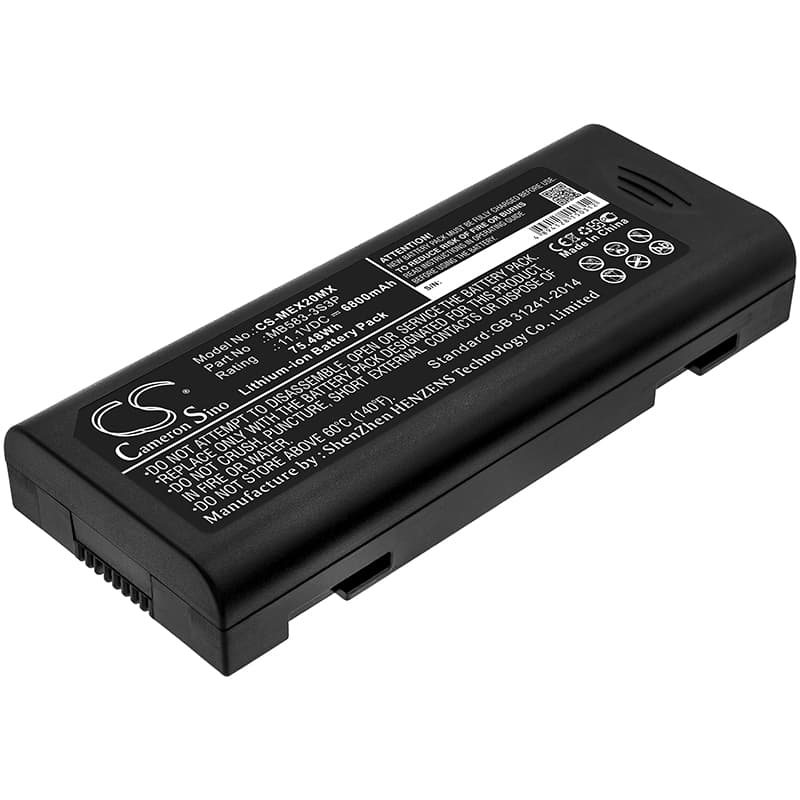

Mindray A5 / Accutorr Series — 11.1V Li-ion Replacement Battery (022-000008-00)
This 11.1V 6800mAh lithium-ion battery replaces the OEM pack in the Mindray A5 patient monitor and compatible Mindray clinical devices. It fits the Accutorr 3, Accutorr 7, Beneheart R12, and over 24 additional models sharing the same voltage rail and connector. Capacity is 6800mAh (75.48Wh) — sourced to match the original specification exactly.
- Multi-model fit across Mindray clinical platforms: The A5, Accutorr 3, Accutorr 7, and Beneheart R12 all draw from the same 11.1V bus and use matching BMS handshake protocols. One battery SKU covers all of them because the cell configuration, connector pinout, and communication signal are identical across this hardware generation.
- Bench tested on actual hardware: We ran this cell through the Mindray power-on self-test sequence and confirmed the BMS handshake completes without a fault flag. The charge IC accepted the cell and progressed through all charge stages to termination.
- Post-installation self-test protocol: After fitting this battery, allow the monitor to complete its full power-on self-test without interruption. Mindray devices run a BMS verification pass at boot — cutting power mid-sequence stores a false battery fault in the system log that persists until a clean reboot cycle clears it.
Mindray A5 alarming low battery immediately after a confirmed full charge
The A5's BMS stores a learned capacity profile from the previous cell. When a new cell is installed, the BMS compares the incoming voltage signature against a threshold calibrated for a conditioned OEM pack. A fresh cell that hasn't completed one full charge-discharge cycle sits outside this threshold, triggering the low battery alarm even at full charge. Run one complete charge cycle — charge to termination, allow normal discharge, charge again — before relying on the battery in a clinical environment. After that cycle the BMS accepts the new cell's profile and the alarm clears.
Monitor will not power on after battery sat in storage
Li-ion cells self-discharge over storage time. If the pack drops below approximately 9V — the Mindray BMS hard cutoff — the protection circuit opens and blocks current flow entirely. The device shows no response because the BMS is preventing a potentially damaging charge event. Connect the monitor to AC mains and leave it on charge for a minimum of 30 minutes before attempting to power on. The charge IC applies a low-rate pre-charge current to recover cells in the 9V–10V range before stepping up to the full charge rate.
