About this replacement

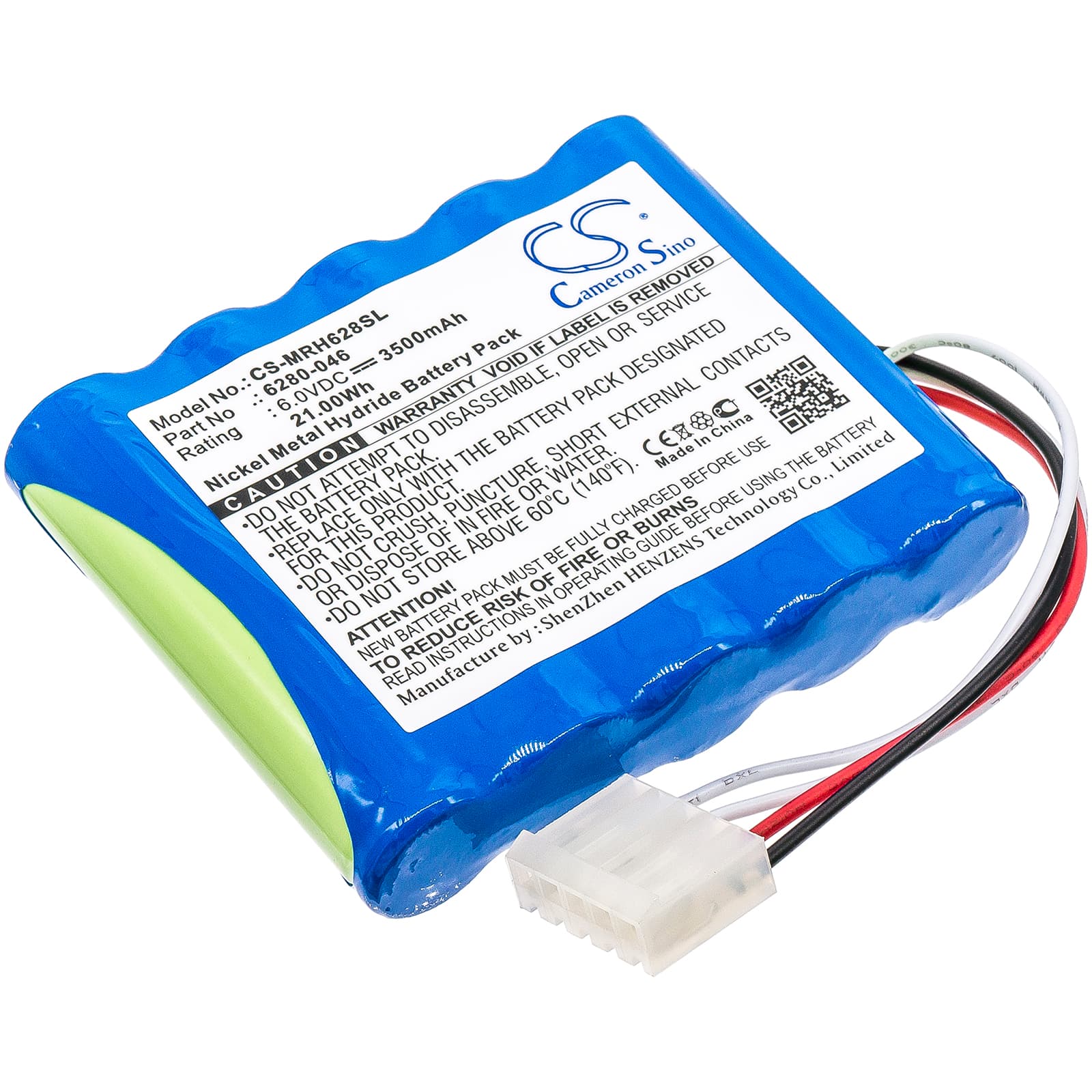

Monarch BBX Series — 6V Ni-MH Replacement Battery (6280-046)
This is a 6V, 3500mAh Ni-MH replacement battery for the Monarch BBX, DBX, PBX, and VBX survey and measurement instruments. It replaces OEM part number 6280-046 and uses the same connector and BMS handshake as the original pack. Capacity figures are taken directly from product specifications — 3500mAh, 21Wh.
- BBX, DBX, PBX, VBX compatibility: These models share a common 6V battery bay, connector pinout, and BMS communication protocol. One pack covers all four instrument lines without modification or adapter.
- Bench tested on actual hardware: We cycled this pack through full charge and discharge on a BBX-series instrument. The BMS completed charge termination correctly using delta-V detection, and cell balancing held within 20mV across the Ni-MH stack under sustained sensor load.
- First-use calibration cycle: After fitting this pack, run a full calibration cycle through the instrument menu before field deployment. The BBX maps battery state during calibration — skipping this step causes premature low-battery warnings during the first measurement session in the field.
BMS lockout after the instrument sat unused in a carry case for months
Ni-MH packs self-discharge at roughly 1–2% per day at room temperature. A BBX left in a case for several months can drop the pack below the BMS recovery threshold — typically around 4.8V for a 6V Ni-MH stack. When voltage falls that low, the BMS enters a protective sleep state and the instrument will not power on or accept a charge. Place the battery on a dedicated Ni-MH charger with a reconditioning or trickle mode to bring cell voltage back above the recovery threshold before reinserting it into the instrument.
Instrument shuts down mid-measurement when probe or sensor module initialises
Probe and sensor modules on the BBX series draw a short but sharp current spike at initialisation — enough to cause a voltage sag that trips the BMS overcurrent cutoff on a degraded or cold pack. A new Ni-MH pack can still trip this threshold if cell temperature is below 10°C, because internal resistance rises sharply in cold conditions. Warm the instrument to room temperature before powering on in cold environments. If the shutdown persists at room temperature, check that the battery contacts are clean and seated — poor contact increases effective resistance and amplifies the sag at the same load.
