About this replacement

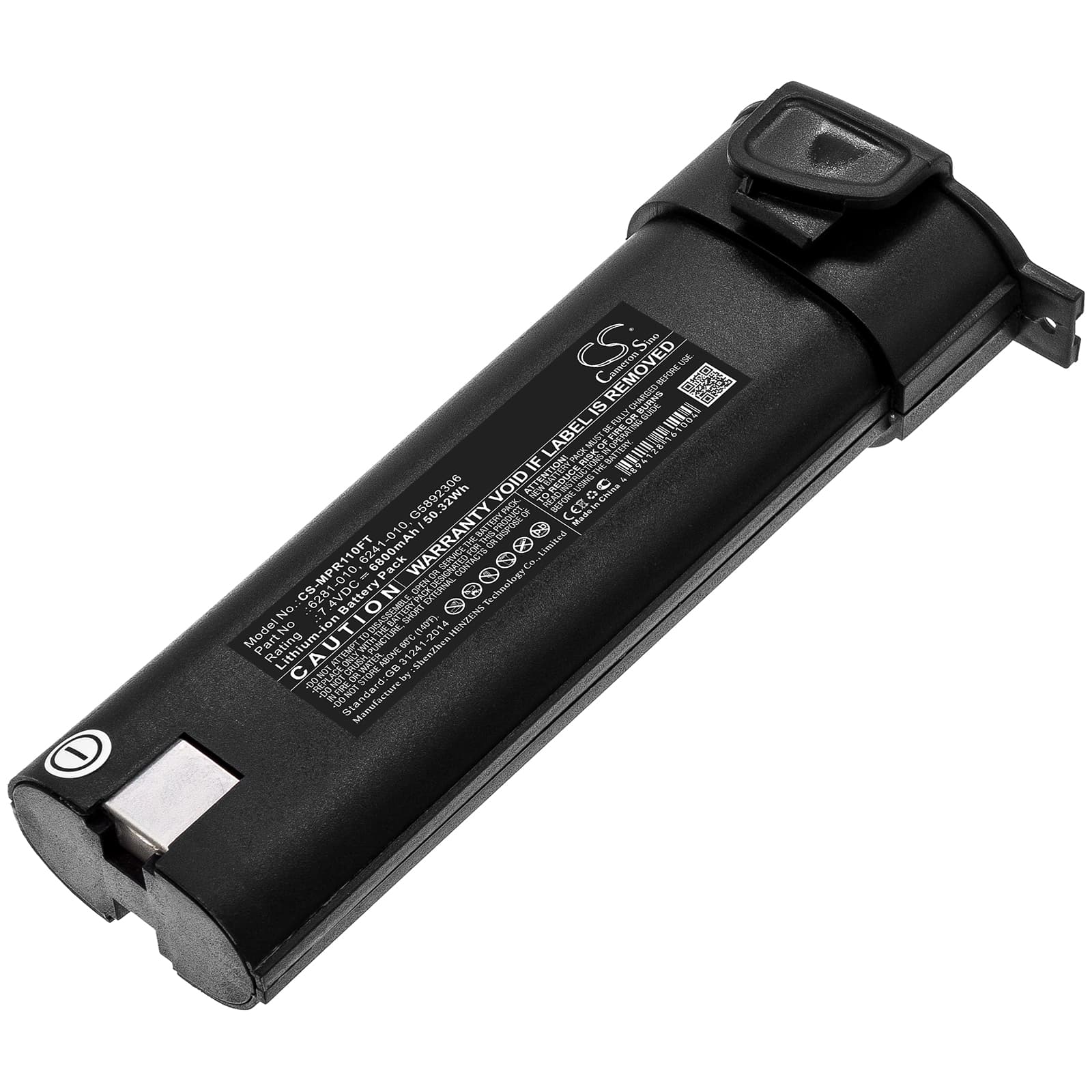

Monarch Nova-Pro Stroboscopes — 7.4V Li-ion Replacement Battery (6281-010)
This 7.4V, 6800mAh Li-ion battery replaces the original pack in Monarch Nova-Pro Stroboscopes, Nova-Pro 100 LED Stroboscopes, and Nova-Pro Tachometers. All three models share the same 6281-010 battery housing, connector orientation, and BMS communication protocol. Capacity is 6800mAh (50.32Wh) — sourced to match the original cell specification.
- Nova-Pro and Nova-Pro 100 LED shared platform: Both models run the same 7.4V power rail, use the same physical battery bay, and negotiate charge state through the same BMS handshake. A battery that fits one will seat and communicate correctly in the other — no adapter or firmware change required.
- Bench tested on actual hardware: We cycled this pack through strobe trigger events and sustained flash-rate loads. The BMS held charge state without dropping into protection mode during high-frequency flash bursts, and cell balancing completed correctly across both discharge and charge cycles.
- Post-install calibration before field deployment: After fitting this battery, run a full calibration cycle through the Nova-Pro instrument menu before taking it out to site. The unit maps battery state during calibration — skipping this step causes premature low-battery warnings on your first measurement session, even when the pack is near full charge.
Nova-Pro BMS lockout after the unit sat unused in a carry case for months
Li-ion cells self-discharge during storage. If the Nova-Pro sat in a case for several months, the pack voltage can drop below the BMS recovery threshold — typically around 2.5V per cell, or roughly 5.0V across a 2S pack. When this happens, the BMS enters a deep-protection state and the charger sees no load, so it stops attempting to charge. To recover the pack, connect it to the charger and leave it for 30–45 minutes without disconnecting — some chargers will trickle at low voltage before the BMS re-initialises. If the pack recovers, charge it fully before reinstalling.
Readings drifting or logging sessions resetting mid-capture
During sustained strobe logging sessions, the Nova-Pro draws continuous current across both the flash circuit and the onboard data processor simultaneously. If cell internal resistance has increased — common in aged packs — voltage sags under this combined load, causing the instrument to momentarily drop below its operating threshold. The unit interprets this as a power fault and resets the active logging session. Check pack voltage under load using a multimeter at the battery contacts: a healthy cell should hold above 7.0V during active flash operation. If voltage sags below 6.8V under load, the pack needs replacement.
