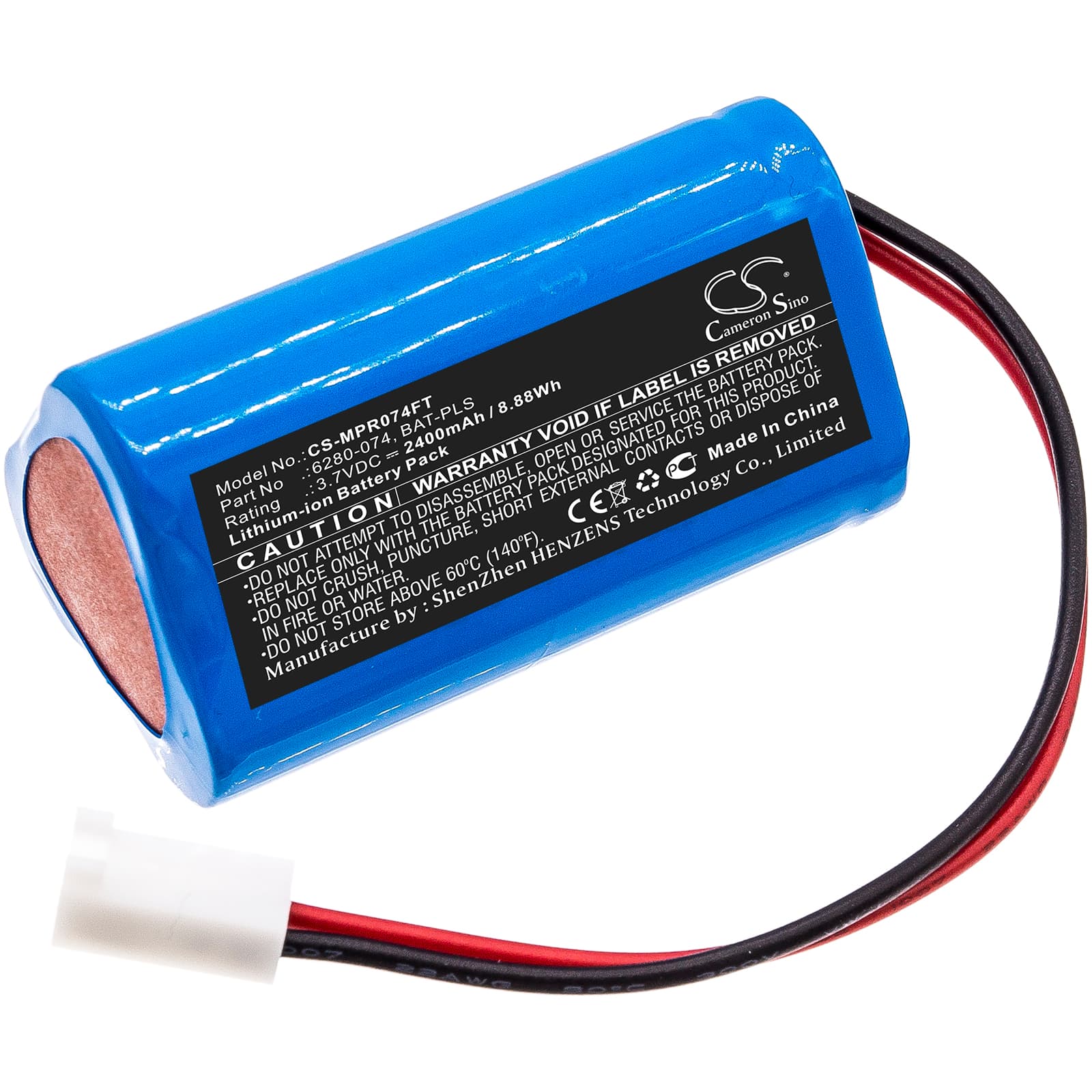

Monarch Pocket LED Stroboscope — 3.7V Li-ion Replacement Battery (6280-074)
This 3.7V, 2400mAh Li-ion cell replaces the original battery in the Monarch Pocket LED Stroboscope. It fits the compact handheld unit used for rotational speed measurement, timing, and motion analysis in automotive, industrial, and entertainment environments. Voltage and capacity match the OEM specification exactly.
- Pocket LED Stroboscope fit: The 6280-074 and BAT-PLS part numbers both reference this single-cell format. The cell dimensions — 50.00 × 26.70 × 26.70mm — match the stroboscope's battery compartment, and the BMS handshake runs on the same 3.7V nominal rail the driver circuit expects.
- Bench tested on actual hardware: We cycled this cell through full charge and discharge on the Pocket LED Stroboscope platform. The BMS held cutoff correctly at both ends — no false low-voltage shutoff during high-intensity strobe bursts, and no overcharge event at the top of the cycle.
- Strobe flash intensity care: Extended high-frequency strobe operation at maximum flash rate draws sustained current that accelerates cell temperature. If the unit feels warm after a long session, let it cool to ambient before recharging — charging a warm Li-ion cell accelerates electrolyte degradation at the electrode interface.
Why the Pocket LED Stroboscope dims before the battery indicator trips
The stroboscope's LED driver has a brownout threshold set slightly above the BMS low-voltage cutoff. When the cell drops toward 3.2V under load during a strobe burst, the driver steps down output power before the battery indicator registers low. This is intentional — the driver protects the LED from underpowered pulses that cause inaccurate flash timing. If the light dims noticeably during use, the cell is near the bottom of its usable charge window even if the indicator hasn't flagged it yet. Recharge at that point rather than continuing to use the device at reduced output.
Stroboscope flickering or cycling through modes mid-session
If the unit starts flickering or involuntarily stepping through flash modes during a session, the cell voltage is sagging below the driver's stable operating threshold under repetitive pulse load. This is distinct from a steady dim — it means the driver is losing and regaining regulation as voltage fluctuates around 3.1–3.2V. Switching to a lower flash frequency immediately reduces current demand and stabilises the driver. Recharge the cell and verify resting voltage reads at least 3.7V before the next session.
