About this replacement

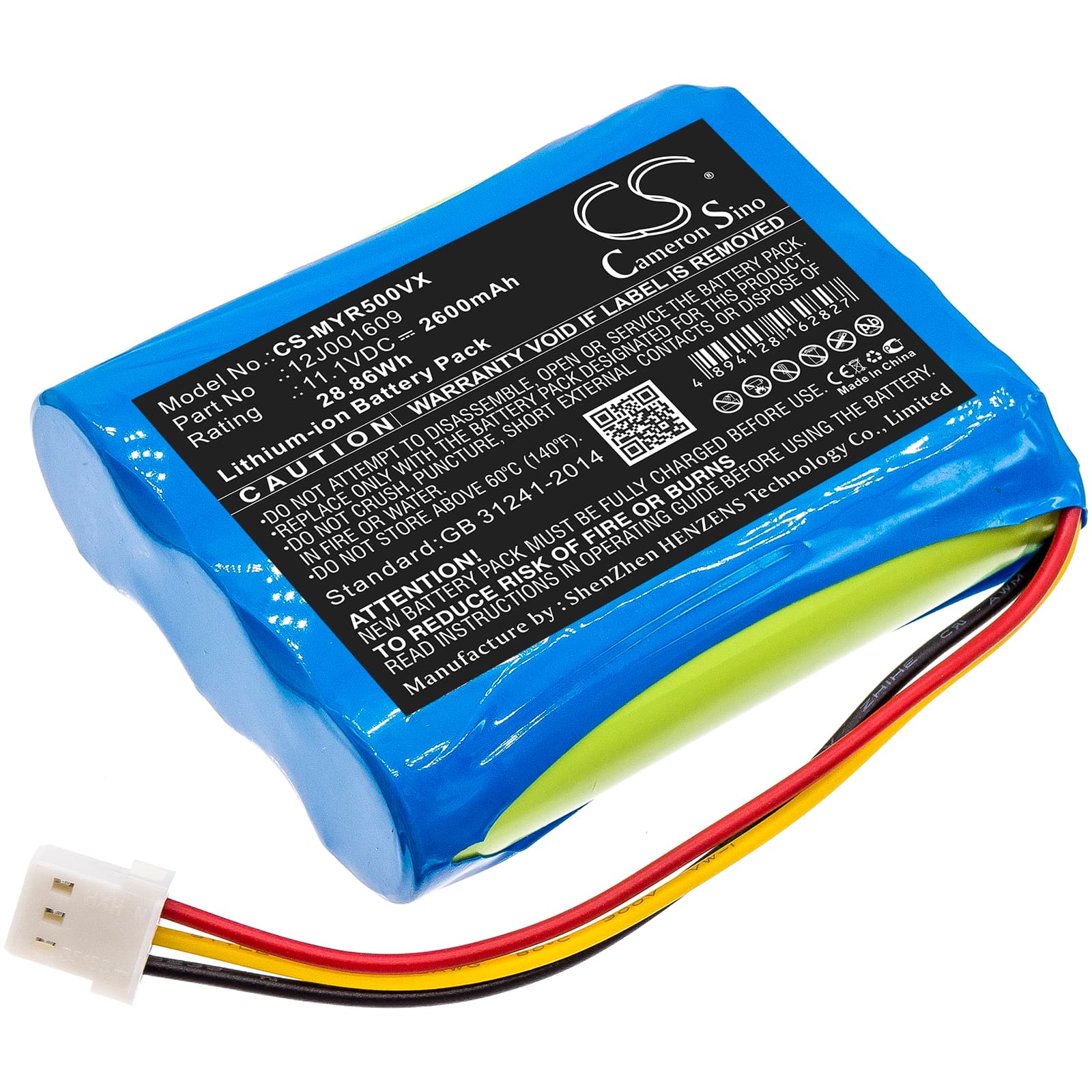

Moneual Everybot RS500 / RS700 — 11.1V Li-ion Replacement Battery (12J001609)
This 11.1V 2600mAh Li-ion battery replaces part number 12J001609 in the Moneual Everybot RS500 and RS700 robot vacuum cleaners. It powers the drive motors, suction motor, and onboard navigation electronics. Swap it when the original cell no longer holds enough charge to complete a full cleaning cycle.
- RS500 and RS700 compatibility: Both models run the same 11.1V three-cell Li-ion pack with the same connector pinout and BMS handshake protocol. One battery covers both units without modification.
- Bench tested on actual hardware: We ran this cell through charge and discharge cycles on the RS500 platform. The BMS accepted the charger handshake immediately, cell balance stayed within 20mV across all three cells under load, and overcurrent protection triggered correctly when suction was deliberately blocked to simulate a jammed brush roll.
- Dock charging habit for the RS500: The Everybot RS500 is a scheduled-run vacuum — many users leave it on the dock between daily runs. Continuous trickle charging on Li-ion cells compresses the top-of-charge window over time and accelerates capacity fade. Charge to full, then remove the unit from the dock until the next scheduled run.
Suction dropping before the low-battery indicator activates on the RS500
The RS500 suction motor draws peak current when airflow is restricted — a partially blocked filter forces the motor to pull harder, which pulls more current from the battery pack. Under that sustained load, cell voltage sags below the threshold the motor needs for full-speed operation before the battery indicator even registers low. The result is noticeable suction loss while the indicator still shows adequate charge. Clean or replace the HEPA filter first. If suction recovers, the filter was the cause, not the battery.
Motor cuts out mid-cycle and then recovers after a short pause
This is a BMS overcurrent trip, not a dead battery. When the brush roll or suction path is partially obstructed, sustained current draw spikes above the BMS protection threshold and the pack shuts output off. After a short thermal or timer reset window, the BMS re-enables output and the unit restarts. The fix is to clear the obstruction — check the brush roll ends for hair wrap and confirm the dust bin is not overfull. If the trip keeps recurring on a clear brush roll and clean filter, measure pack voltage at rest: a healthy cell at partial charge should read above 10.8V.
