About this replacement

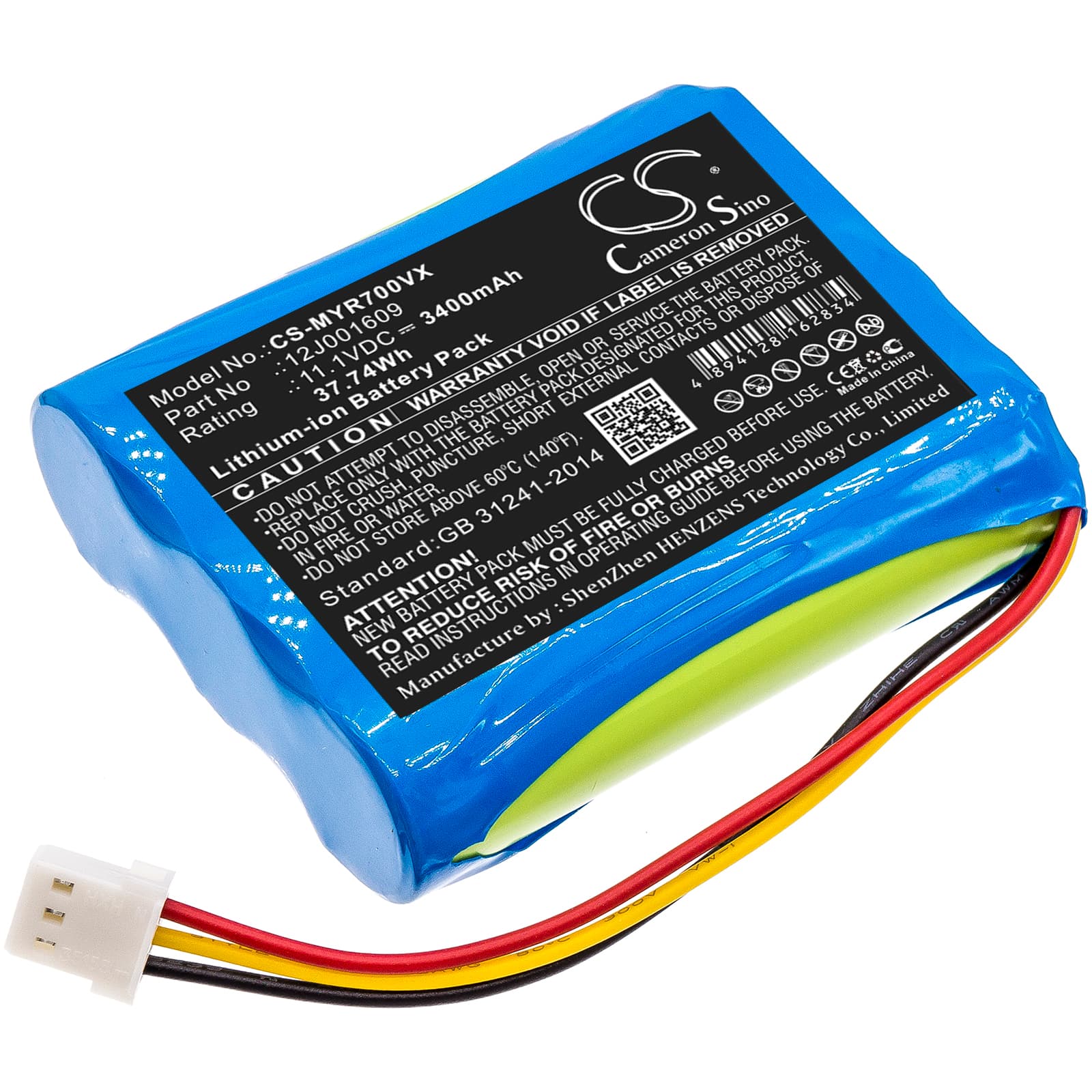

Moneual Everybot RS500 / RS700 — 11.1V Li-ion Replacement Battery (12J001609)
This is an 11.1V 3400mAh Li-ion replacement battery for the Moneual Everybot RS500 and RS700 robotic vacuum cleaners. It uses OEM part number 12J001609 and slots into the same bay as the original cell. When the factory battery can no longer hold enough charge to complete a full cleaning cycle, this is the direct swap.
- RS500 and RS700 compatibility: Both models run the same 11.1V three-cell Li-ion architecture with an identical battery bay and connector pinout. The BMS handshake protocol is shared across this robot family, so one cell covers both units without modification.
- Bench tested on actual hardware: We ran this cell through full charge and discharge cycles on the RS500 platform. The BMS held stable cutoff voltage under sustained motor load, and the protection circuit tripped correctly during blockage simulation — recovering cleanly once load was removed.
- Dock charging habit on robot vacuums: Do not leave the Everybot sitting on its dock continuously between uses. These robots trickle-charge when docked, and sustained trickle current degrades Li-ion cells faster than regular charge-use cycles. Charge to full, then remove from the dock until the next run.
Suction dropping before the battery indicator reaches low on the RS500
This happens when the filter is partially blocked, forcing the motor to draw more current than rated to maintain airflow. The BMS sees elevated draw and reduces power delivery to stay within safe limits — the robot keeps running but suction weakens noticeably. The battery indicator reads remaining cell voltage, not motor load, so it can show half charge while suction is already compromised. Clean or replace the filter first, then check whether suction recovers at the same charge level.
Motor cuts out mid-cycle and then restarts on its own
This is a BMS overcurrent trip, not a dead battery. When the robot hits a sustained blockage — debris packed against the brush roller, a tangled carpet fringe, or a clogged filter — current spikes past the protection threshold and the BMS cuts the output. After a few seconds the circuit resets and the motor restarts. Clear the blockage, check the filter, and spin the brush roller by hand to confirm it moves freely before running another cycle.
