About this replacement

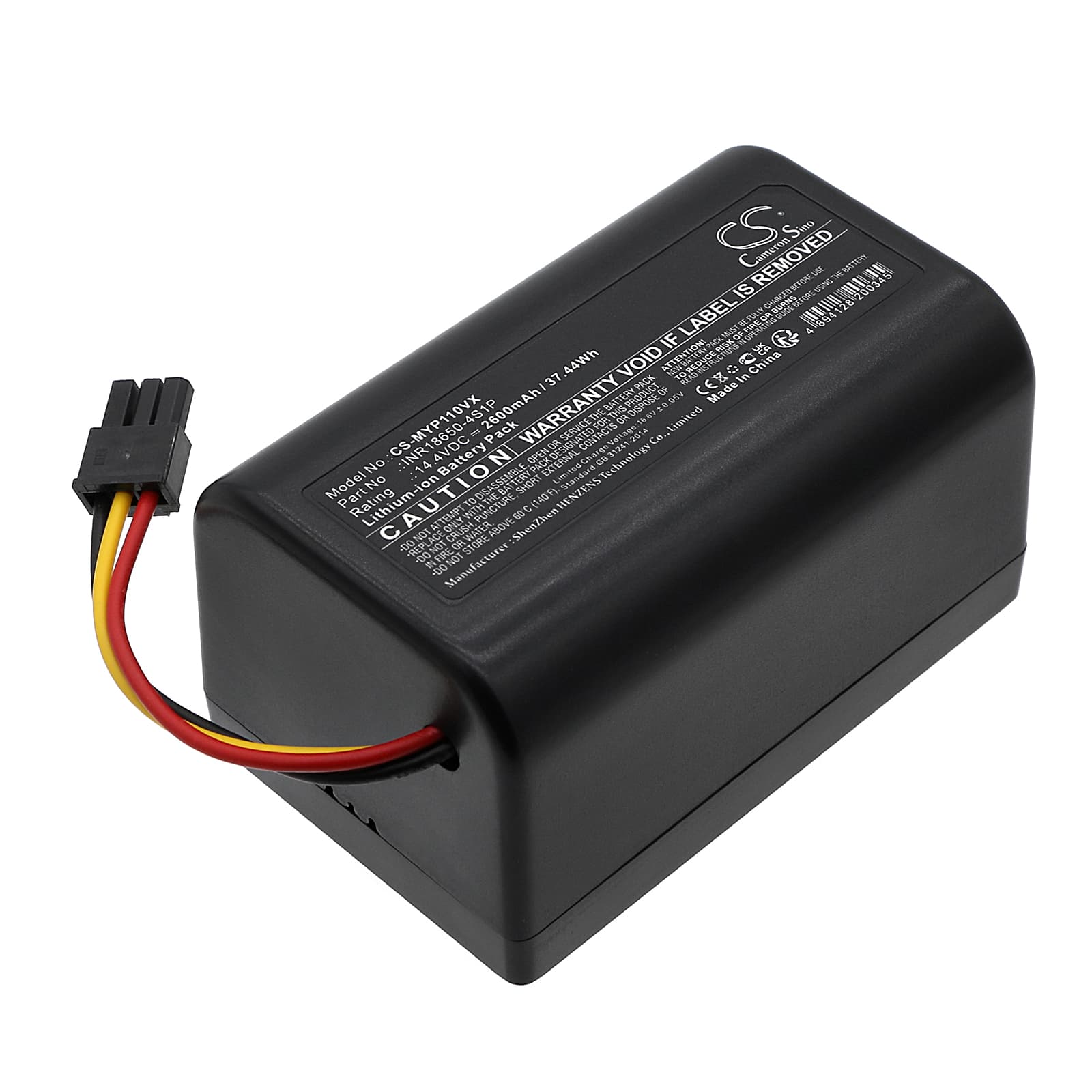

Moneual P11 — 14.4V Li-ion Replacement Battery (INR18650-4S1P)
This is a 14.4V 2600mAh Li-ion battery pack for the Moneual P11 robotic vacuum cleaner. It replaces OEM part INR18650-4S1P and fits the P11 directly. The 4S1P cell configuration matches the original pack's voltage rail and connector.
- P11 platform fit: The Moneual P11 runs a 4-series cell arrangement to hold the 14.4V nominal rail the drive motors and suction fan require. Swapping to a mismatched voltage causes the BMS to reject charge or the vacuum to cut out immediately on startup.
- Bench tested on actual hardware: We ran this pack through charge and discharge cycles on the P11 platform. The BMS handshake completed correctly, the vacuum's charge indicator responded normally, and the overcurrent protection tripped at expected thresholds during sustained high-draw suction testing.
- Dock charging habit on the P11: Do not leave the P11 sitting on the charging dock continuously between uses. Constant trickle charging accelerates capacity fade in Li-ion packs at this cell count. Charge to full, then remove the vacuum from the dock until the next cleaning session.
Suction dropping before the P11 battery indicator shows low
The P11's suction fan motor draws significantly more current when the filter is partially blocked or the brush roll is restricted. That elevated draw causes the cell voltage to sag under load even when the pack still holds a nominal charge. The BMS reads the sag as a low-voltage event and reduces power output to protect the cells. Clean the filter and check for brush roll blockages first — if suction recovers fully after that, the battery is not the problem.
Motor cutting out mid-clean and then recovering after a short pause
This is a BMS overcurrent trip, not a dead battery. When the P11 sustains restricted airflow — a clogged filter, tangled brush roll, or blocked intake — the motor pulls above the BMS overcurrent threshold and the pack shuts output. After a short thermal or timer reset, the BMS re-enables and the vacuum starts again. The fix is to clear the restriction: remove the filter, tap it clean, and inspect the brush roll. If the cutout stops after that, the pack is functioning correctly and the overcurrent threshold is set to around 5–6A on this cell configuration.
