About this replacement

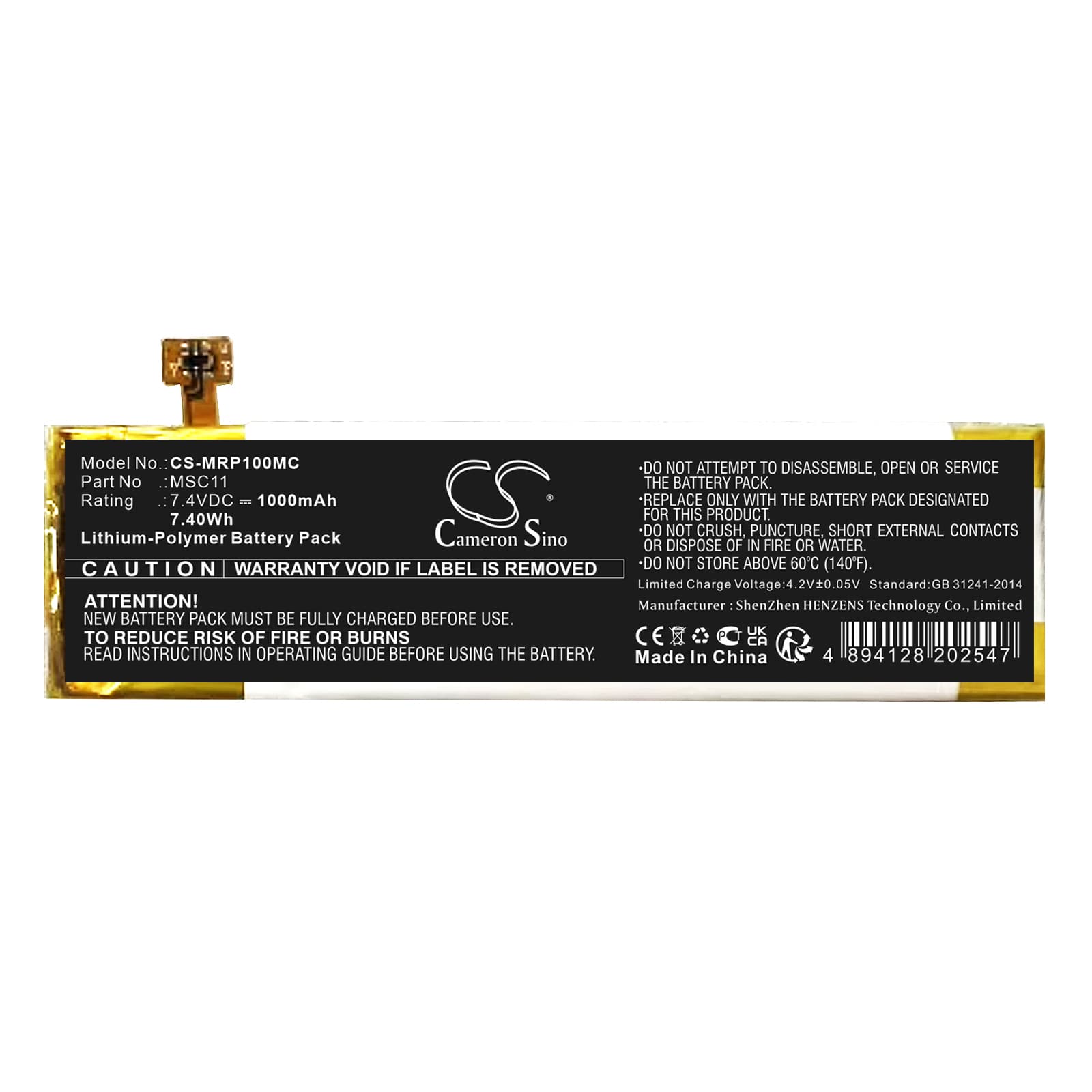

Morange M1 Pro / M1 Pro Vlog Pocket Gimbal — 7.4V Li-Polymer Replacement Battery (MSC11)
This is a 7.4V, 1000mAh Li-Polymer replacement battery for the Morange M1 Pro and M1 Pro Vlog Pocket Gimbal Camera. It slots in where the original MSC11 battery sits, restoring full motor drive to all three stabilisation axes. Capacity is 1000mAh (7.4Wh), matching the original specification.
- M1 Pro and M1 Pro Vlog Pocket compatibility: Both models share the same 7.4V power rail, MSC11 connector footprint, and BMS handshake protocol — one battery covers both variants without modification.
- Bench tested on actual hardware: We ran the battery through full 3-axis stabilisation cycles including rapid pan and tilt sequences. The BMS held voltage through combined motor peak draws without triggering overcurrent cutoff.
- Balance before first power-on after swap: Balance the gimbal with your camera attached before switching on after a battery change. An unbalanced load forces constant motor correction, which drives sustained high current draw and can trip the BMS during aggressive moves.
Gimbal not initialising correctly after battery swap
The M1 Pro runs an IMU self-calibration sequence at startup that requires stable, uninterrupted voltage from the moment you power on. If the battery connection is loose or the cell voltage is below approximately 7.0V, the IMU can fail mid-sequence, leaving the gimbal in a locked or drifting state. Fully seat the battery before powering on. If the gimbal still fails to initialise, confirm resting cell voltage is above 7.0V with a multimeter before trying again.
Stabilisation drift appearing before the battery indicator shows low
The M1 Pro's battery indicator reads state of charge, not real-time voltage under load. When all three brushless motors draw simultaneously during complex moves, voltage sags briefly below the threshold the motors need for accurate torque control — even if the indicator still shows mid-charge. The result is visible drift or sluggish axis response before any low-battery warning appears. If you notice stabilisation degrading during normal use, that sag is the cause; swapping to a freshly charged battery will confirm it immediately.
