About this replacement

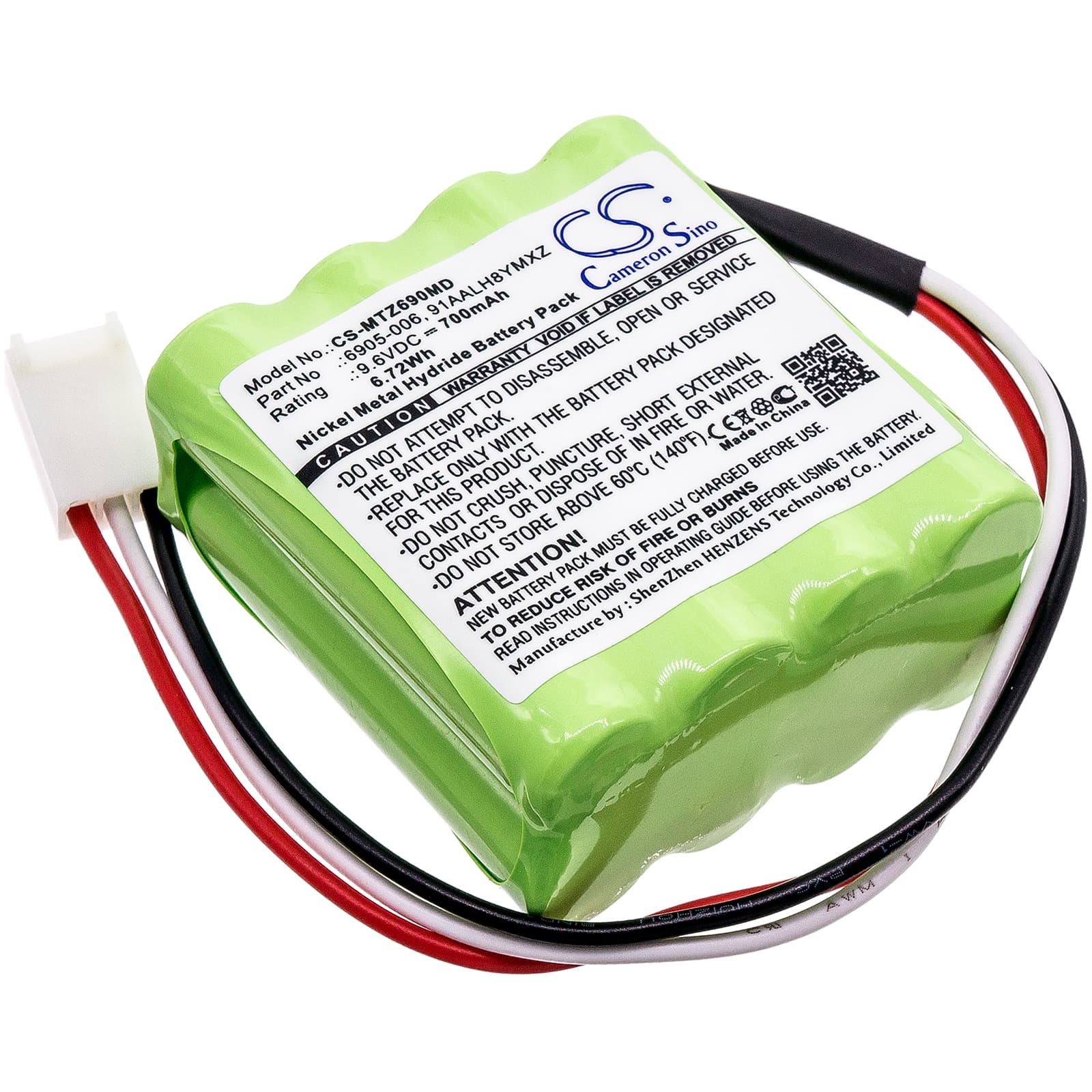

Morita DentaPort ZX Series — 9.6V Ni-MH Replacement Battery (6905-006)
This is a 9.6V, 700mAh Ni-MH replacement battery for the Morita DentaPort ZX, DentaPort Root ZX, and DP-ZX II apex locators. These instruments measure working length during root canal procedures and require a stable power source to maintain accurate apical foramen detection. OEM part number 6905-006 confirms fit across the ZX platform.
- DentaPort ZX platform compatibility: The ZX, Root ZX, and DP-ZX II share the same 9.6V Ni-MH cell configuration, connector pinout, and BMS handshake protocol. All three models accept this battery without modification.
- Bench tested on actual hardware: We cycled this battery through the DentaPort ZX power-on self-test sequence and confirmed the BMS completed its voltage verification pass without fault codes. Charge acceptance matched expected Ni-MH charge curve at the 700mAh rated capacity.
- Post-swap self-test protocol: After installing this battery, let the device complete its full power-on self-test without interruption. The DentaPort ZX runs a BMS verification at every startup — cutting power during that sequence generates a battery fault flag that persists until the next clean reboot.
Low battery alarm on the DentaPort ZX after a confirmed full charge
The ZX platform sets its low-battery threshold against a calibrated cell profile. A new Ni-MH cell hasn't yet established the charge curve the BMS expects, so the device reads available capacity conservatively on the first cycle. This is not a fault — it resolves after one complete charge-discharge cycle. Run the battery to the automatic shutoff point, then charge it fully before returning the device to clinical use. After that conditioning cycle, the BMS reads cell voltage accurately and the alarm clears.
DentaPort ZX won't power on after the replacement battery sat unused
Ni-MH cells self-discharge during storage. If the cell drops below the BMS recovery threshold — typically around 8.4V for a 9.6V Ni-MH pack — the device will not attempt a boot sequence at all. Connect the unit to the charger for a minimum of 15 minutes before pressing the power button. This allows the charge IC to bring the pack above the BMS recovery floor. If the device still won't boot after 30 minutes on charge, check that the charger output voltage is reaching 12V at the connector before assuming a cell fault.
