About this replacement

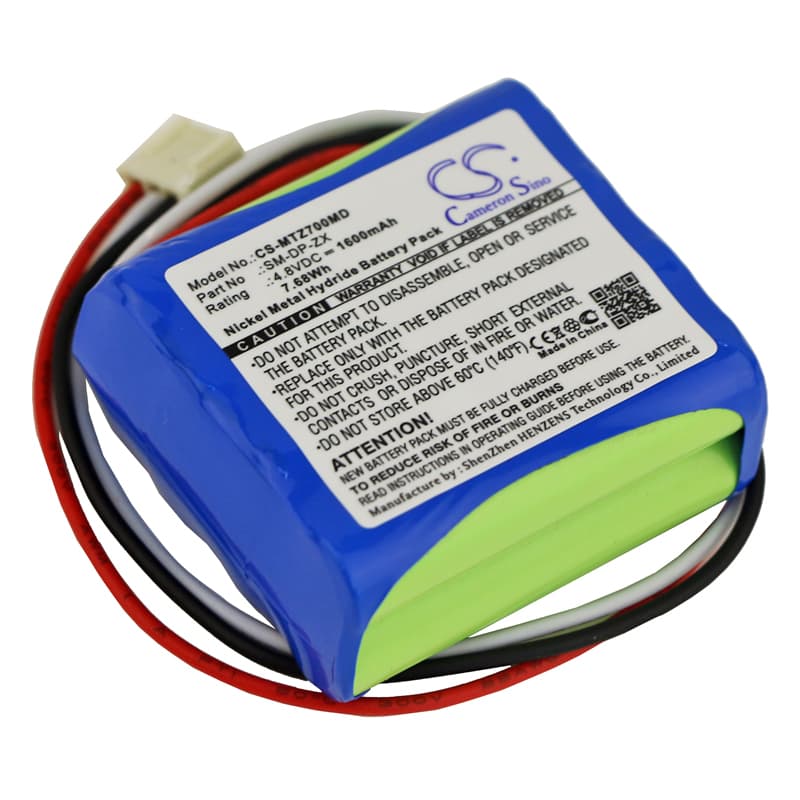

Morita SM-DP-ZX / DP-ZX — 4.8V Ni-MH Replacement Battery (GPRHCD9QN014)
This is a 4.8V 1600mAh Ni-MH replacement battery for the Morita SM-DP-ZX and DP-ZX cordless dental handpiece systems. It matches the OEM part number GPRHCD9QN014 and fits the original battery bay without modification. Voltage and cell configuration are matched to the handpiece's onboard BMS expectations.
- SM-DP-ZX and DP-ZX platform fit: Both models share the same 4.8V four-cell Ni-MH architecture and identical connector pinout. The BMS on each unit reads cell voltage across the same reference points, so one battery serves both handpiece variants without firmware or hardware differences.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on a calibrated test rig and confirmed the BMS accepted the cell without fault codes on the second full cycle. On the first cycle, the charge IC applied a conservative current limit — normal behaviour with a new Ni-MH cell entering the BMS learn window.
- Post-installation self-test requirement: After fitting this battery, allow the handpiece to complete its full power-on self-test without interruption. The SM-DP-ZX runs a BMS verification sequence at startup. Interrupting it mid-cycle causes a latched false battery fault that will not clear until the next complete reboot and full charge cycle.
Why the SM-DP-ZX alarms low battery immediately after a confirmed full charge
The SM-DP-ZX BMS stores a state-of-health profile calibrated to the OEM cell's internal resistance. A new replacement cell has a slightly different resistance fingerprint, even at full charge. The BMS interprets this mismatch as a degraded cell and triggers the low battery alarm before the cell has completed its first learn cycle. Running one full charge-to-discharge cycle allows the BMS to update its internal thresholds and clear the alarm permanently. After that cycle, the handpiece reads battery state accurately.
Handpiece not powering on after the replacement cell sat in storage
Ni-MH cells self-discharge at roughly 1–3% per day in storage. If this battery shipped or sat on a shelf for several weeks before installation, its resting voltage may have dropped below the SM-DP-ZX's BMS recovery threshold — typically around 3.6V for a 4-cell pack. The BMS will refuse to initiate a charge cycle on a cell it reads as deeply discharged to protect against thermal events. Place the battery on charge and leave it undisturbed for a full charge cycle; most Ni-MH chargers apply a trickle recovery current that brings the pack back above the BMS floor voltage within the first 30 minutes, after which normal charging resumes automatically.
